Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Service and Repair
>>
Removal and Installation Steps
>>
Rheostat
Rheostat

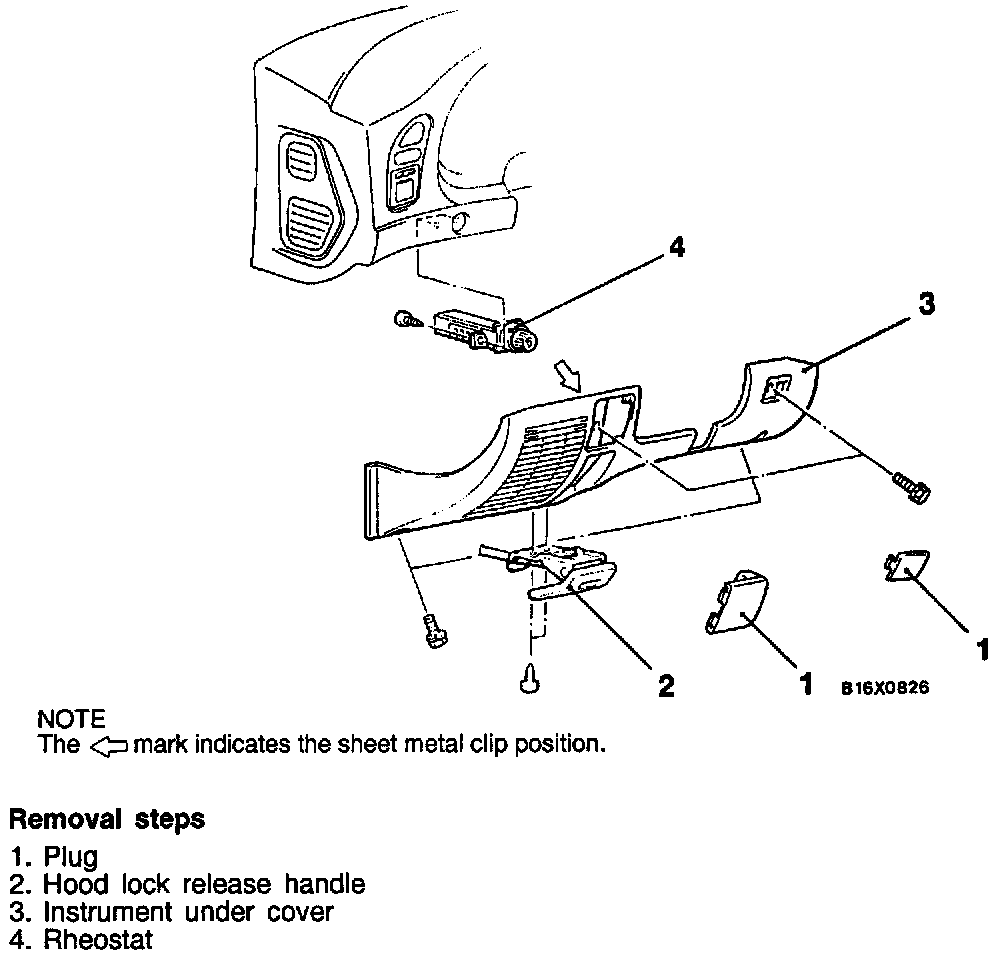

Rheostat - Removal And Installation:
REMOVE
1.
Plug
2.
Hood lock release handle
3.
Instrument under cover
4.
Rheostat
INSTALL
1.
Rheostat
2.
Instrument under cover
3.
Hood lock release handle
4.
Plug
