Rear Combination Light

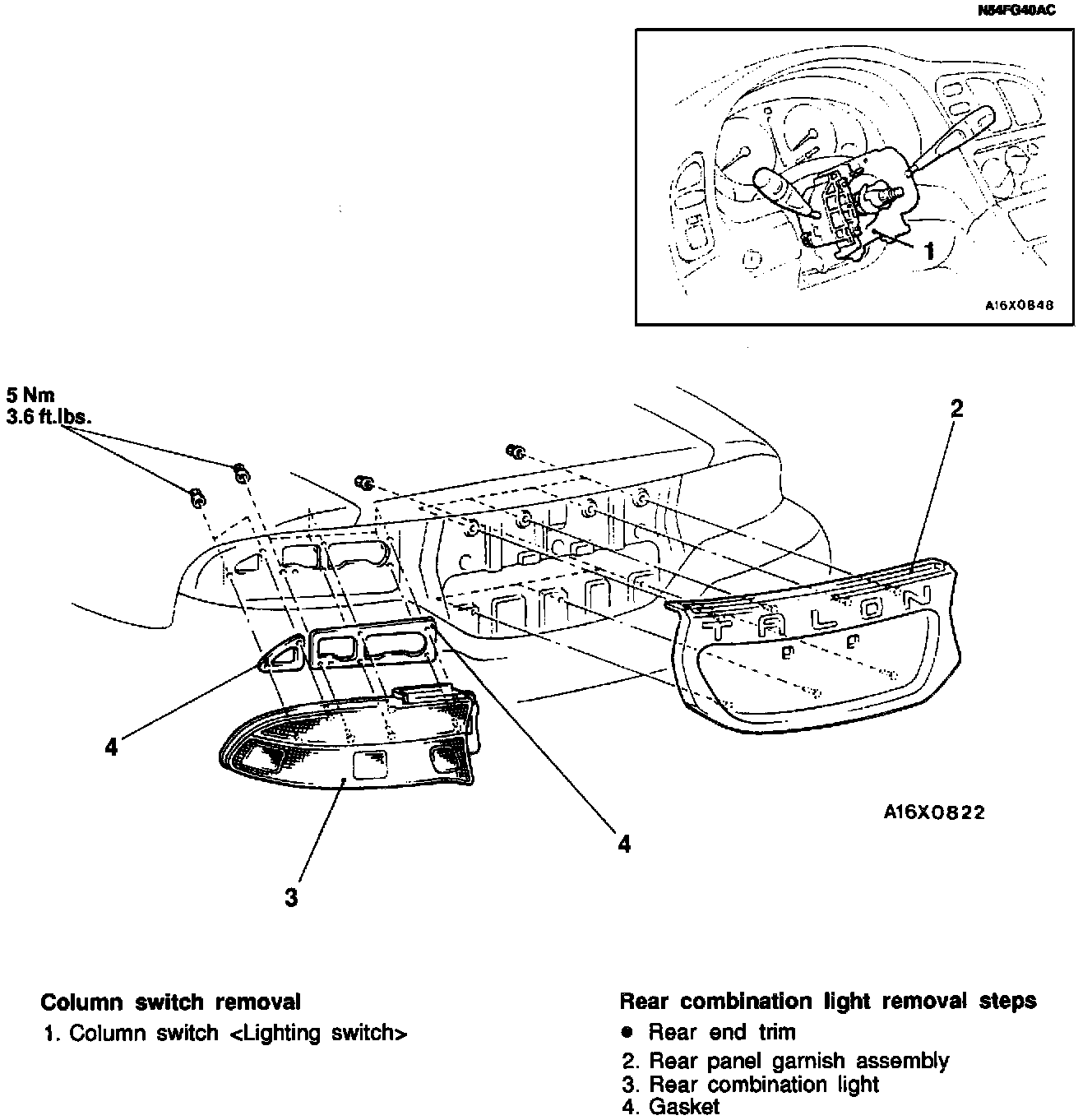

Rear Combination Light - Removal And Installation:

CAUTION: Before removal of air bag module and clock spring, refer to SRS Service Precautions and Air Bag Module and Clock Spring.

REMOVE
Column Switch
1. Column Switch, Service and Repair

Rear Combination Light
- Rear end trim
2. Rear panel garnish assembly
3. Rear Combination Light
4. Gasket

INSTALL
Column Switch
1. Column Switch, Service and Repair

Rear Combination Light
2. Gasket
3. Rear Combination Light
4. Rear panel garnish assembly
- Rear end trim
