Fog/Driving Lamp Bulb: Service and Repair

Bulb Removal:

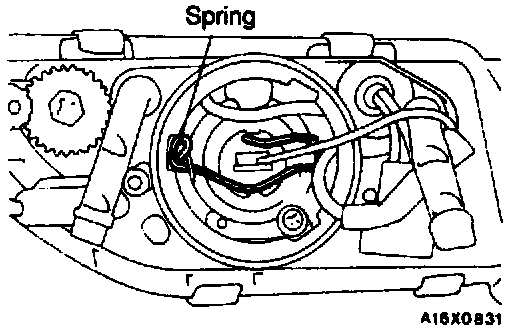

Remove the bulb attachment spring and pull out the bulb.

CAUTION: Do not touch the surface of the bulb with hands or dirty gloves. If the surface does become dirty, clean it with alcohol or thinner, and let it dry thoroughly before installing
