Center Mounted Brake Lamp: Service and Repair

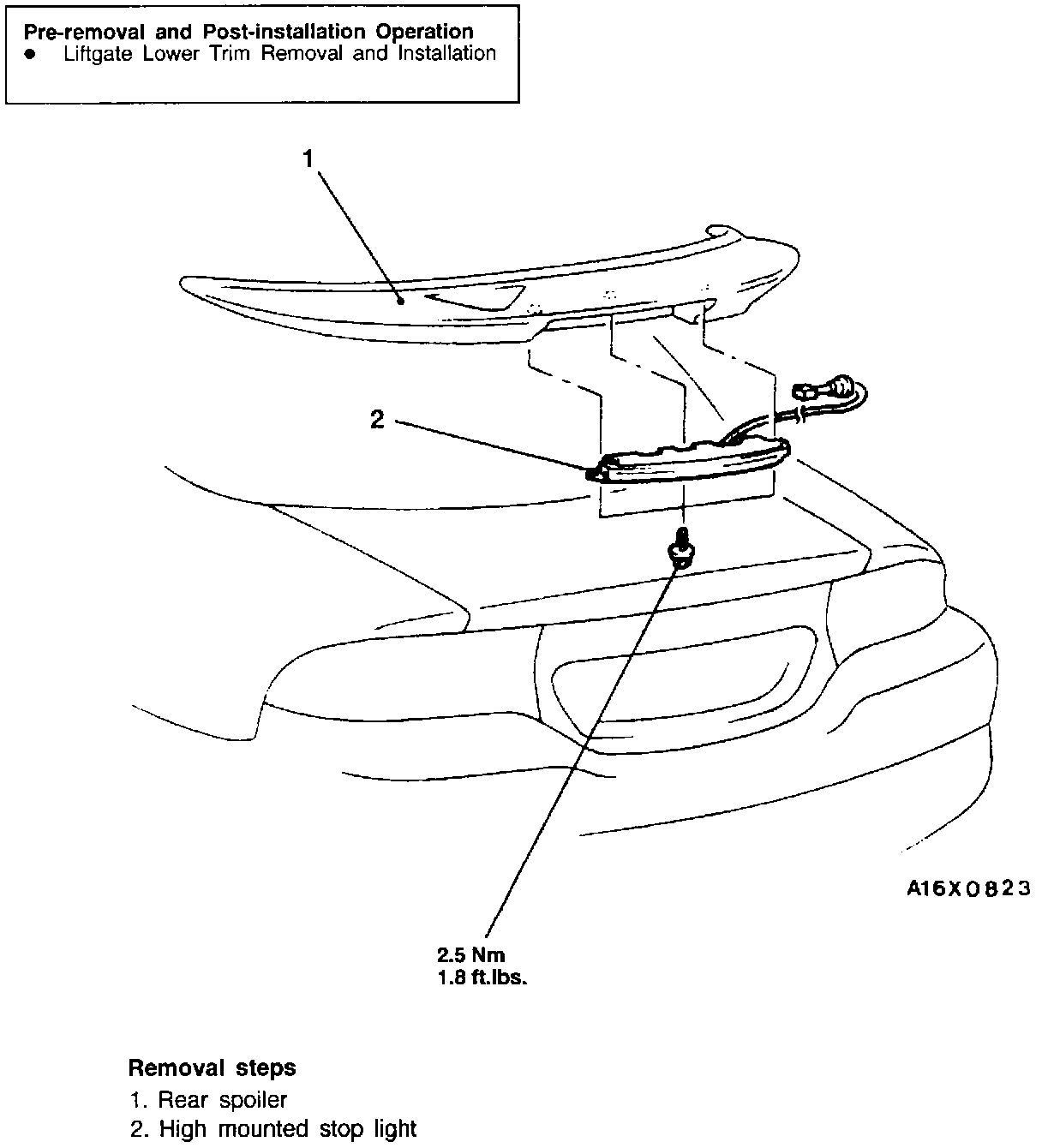

High Mounted Stop Light - Removal And Installation:





Pre-Removal
- Liftgate lower trim.

REMOVE
1. Rear spoiler
2. High mounted stop light

INSTALL
1. High mounted stop light
2. Rear spoiler

Post-Installation
- Liftgate lower trim.
