Fuel Gauge Unit Float Height
To check, remove the fuel gauge unit from the fuel tank.Fuel Gauge Unit Float Height

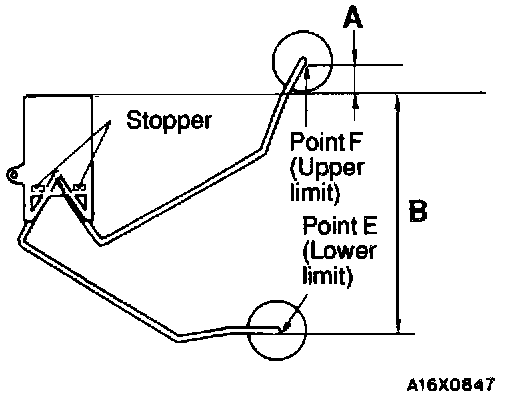

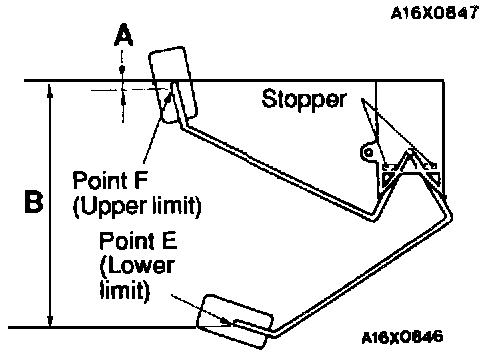

Move the float and measure the height A at point F (highest) and B at point E (lowest) with float arm touching stopper
Standard value:
Fuel Gauge Unit Inspection:
Main
A: 10.4 mm (0.41 ± 0.12 in.)
B: 119.5 mm (4.7 ± 0.12 in.)
Fuel Gauge Unit Inspection:
Sub
A: 3.0 ± 3 mm (0.12 ± 0.12 in.)
B: 126.7 ± 3 mm (5.O ± 0.12 in.)
