Fuel Gauge Unit Resistance

Fuel Gauge Unit Resistance:

To check, remove the fuel gauge unit from the fuel tank.

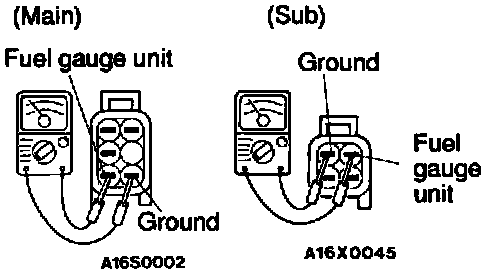

1. Check that resistance value between the fuel gauge terminal and ground terminal is at standard value when the fuel gauge unit float is at point F (highest) and point E (lowest).
Standard value:
Main
POINT F: 2 ± 1 Ohm
POINT E: 56.9 ± 1 Ohm
Sub
POINT F: 2 ± 1 Ohm
POINT E: 50.1 ± 1 Ohm
2. Check that resistance value changes smoothly when the float moves slowly between point F (highest) and point E (lowest.)
