Cigarette Lighter: Service and Repair

Cigarette Lighter - Removal And Installation:

CAUTION: Before removal of air bag module and clock spring, refer to SRS Service Precautions and Air Bag Module and Clock Spring.

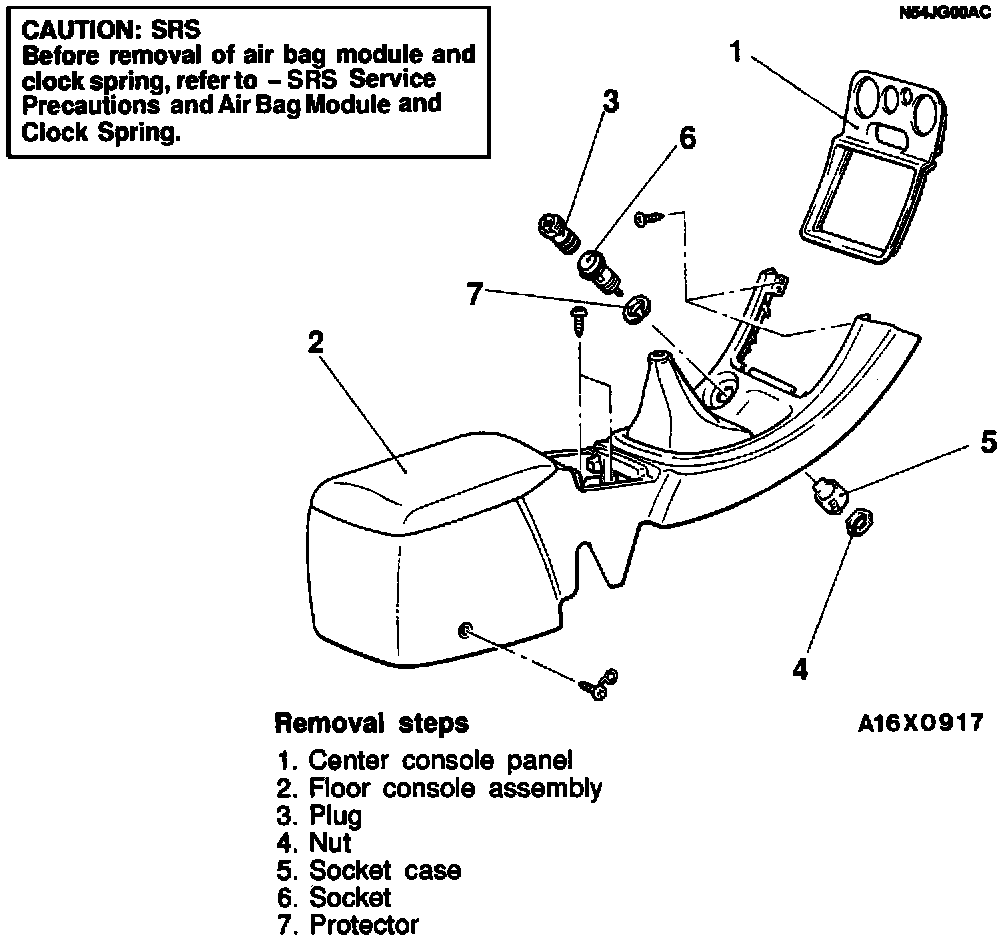

REMOVE
1. Center console panel
2. Floor console assembly
3. Plug
4. Nut
5. Socket Case
6. Socket
7. Protector

INSTALL
1. Protector
2. Socket
3. Socket Case
4. Nut
5. Plug
6. Floor console assembly
7. Center console panel
