Blower Motor: Service and Repair

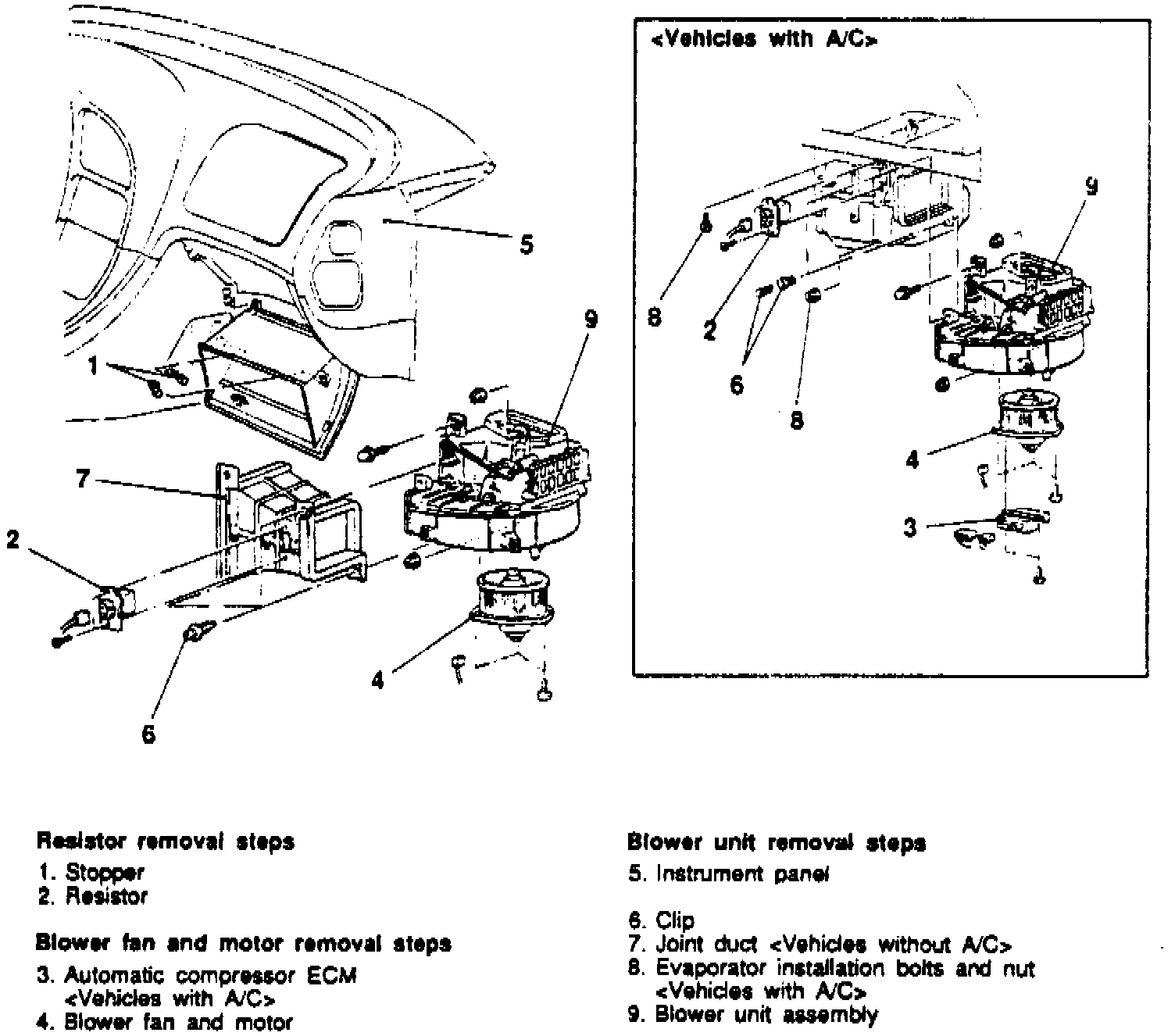

Fig. 16 Blower Motor Replacement:

Remove BLOWER MOTOR in numbered sequence, noting the following:
1. Disconnect battery cable.
2. Clean blower case before installation.
3. Reverse procedure to install.
