Spark Plug Cable Resistance Check

Spark Plug Cable Resistance Check:





Measure the resistance of the all spark plug leads.
1. Check cap and coating for cracks.

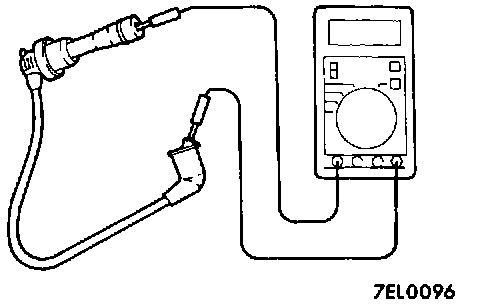

2. Measure resistance.
Limit: Max. 22 Kilo Ohms
