AWD

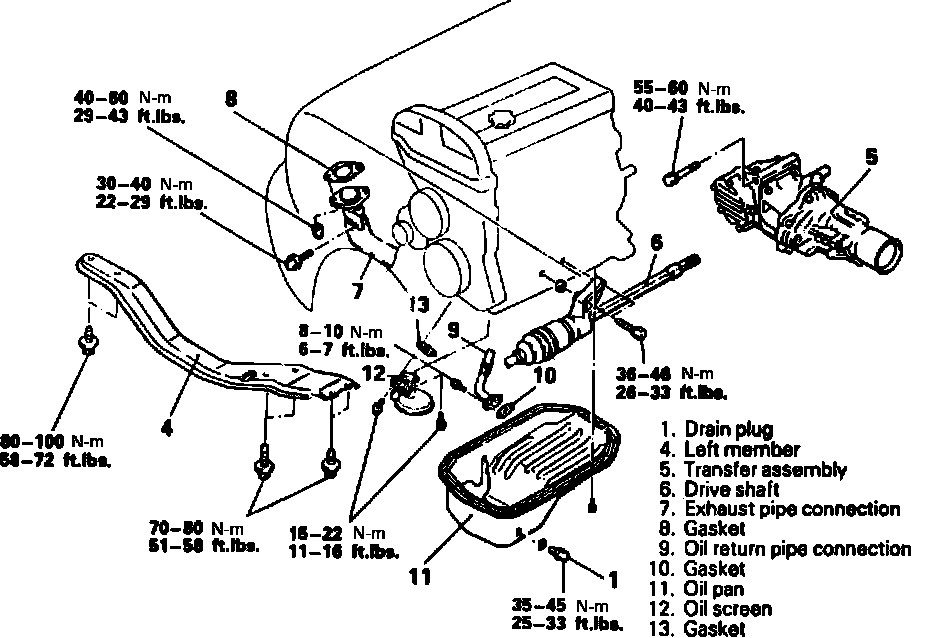

Fig. 73 Oil Pan & Screen Assembly. 2.0L/4-122 Models w/4 Wheel Drive:

REMOVAL

Remove oil pan and oil screen in numbered sequence, noting the following:
1. Once all oil pan bolts are removed, use oil pan separator No. MD998727 or equivalent and a hammer to loosen pan. Do not use a screwdriver or a chisel to perform this task, as damage to oil pan flange may result.
2. Remove pan by placing a brass bar at corner of separator tool and striking it with a hammer.

INSPECTION

Replace the oil pan if damaged or cracked. Ensure screen is not clogged, cracked or damage.

INSTALLATION

Reverse removal procedure to install. When installing oil pan, ensure mating surfaces are clean, then apply gasket adhesive into groove in oil pan flange. Do not allow adhesive to cover bolt holes.
