Unit Inspection

Engine Coolant Temperature Gauge Unit Inspection:

1. Drain the engine coolant.
2. Remove the engine coolant temperature gauge unit.

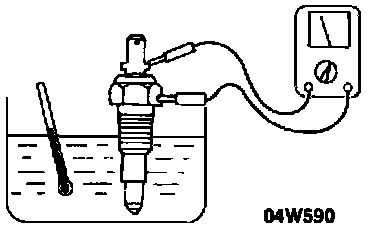

3. Immerse the unit in 70° (158°F) water to measure the resistance.
Standard value: 104 ± 13.5 Ohm

Engine Coolant Temperature Gauge Unit Inspection:

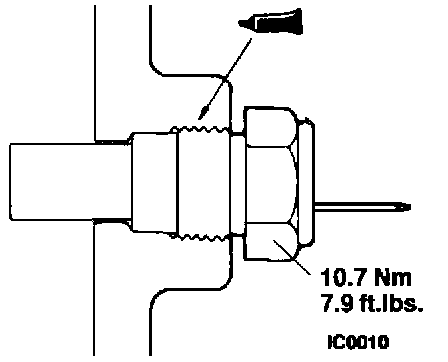

4. After checking, apply the specified adhesive around the thread of engine coolant temperature gauge unit.
Specified sealant: MOPAR Part No. 4318034 or equivalent.
5. Fill engine coolant.
