Heater Core: Service and Repair

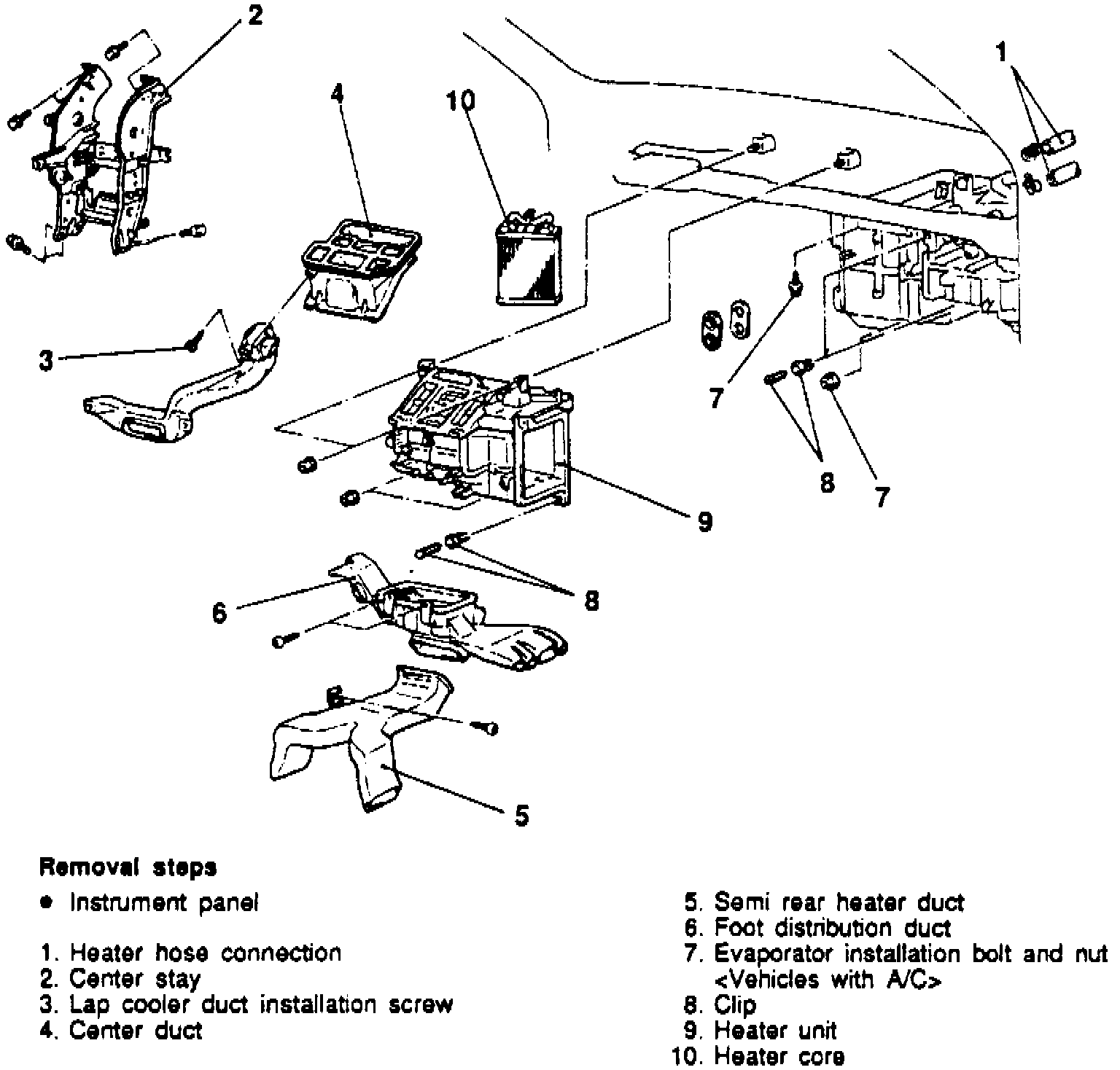

Fig. 20 Exploded View Of Heater Unit:

Remove heater unit in numbered sequence, noting the following:
1. Disconnect battery ground cable.
2. Drain engine coolant.
3. Remove instrument panel.
4. Reverse procedure to install. Fill up engine coolant.
