System Schematics

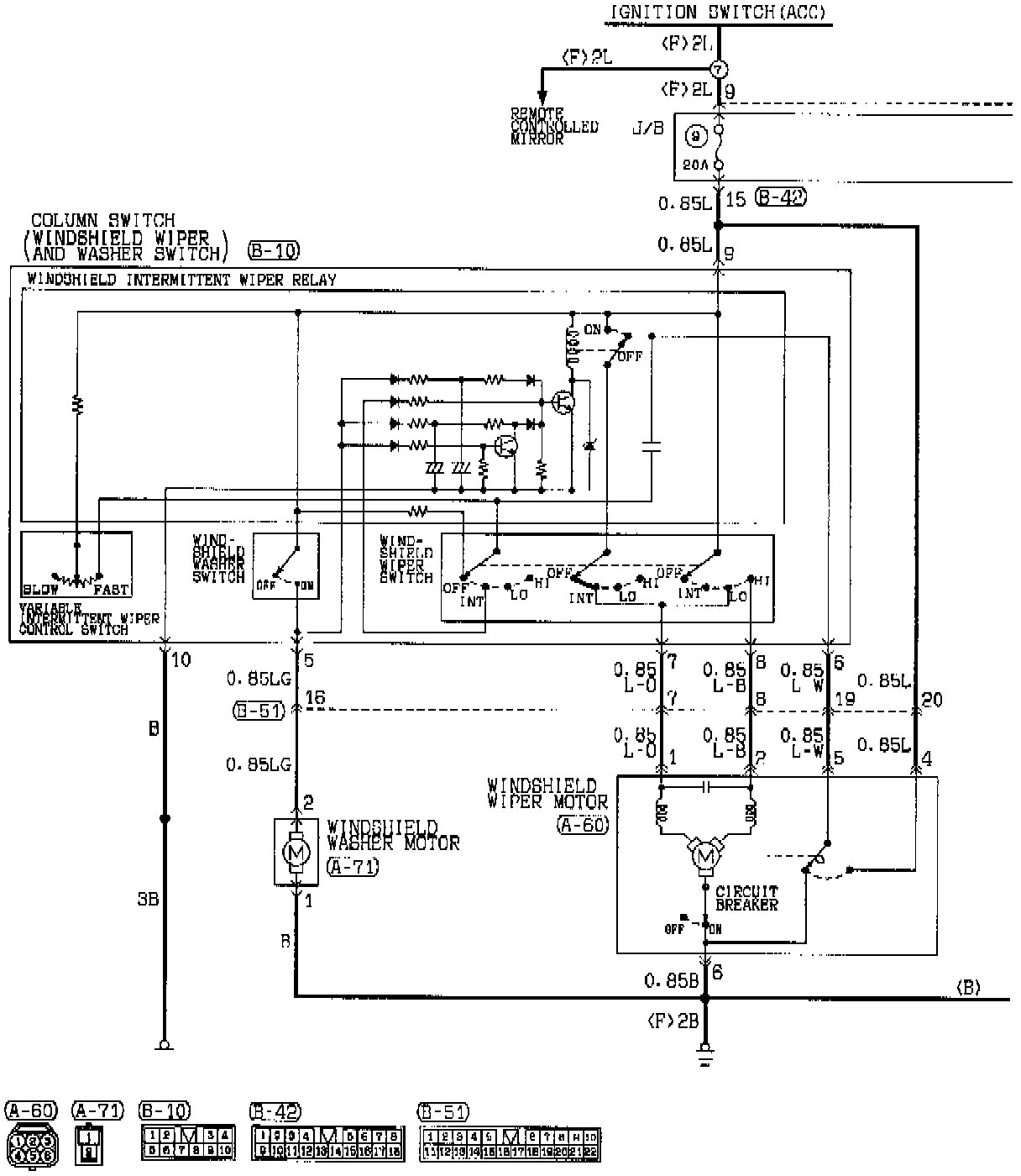

Fig.16 Wiper System Wiring Diagram Part 1 of 2:

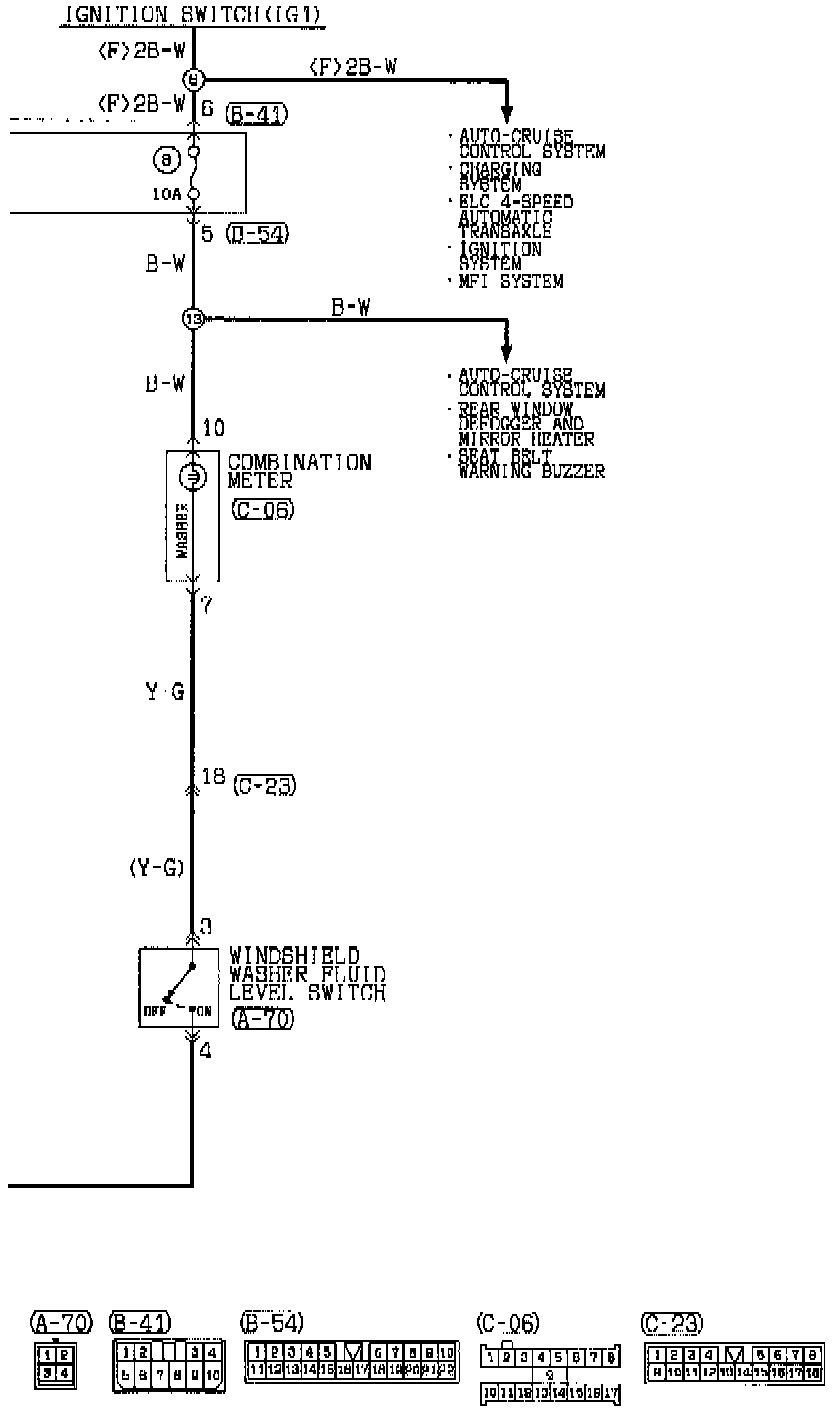

Fig.16 Wiper System Wiring Diagram Part 2 of 2:
