E Connectors - Interior Harness

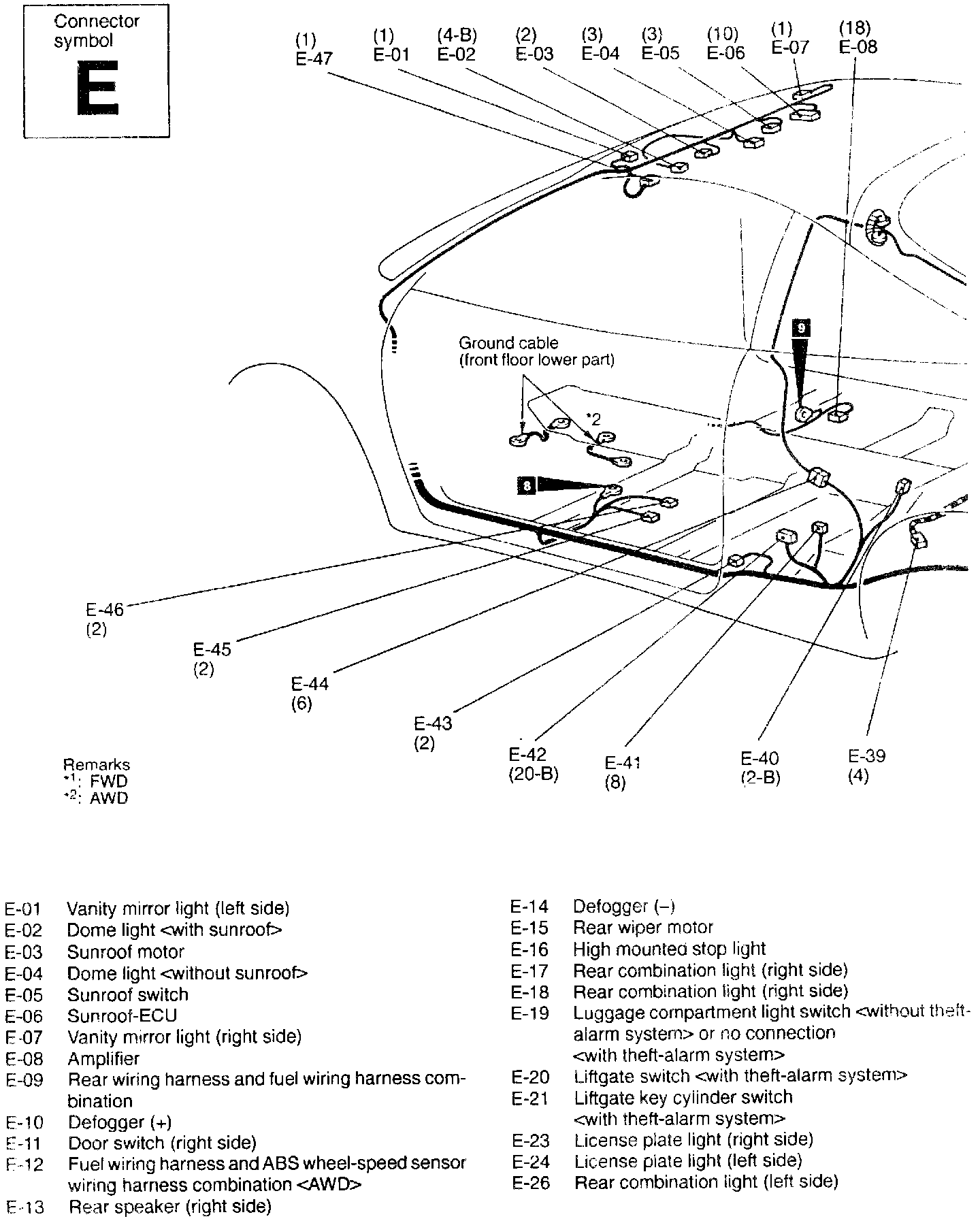

E Connectors - Interior (Part 1 Of 2):

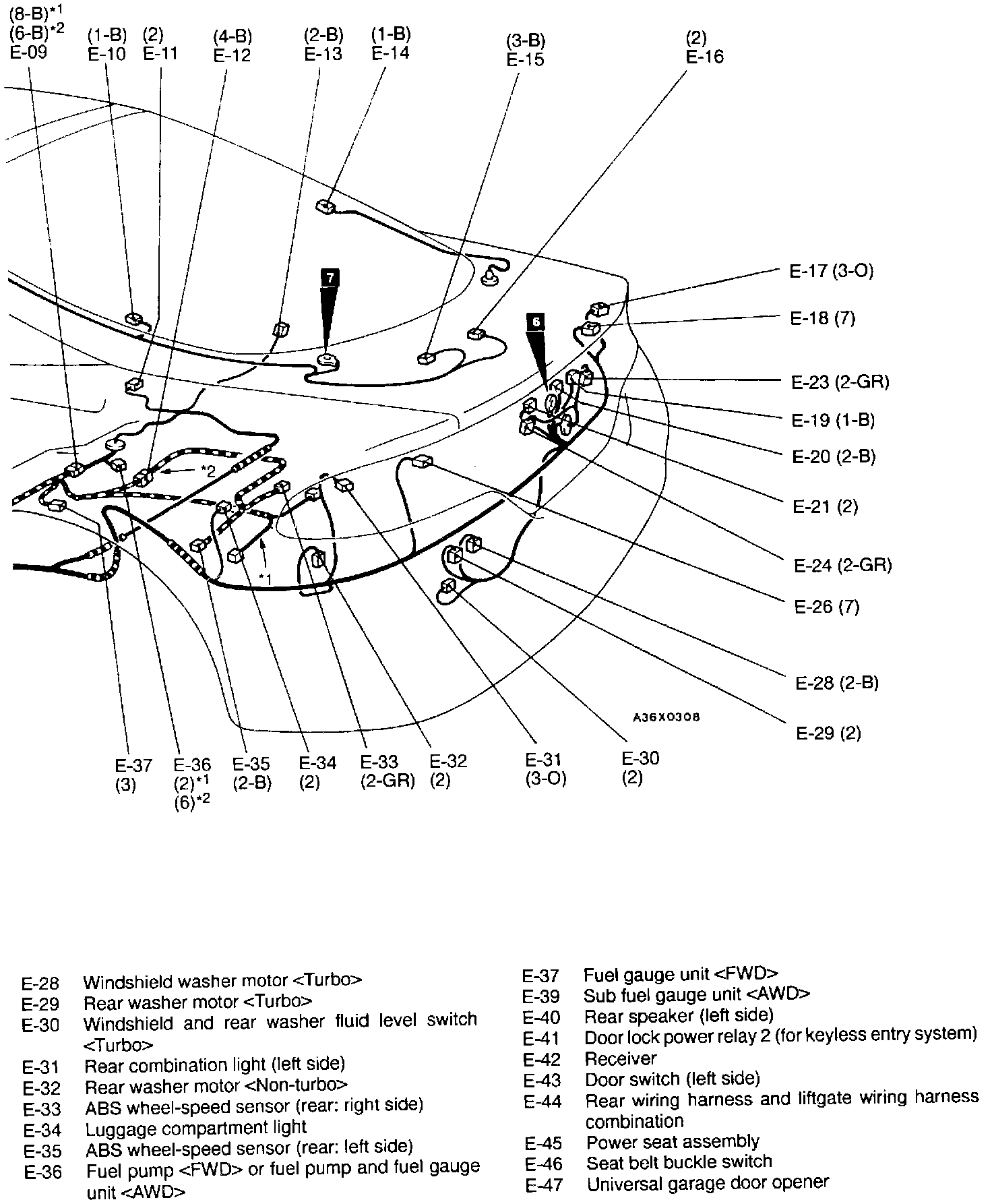

E Connectors - Interior (Part 2 Of 2):
