Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Symptom Diagnostic Procedures
>>
Inspection Procedure 5
Inspection Procedure 5

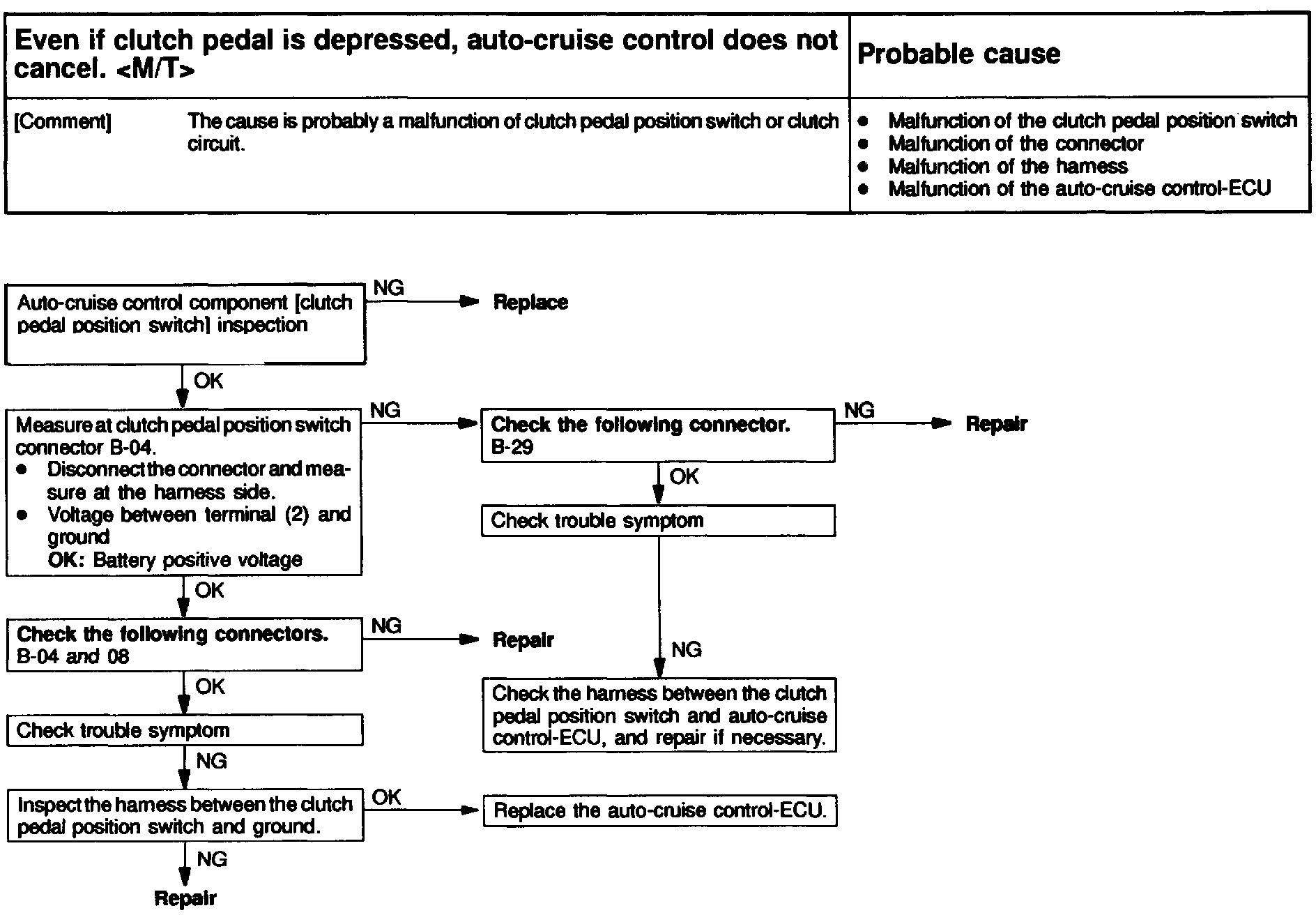

Fig. 48 Inspection Procedure 5:
