Cruise Control Servo: Testing and Inspection

1. Remove actuator, then apply negative pressure to actuator with vacuum pump.

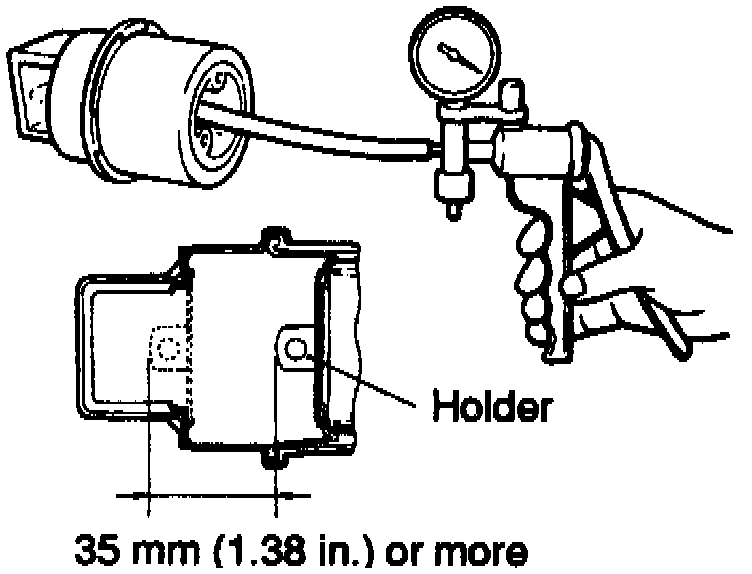

Fig. 73 Actuator Inspection:

2. Ensure holder moves more than 35 mm and that there is no change in position of holder while negative pressure is maintained.
3. Install actuator, then adjust speed control cable.
