Symptom Related Diagnostic Procedures

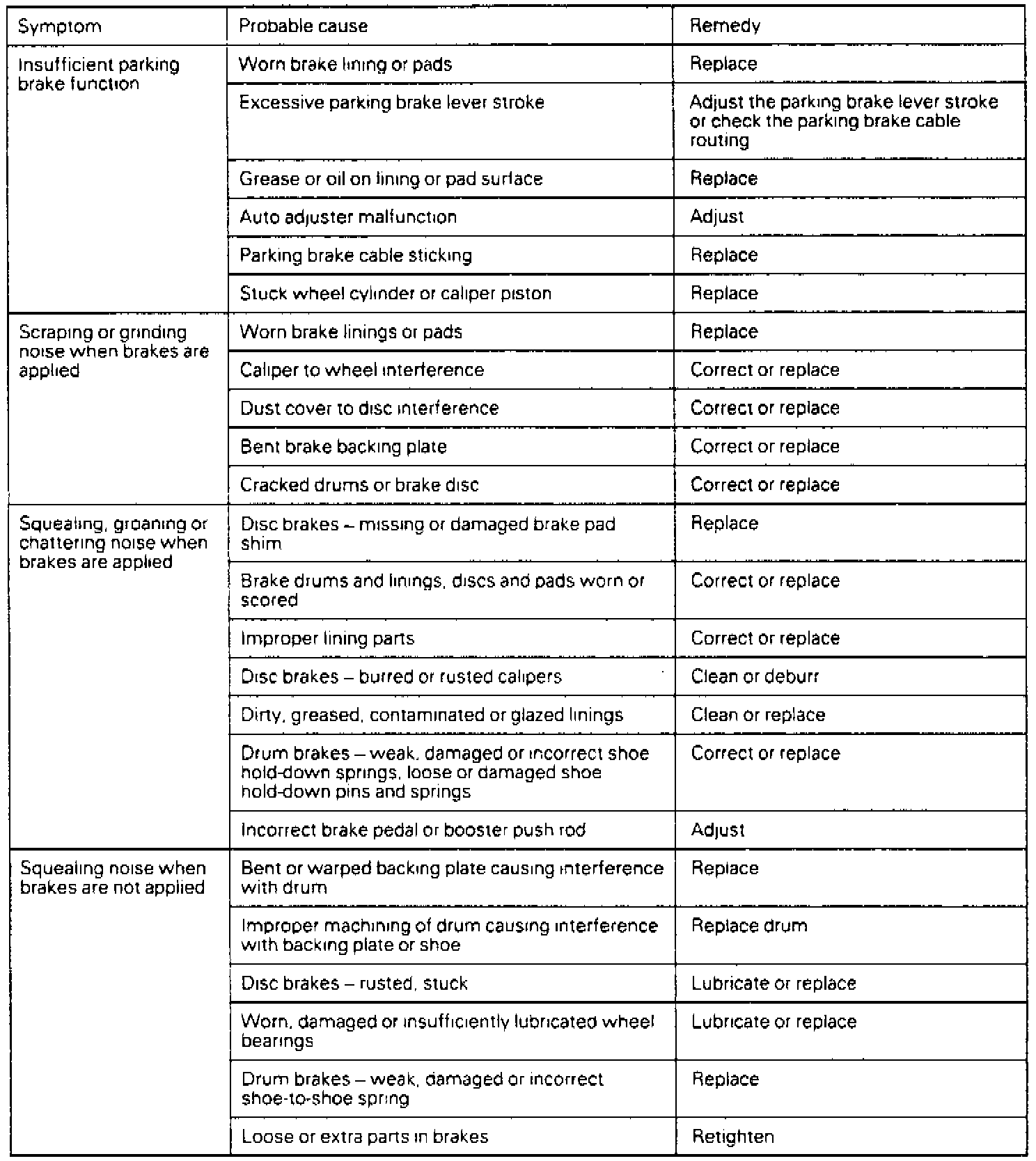

Fig 1 Brake System Troubleshooting (Part 1 Of 3):

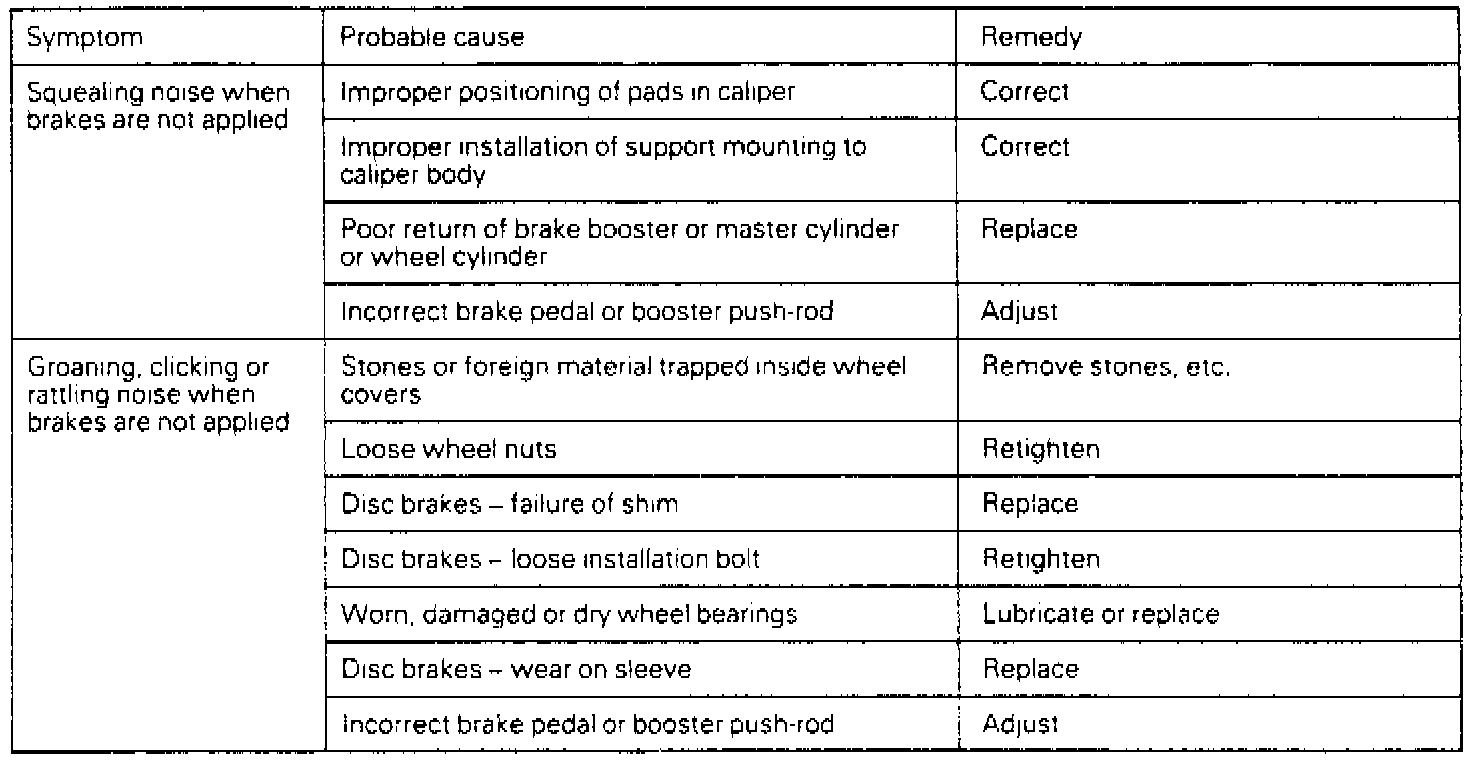

Fig 1 Brake System Troubleshooting (Part 2 Of 3):

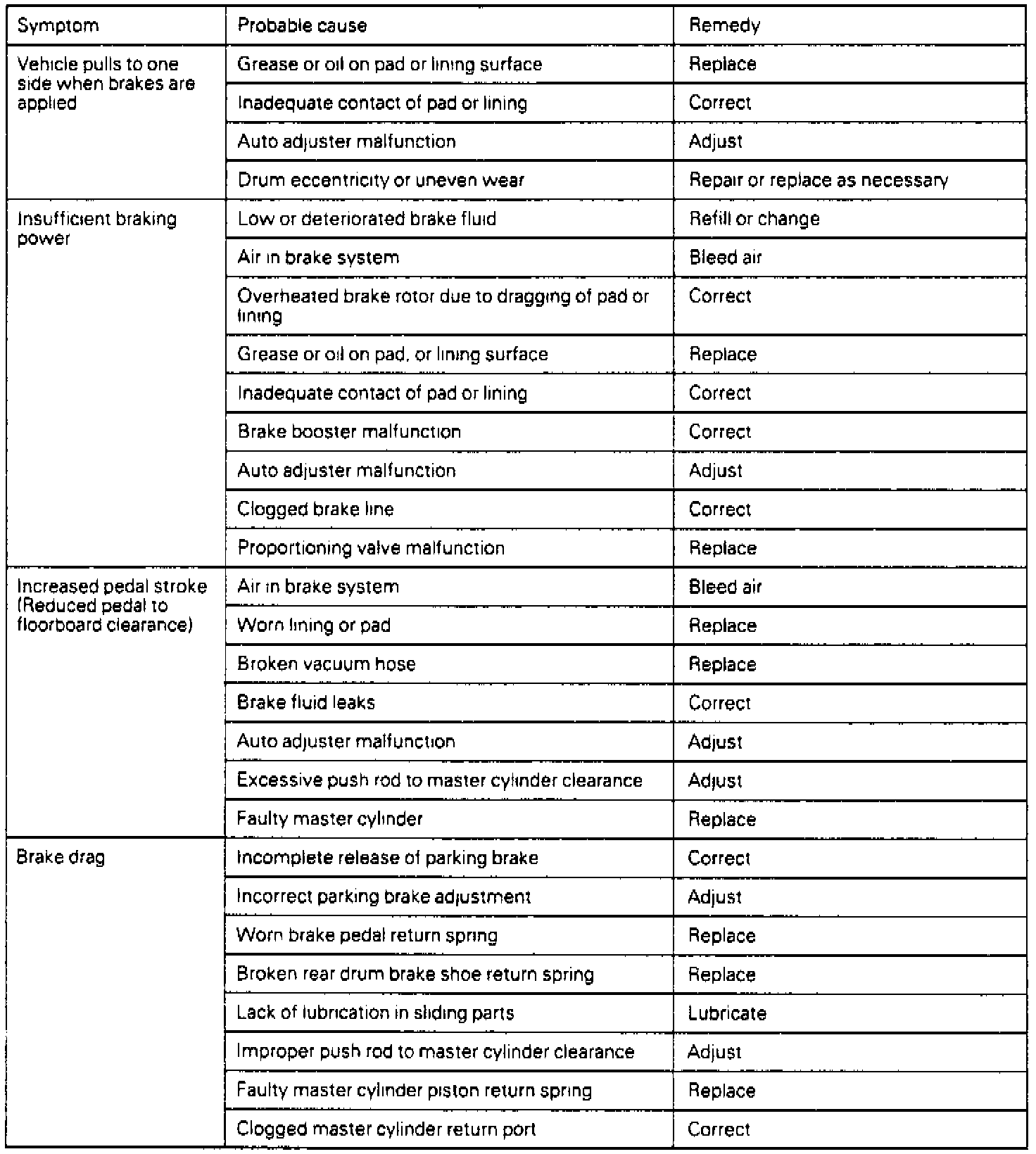

Fig 1 Brake System Troubleshooting (Part 3 Of 3):
