Test 1 - Scan Tool Communication With All Systems Not Possible

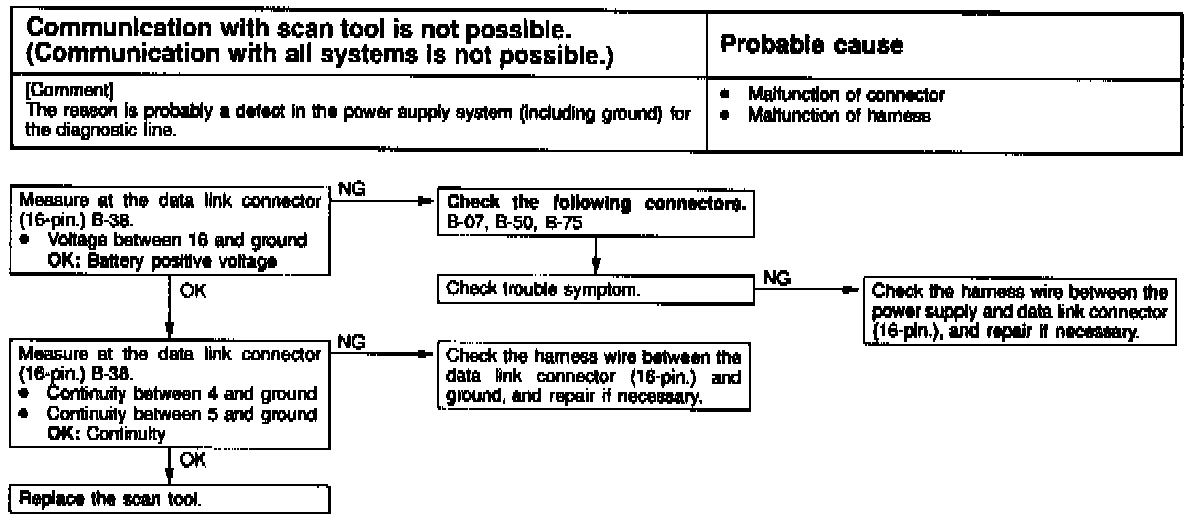

Fig 35 Test 1: Communication With Scan Tool Is Not Possible/Communication With All Systems Is Not Possible:
