With Manufacturer's Scan Tool

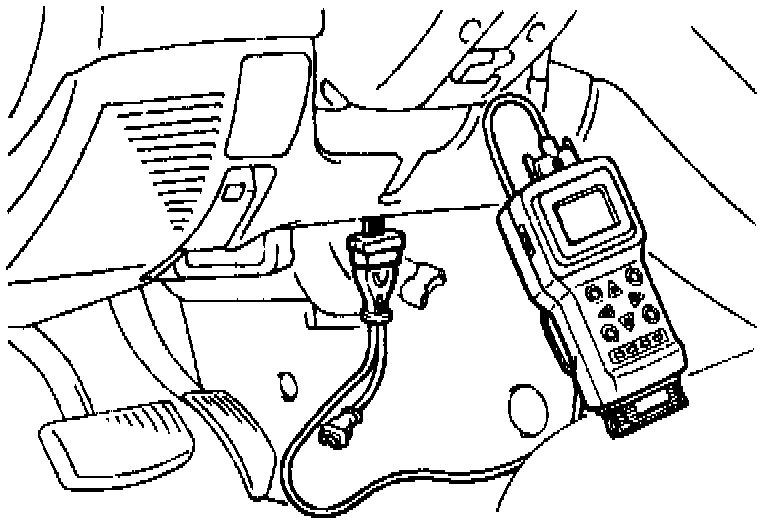

Fig 12 Data Link Connector (DLC) Location:





To access diagnostic trouble codes using a DRB or equivalent scan tool, turn the ignition switch off and connect the scan tool to the Data Link Connector (DLC) located under the lefthand side of the instrument panel. After determining the diagnostic trouble code, refer to Diagnostic Charts for diagnostic trouble code diagnosis and repair.
