Without Scan Tool

WITH SCAN TOOL
Connect scan tool to the Diagnostic Link Connector (DLC) located under the lefthand side of the instrument panel and follow scan tool instructions to erase trouble codes.

LESS SCAN TOOL
1. Turn ignition switch to the On position.
2. Activate stop lamp switch.

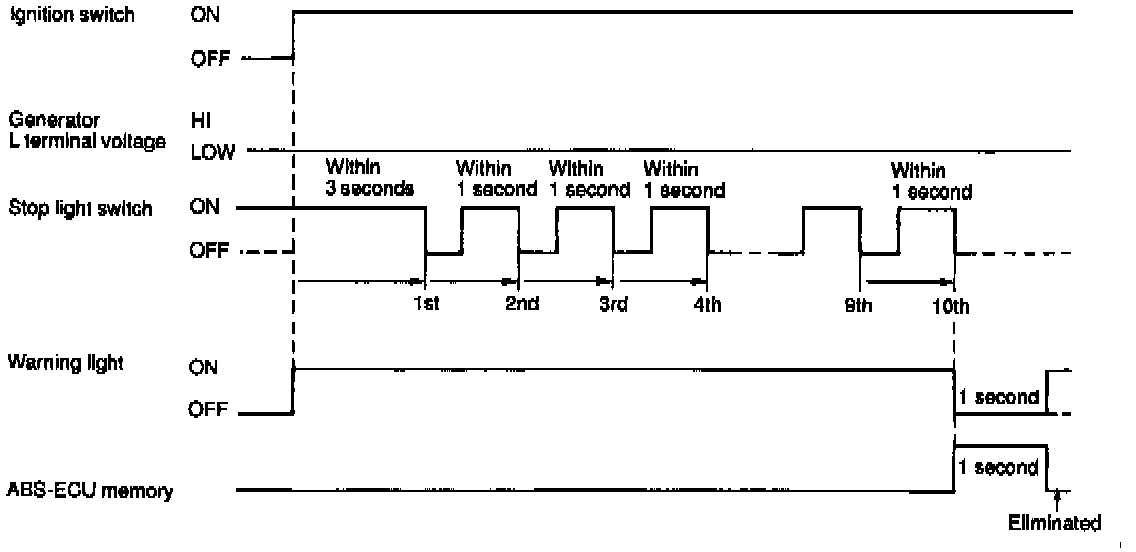

Fig 77 Clearing Diagnostic Trouble Codes:

3. Stop lamp will operate 0.0 times in succession as shown.
4. Trouble codes should now be erased.
5. If ABS lamp remains illuminated, refer to ABS warning lamp diagnosis in Diagnostic Charts.
