Seats: Service and Repair

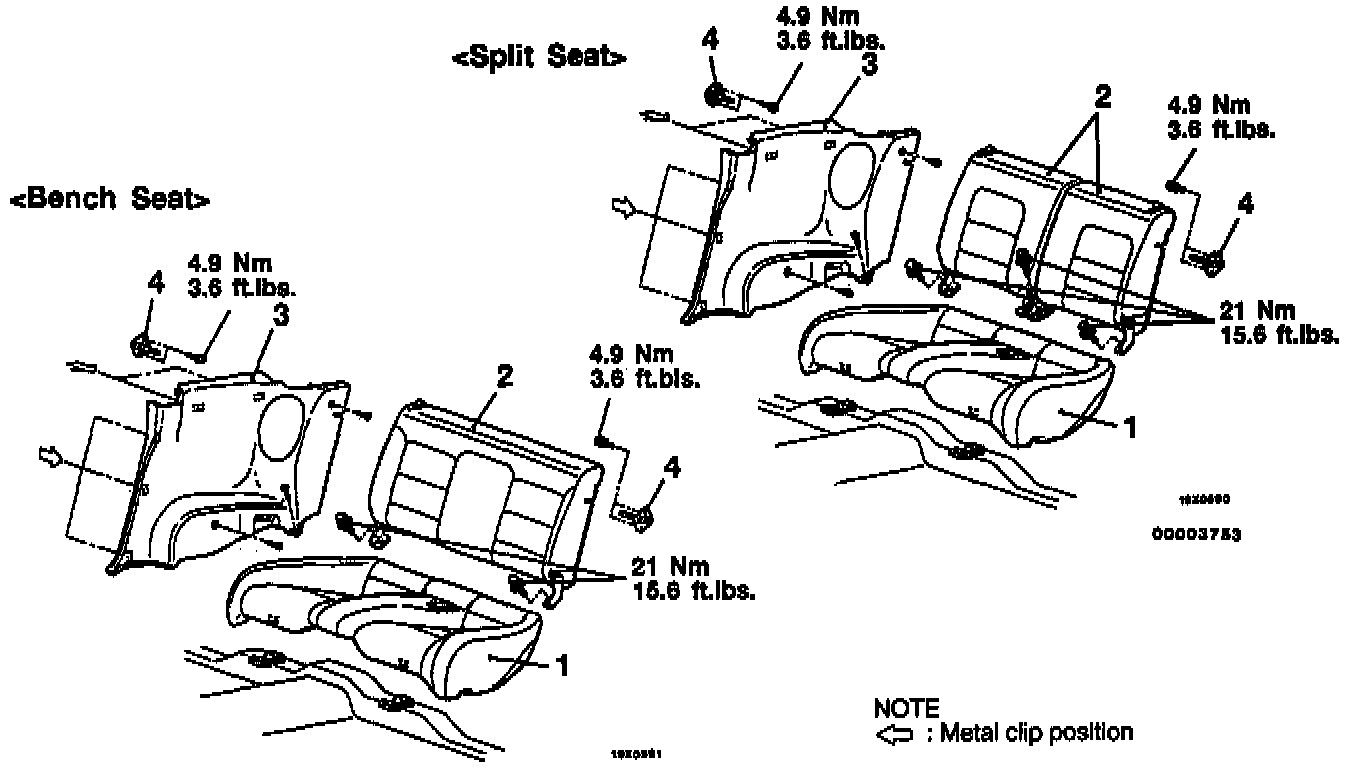

REAR SEAT REMOVAL STEPS
1. Rear seat cushion
2. Rear seat back

STRIKER REMOVAL STEPS
3. Quarter trim, lower
4. Striker

REMOVAL SERVICE POINT

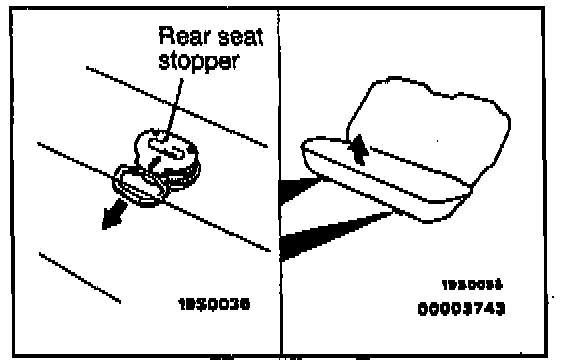

Rear Seat Cushion Removal
With the rear seat stopper pulled, lift up the cushion to remove it.

INSTALLATION SERVICE POINT





Rear Seat Cushion Installation
1. Insert the seat cushion attachment wire below the seat- back.
2. Pass the rear seat belt buckles through the seat cushion.
3. Insert the seat cushion lock plate into the floor holes.
