Home >> Eagle >> 1996 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Sunroof / Moonroof >> Sunroof / Moonroof Motor >> Testing and Inspection

Sunroof / Moonroof Motor: Testing and Inspection

SUNROOF MOTOR CHECK

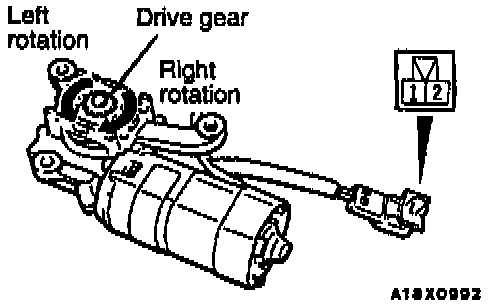

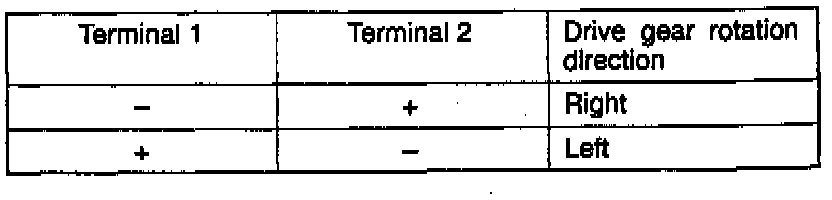

Check the rotation direction of the drive gear when the battery is connected to the connector.
