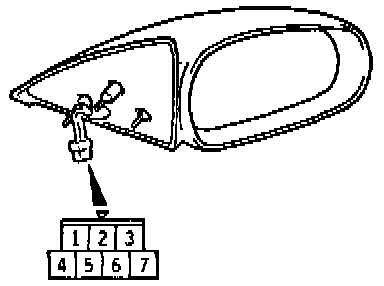

Electrically Controlled Mirror Check

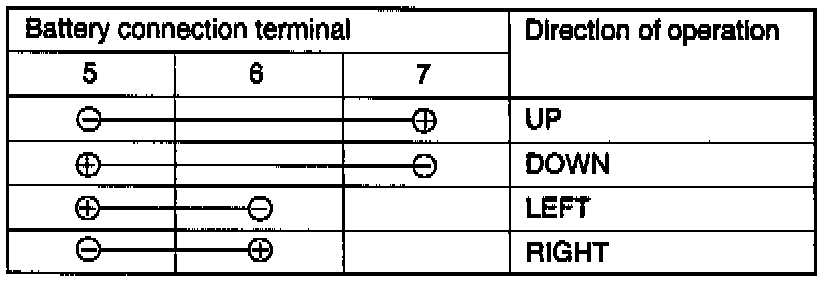

Check that the mirror moves as described in the table below when each terminal is connected to the battery.
