Outside Rear View Mirror

DOOR MIRROR REMOVAL STEPS
- Door trim
1. Knob
2. Delta cover inner
3. Boot
4. Door mirror
5. Mirror

DOOR MIRROR CONTROL SWITCH REMOVAL STEPS
6. Instrument panel switch assembly
7. Door mirror control switch

REMOVAL SERVICE POINT

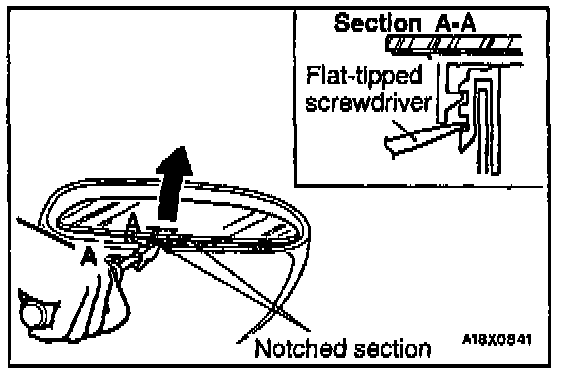

Mirror Removal
Turn the mirror by hand so that it faces upwards, insert the flat-tipped screwdriver wound with masking tape in to the notched section, and lever out the mirror to remove it.
