Rear View Mirror Assembly

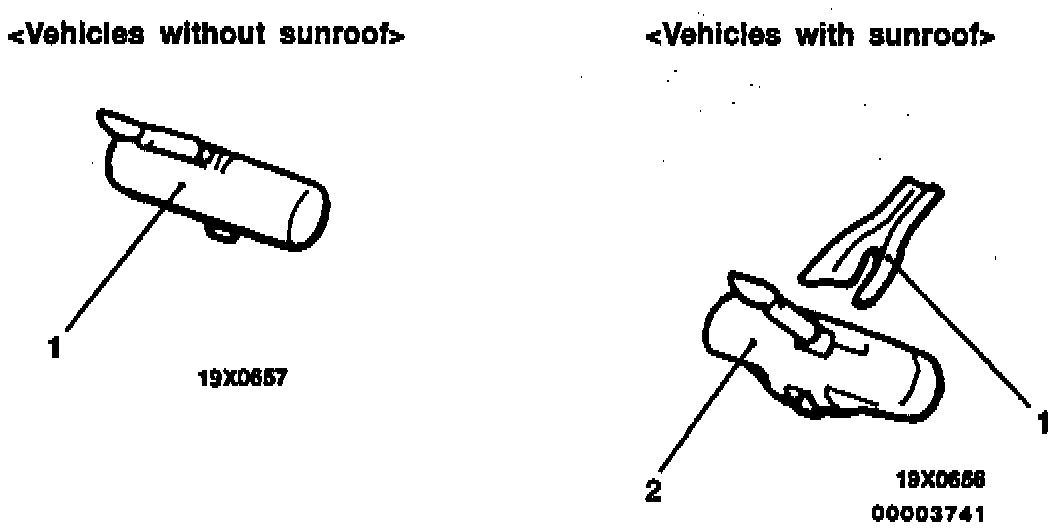

REMOVAL STEPS
1. Harness cover
2. Inside rear view mirror

REMOVAL SERVICE POINT

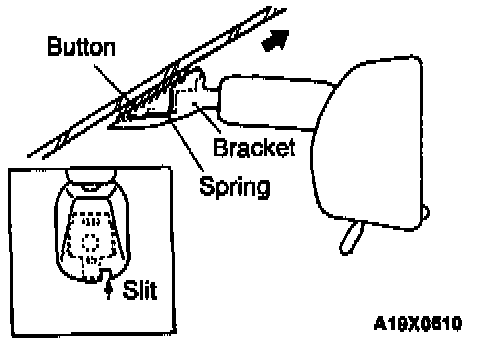

Inside Rear View Mirror Removal
Insert a narrow flat-tip screwdriver into the slit in the inside rear view mirror bracket, keep the spring pushed in and remove the inside rear view mirror in the direction of the arrow in the illustration.

NOTE: While the spring is pushed in, the connection between the spring and the pawl of the button is released.
