Trim Panel: Service and Repair

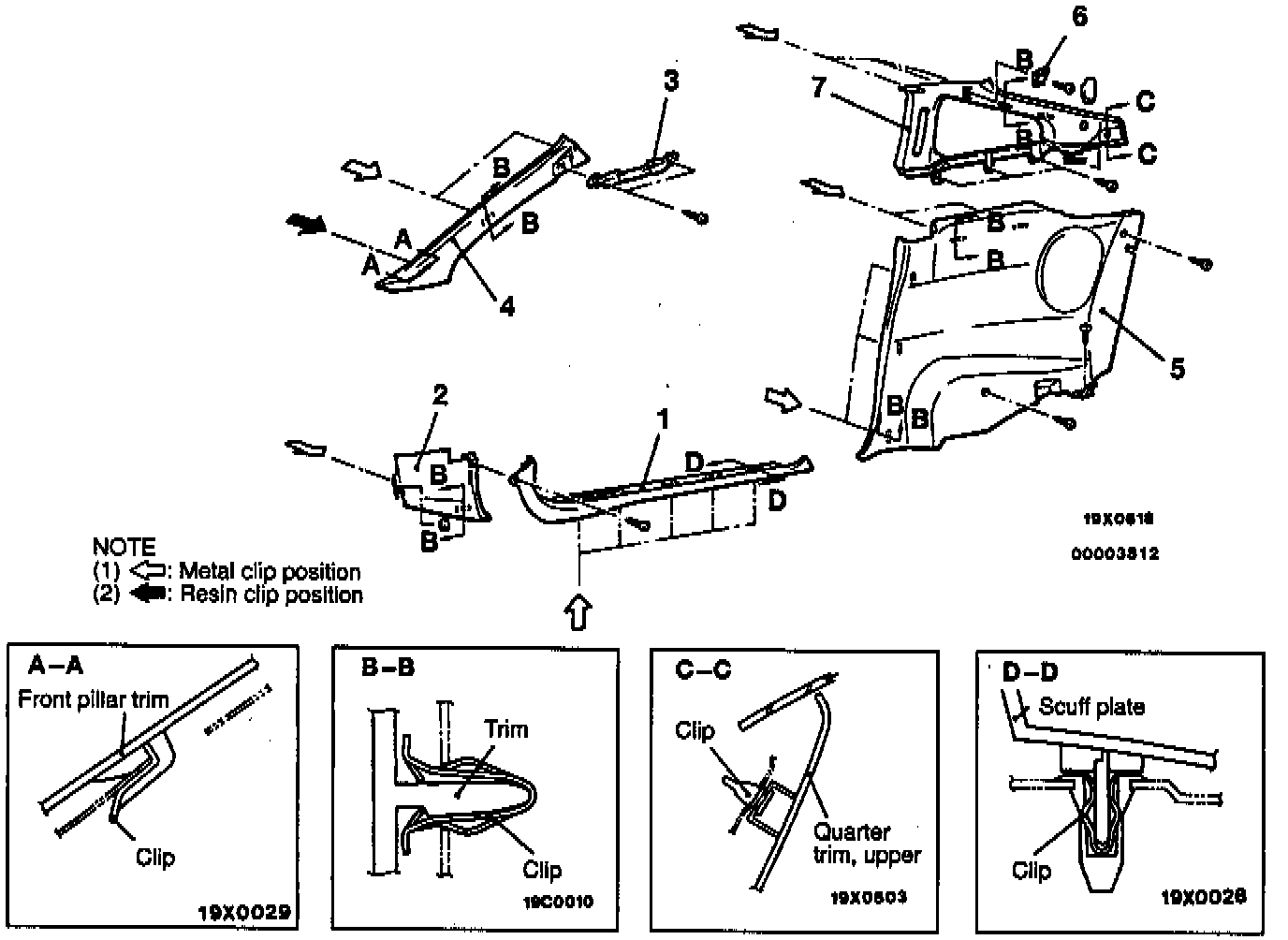

COWL SIDE TRIM REMOVAL STEPS
1. Scuff plate
2. Cowl side trim

FRONT PILLAR TRIM REMOVAL STEPS
3. Assist grip (R.H.>
4. Front pillar trim

QUARTER TRIM REMOVAL STEPS
- Rear seat cushion
- Front seat belt anchor plate
- Rear seat belt anchor plate
5. Quarter trim, lower
6. Coat hangar bracket
7. Quarter trim, upper

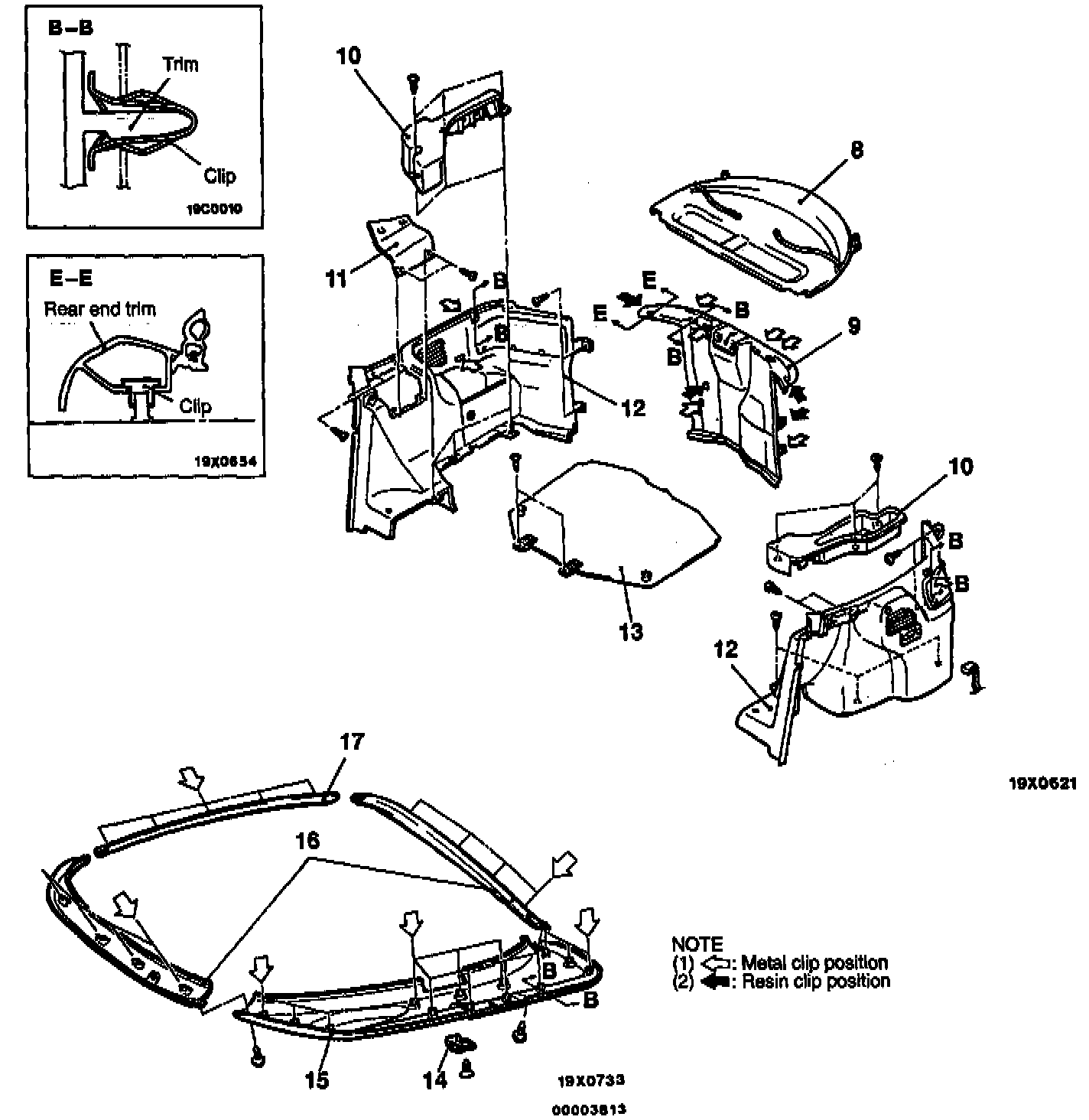

REAR SIDE TRIM REMOVAL STEPS
8. Rear shelf trim
9. Rear end trim
10. Luggage compartment floor box
11. Absorber lid
12. Rear side trim

LUGGAGE COMPARTMENT FLOOR BOARD REMOVAL
13. Luggage compartment floor board

LIFTGATE TRIM REMOVAL STEPS
14. Hook
15. Liftgate lower trim
16. Litigate side trim
17. Liftgate upper trim
