Headliner: Service and Repair

PRE-REMOVAL AND POST INSTALLATION OPERATION
- Front Pillar Trim and Quarter Trim Upper Removal and Installation.

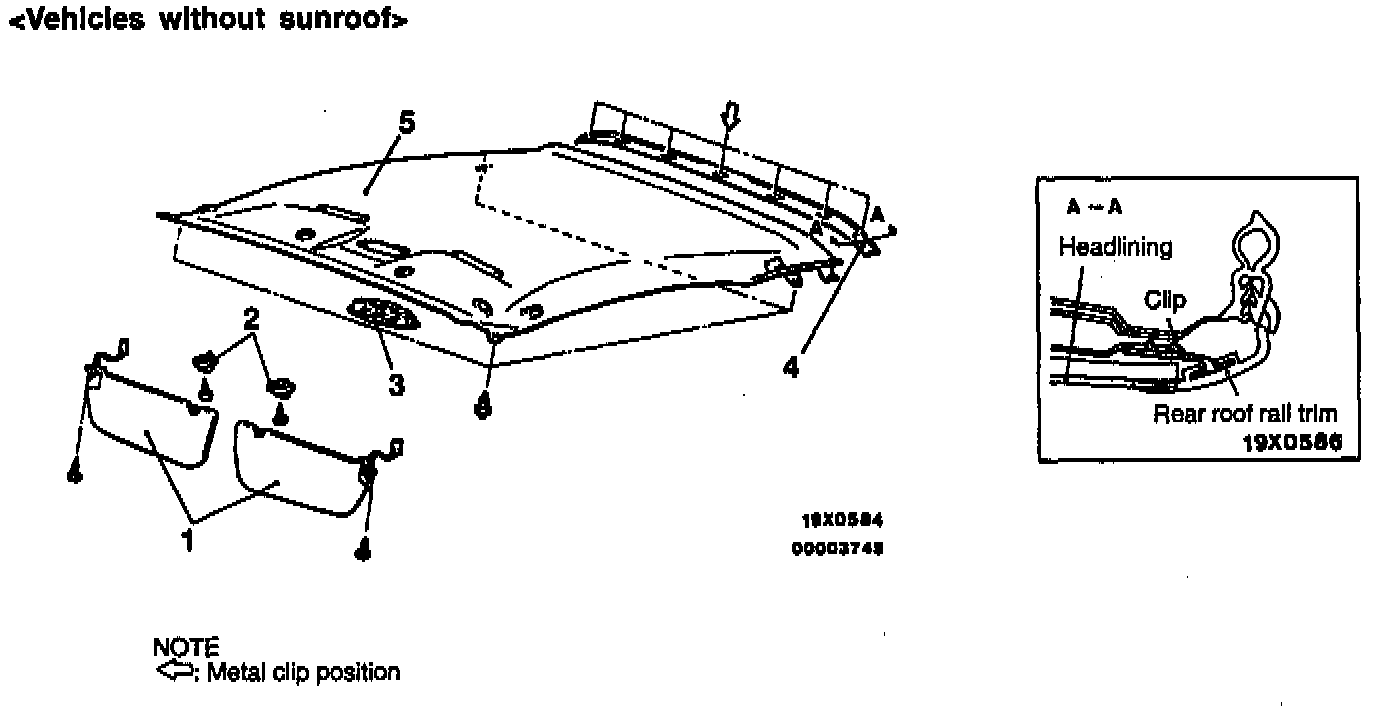

REMOVAL STEPS
1. Sunvisor assembly
2. Sunvisor holder
3. Dome light assembly
4. Rear roof rail trim
5. Headlining

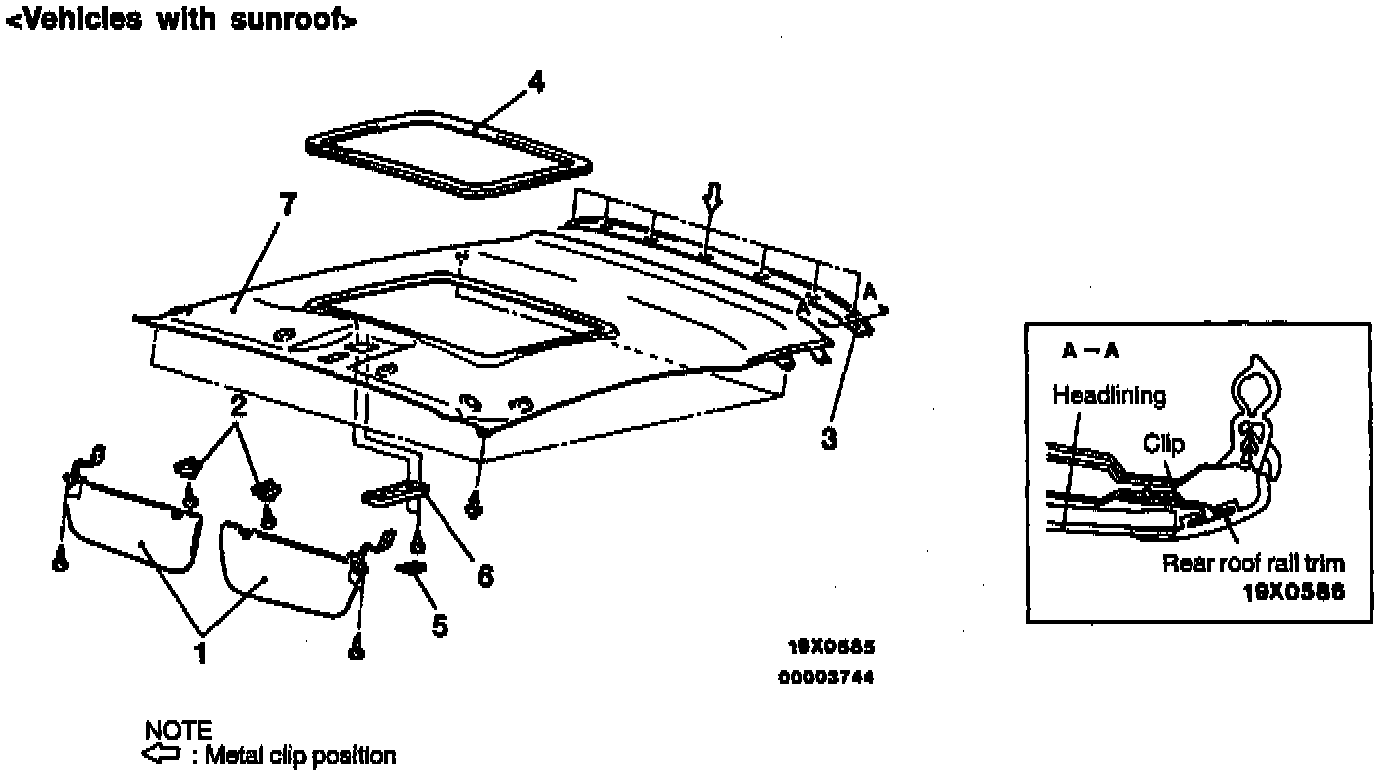

REMOVAL STEPS
1. Sunvisor assembly
2. Sunvisor holder
3. Rear roof rail trim
4. Sunroof inner weatherstrip
5. Sunroof switch cover
6. Sunroof switch panel
7. Headlining

REMOVAL SERVICE POINT

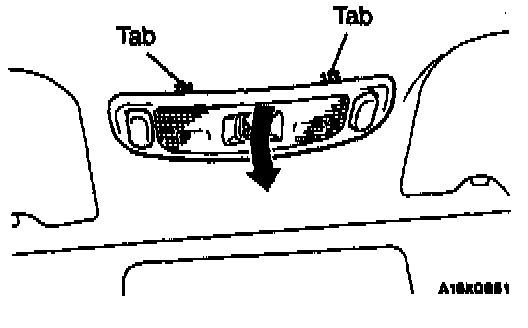

Dome light Assembly Removal
Press and pull the tab downward to remove the dome light assembly.

INSTALLATION SERVICE POINT





Sunroof Inner Weatherstrip Installation
Install the sunroof inner weatherstrip with its adhered joint located toward the rear of the vehicle and on its center line.
