Console: Service and Repair

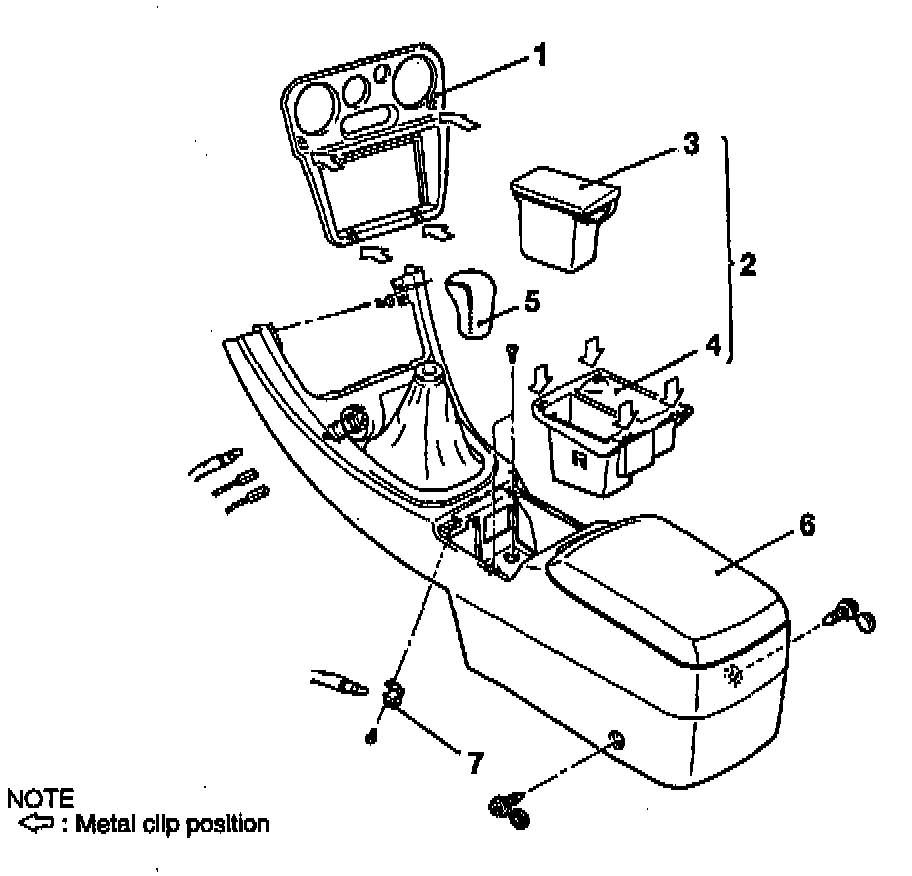

REMOVAL STEPS
1. Center console panel
2. Ashtray and cup holder assembly
3. Ashtray
4. Cup holder
5. Shift lever knob
6. Floor console assembly
7. Ashtray illumination light bracket

CAUTION: When removing and installing the floor console assembly do not let it bump against the SRS-ECU.

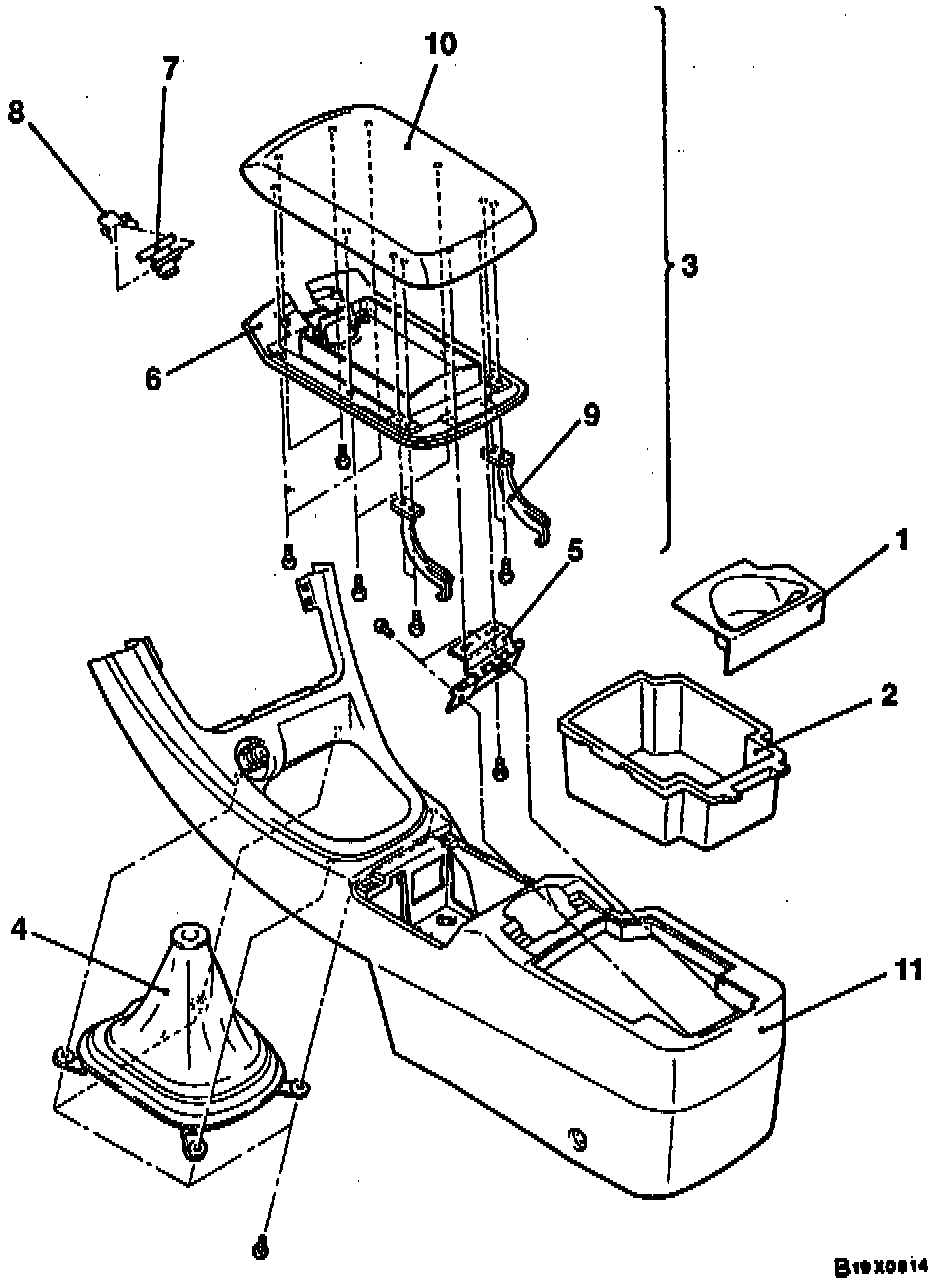

DISASSEMBLY STEPS
1. Cup holder
2. Inner box
3. Floor console lid sub assembly
4. Shift lever cover assembly
5. Hinge assembly
6. Inner lid
7. Lock lever
8. Spring
9. Stopper
10. Floor console lid
11. Floor console
