Front Door Latch: Service and Repair

PRE-REMOVAL OPERATION
- Door Trim Removal

POST-INSTALLATION OPERATION
- Inside Handle a Adjustment
- Door Trim Installation
- Door Fit Adjustment

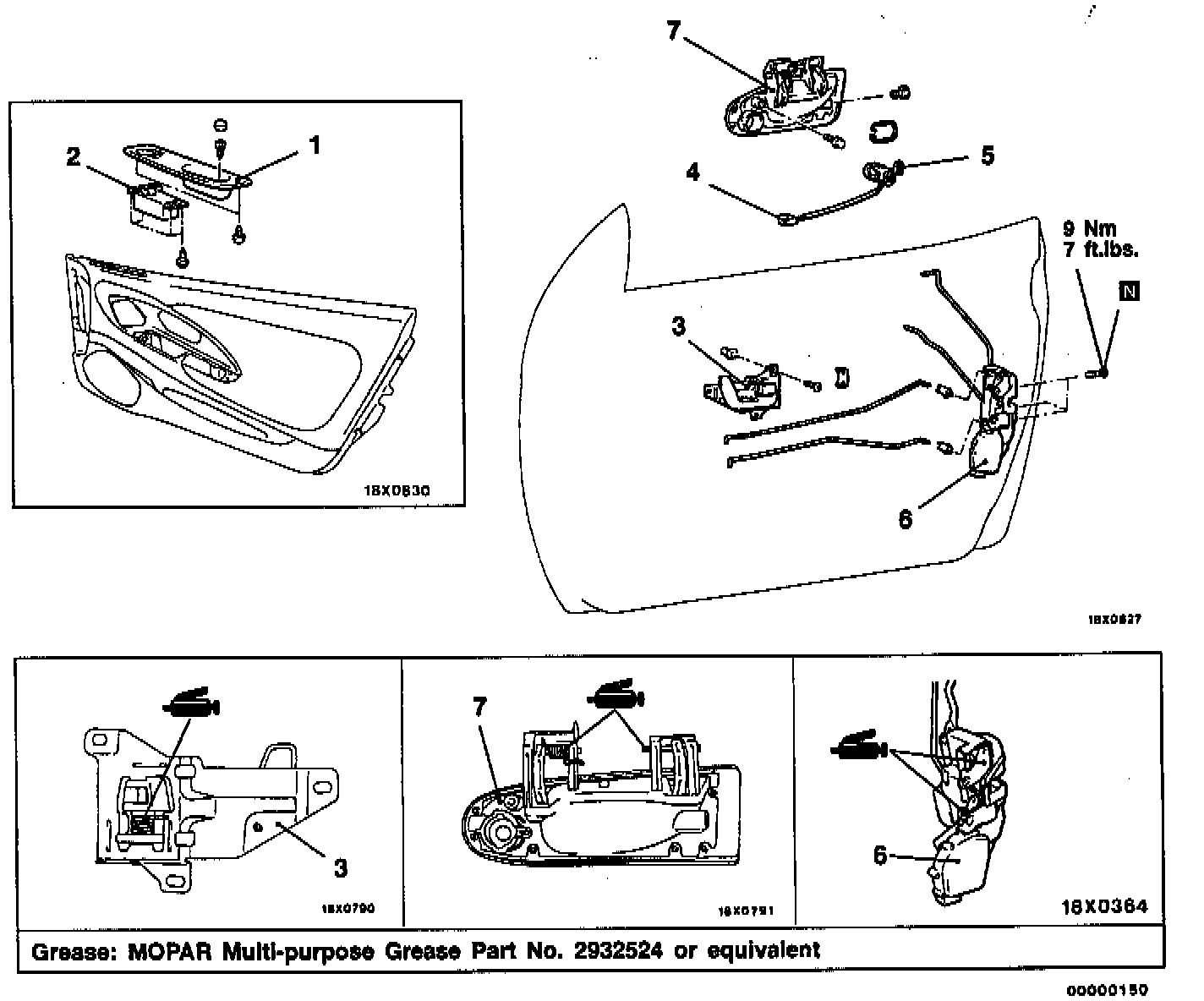

CENTRAL DOOR LOCK SWITCH REMOVAL STEPS
1. Pull handle box
2. Central door lock switch

DOOR HANDLE AND LATCH REMOVAL STEPS
3. Door inside handle
2. Waterproof film
4. Harness connector (vehicles with central door locking system)
5. Door lock key cylinder assembly
6. Door latch assembly
7. Door outside handle
