Rear Speaker

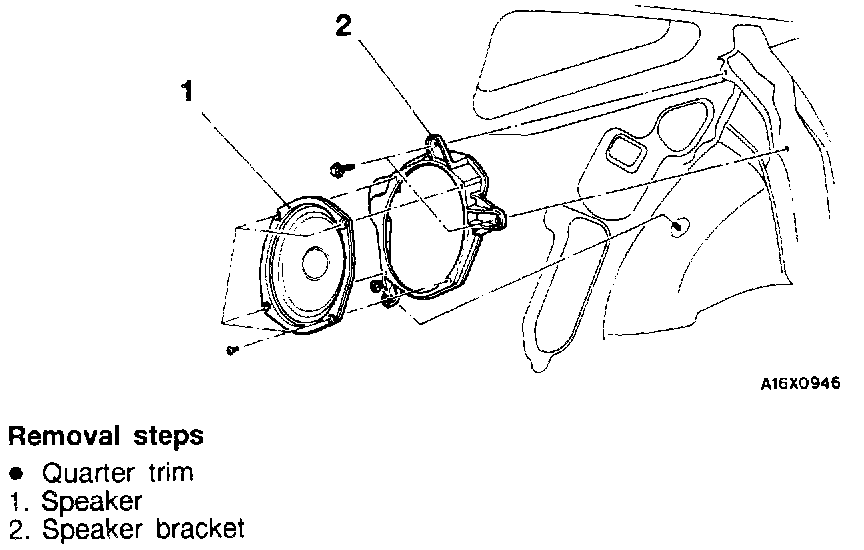

Rear Speaker - Removal And Installation:





REMOVE
- Quarter trim
1. Speaker
2. Speaker bracket

INSTALL
1. Speaker bracket
2. Speaker
- Quarter trim
