Antenna: Service and Repair

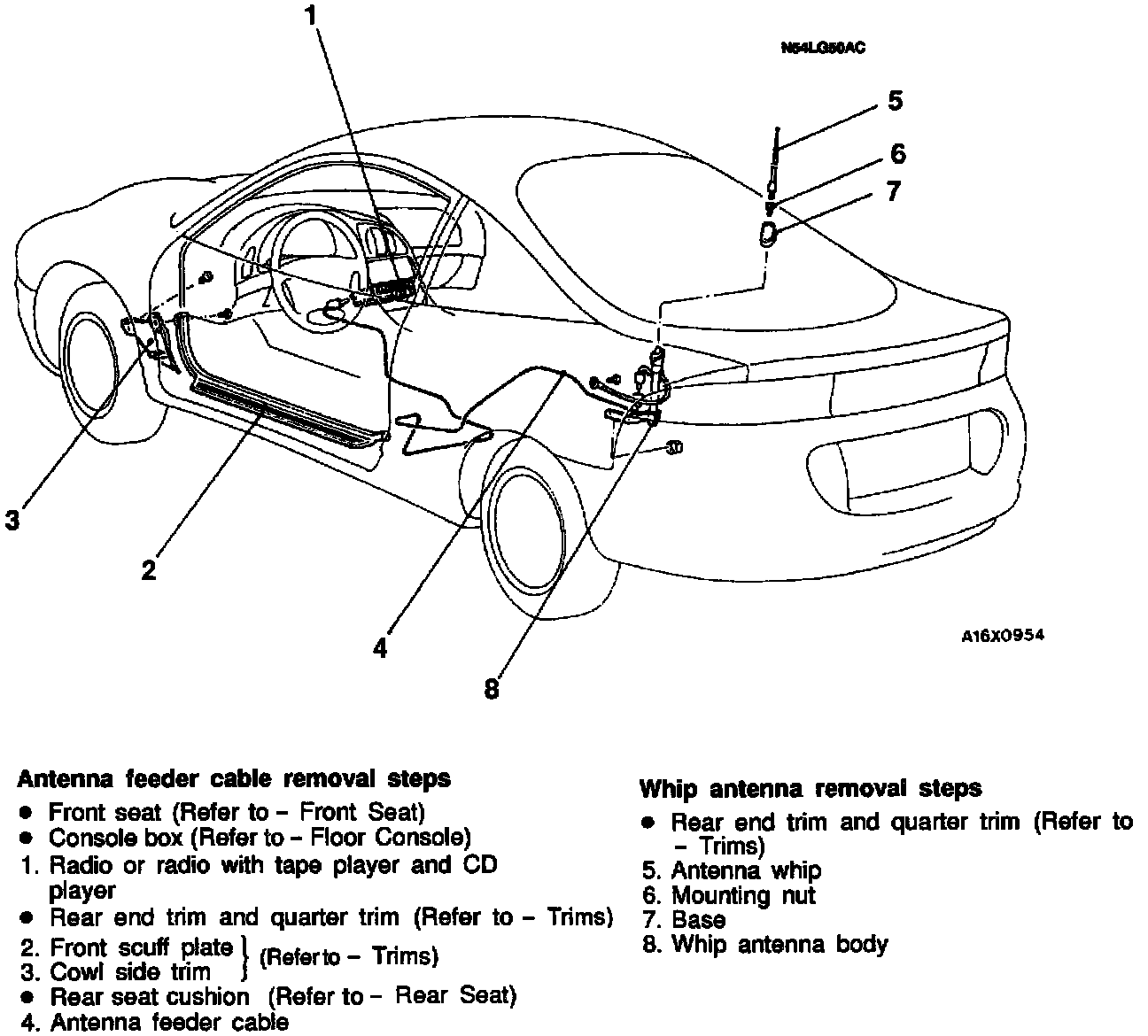

Antenna - Removal And Installation:

REMOVE
Antenna Feeder Cable
- Front seat
- Console box
1. Radio or radio with tape player and CD player
- Rear end trim and quarter trim
2. Front scuff plate
3. Cowl side trim
- Rear seat cushion
4. Antenna feeder cable

Whip Antenna
- Rear end trim and quarter trim
5. Antenna whip
6. Mounting nut
7. Base
8. Whip antenna body

INSTALL
Antenna Feeder Cable
1. Antenna feeder cable
2. Cowl side trim
- Rear seat cushion
3. Front scuff plate
4. Radio or radio with tape player and CD player - Rear end trim and quarter trim
- Console box
- Front seat

Whip Antenna
5. Whip antenna body
6. Base
7. Mounting nut
8. Antenna whip
- Rear end trim and quarter trim
