Home >> Eagle >> 1996 >> Talon AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Scan Tool Text Codes >> Injector Circuit Malfunction Cyls 1, 2, 3, 4

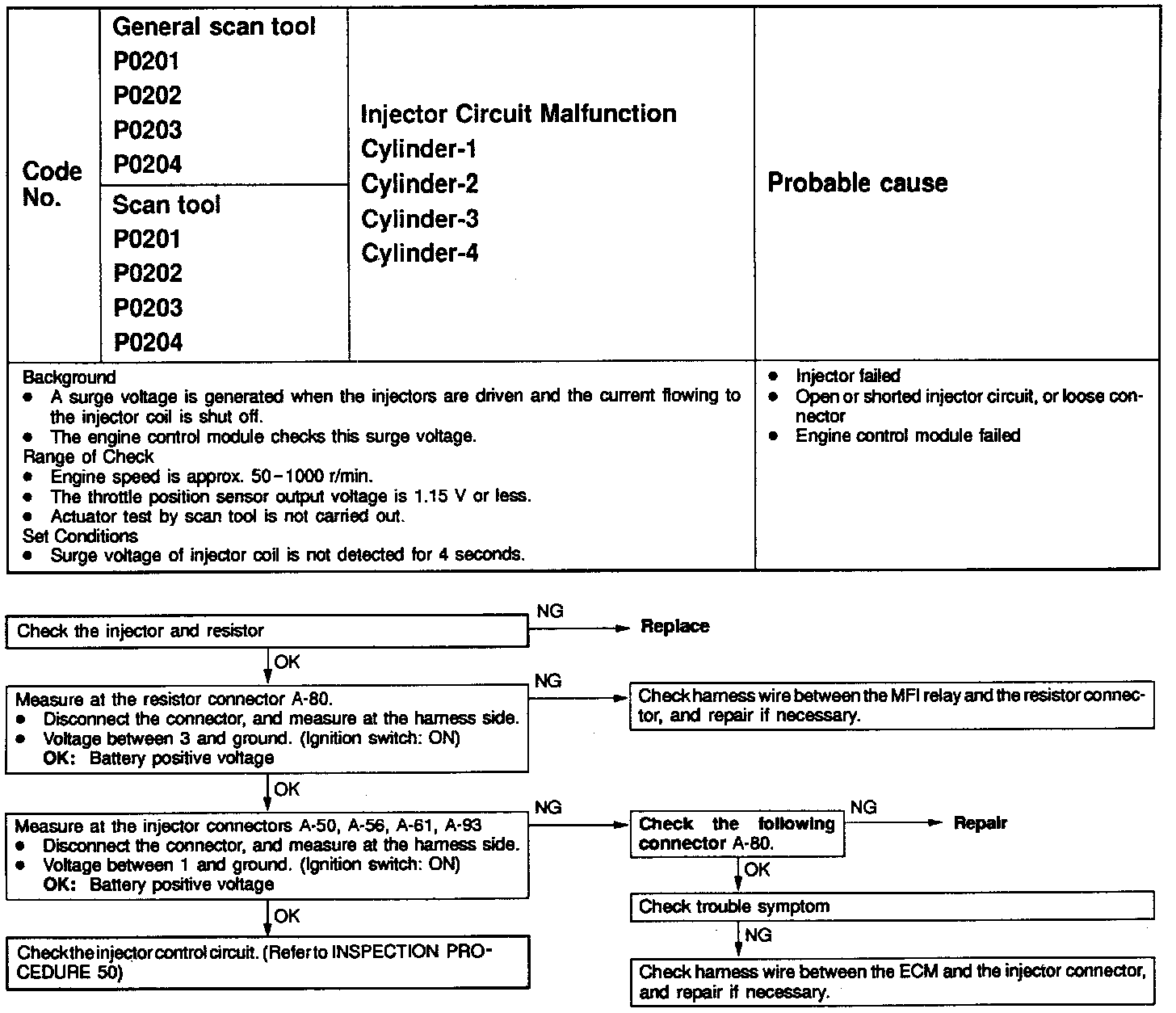

Injector Circuit Malfunction Cyls 1, 2, 3, 4
