A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
1, 2 and 3 Digit Codes
>>
51
>>
Antilock Brakes and Traction Control System
Antilock Brakes and Traction Control System

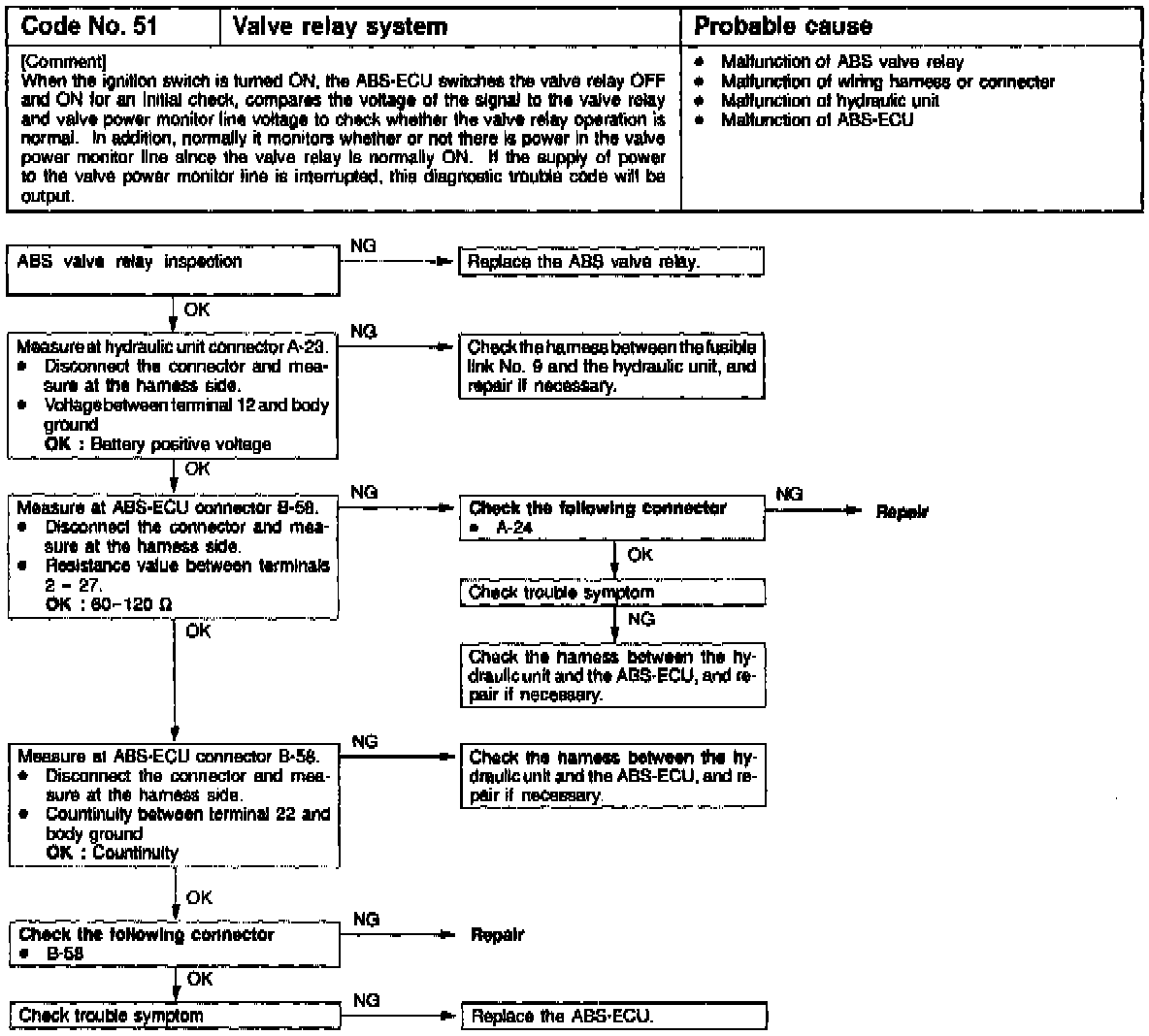

Fig 30 Code 51: Valve Relay System:
