Transmission Control System

Name
Code No. 32, 82 - Pulse generator B system

Description
If pulse generator B output and vehicle speed sensor vary by 30% or more at vehicle speeds of 43 km/h (27 mph) or above, there is an open circuit in pulse generator B and diagnostic trouble code No. 32 is output. In addition, if diagnosis code No.32 is output 4 times, there is an open circuit in pulse generator B, fail-safe code No.82 is output and the vehicle is locked in 3rd gear (D) or 2nd gear (2, L) as a fail-safe measure.

Probable cause
- Malfunction of pulse generator B
- Malfunction of connector
- Malfunction of transfer driven gear
- Malfunction Of TCM
- Noise generated

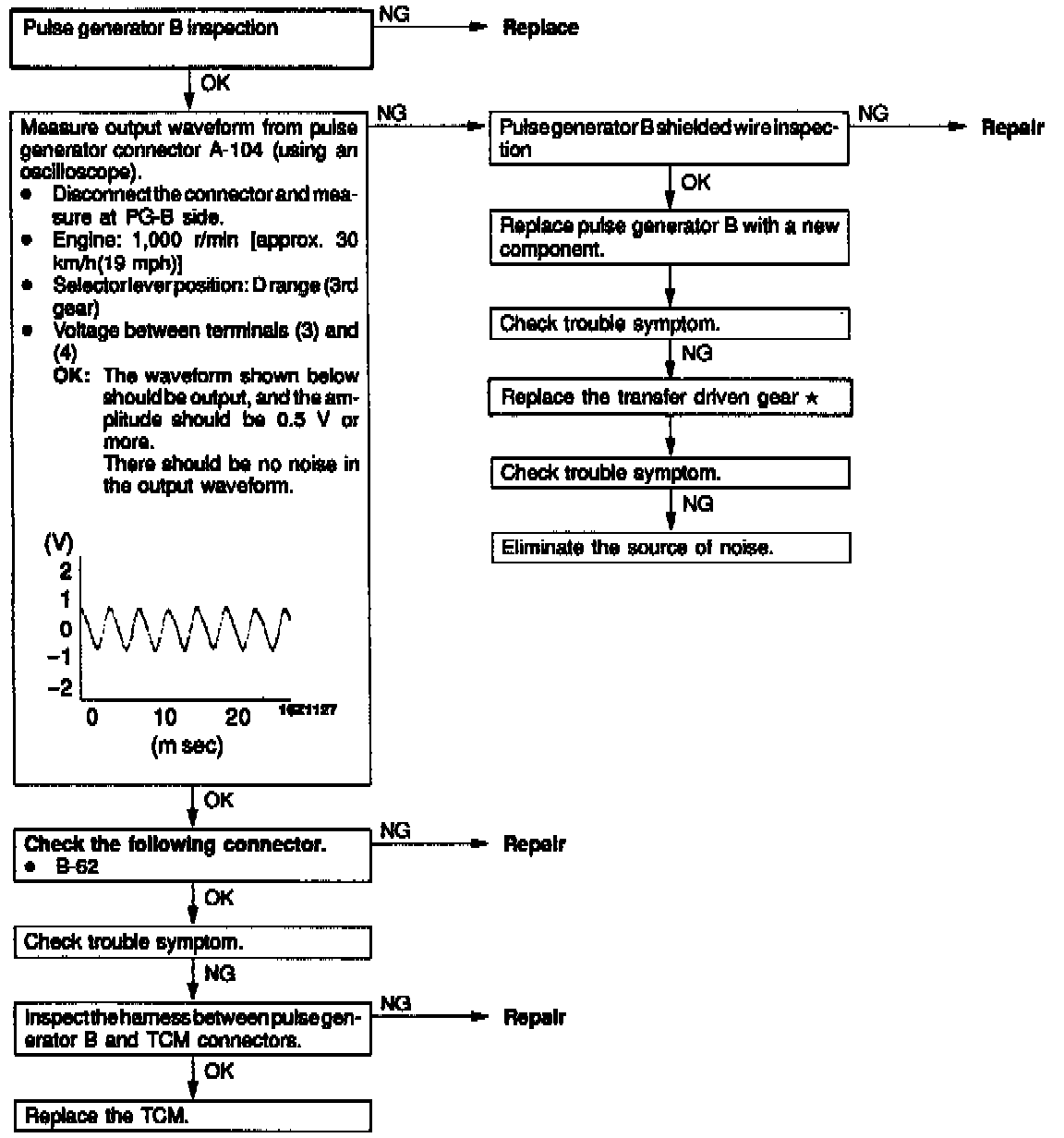

Diagnosis
