Talon AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
1, 2 and 3 Digit Codes
>>
15
>>
Antilock Brakes and Traction Control System
Antilock Brakes and Traction Control System

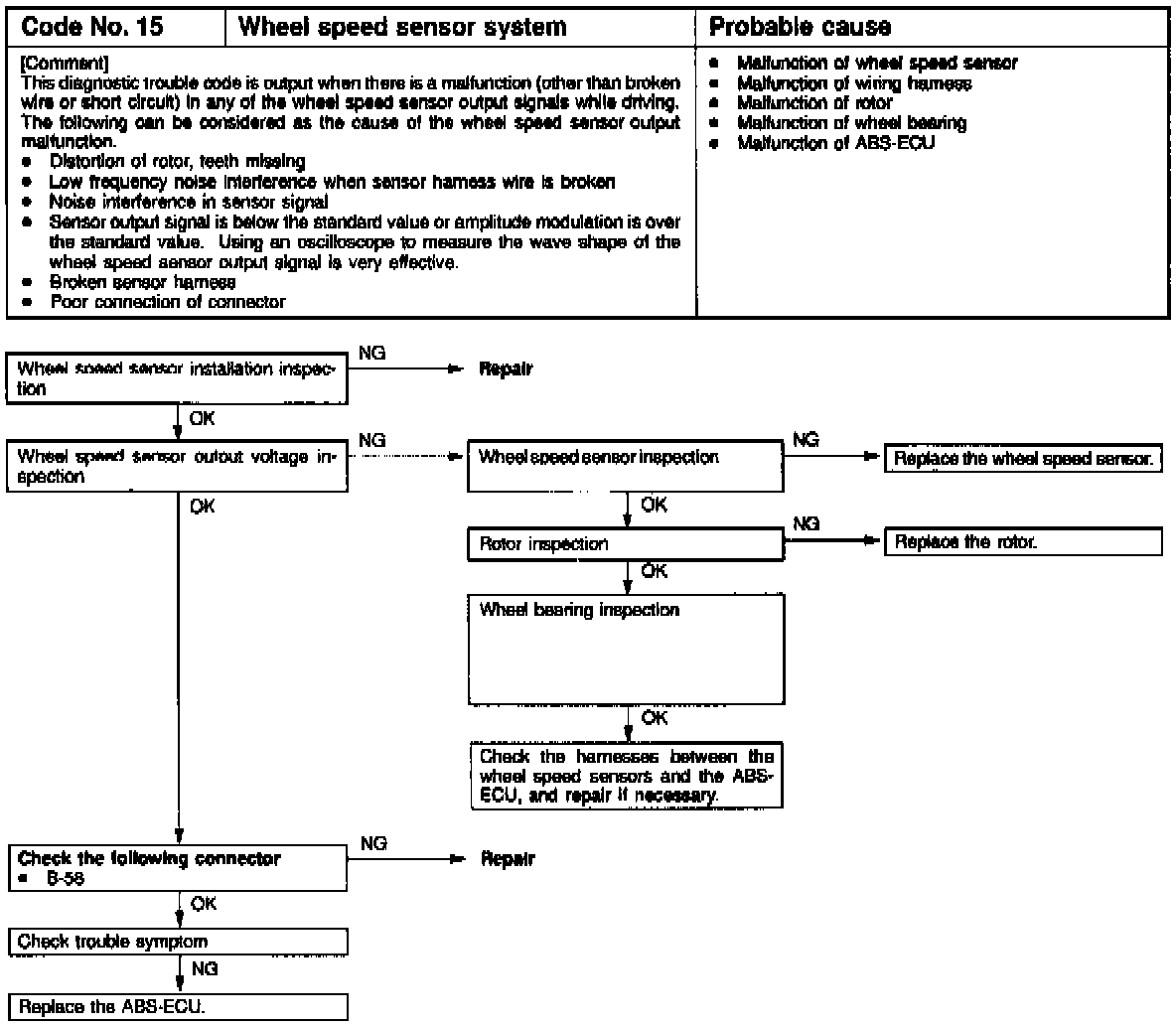

Fig 16 Code 15: Wheel Speed Sensor System:
