P Codes

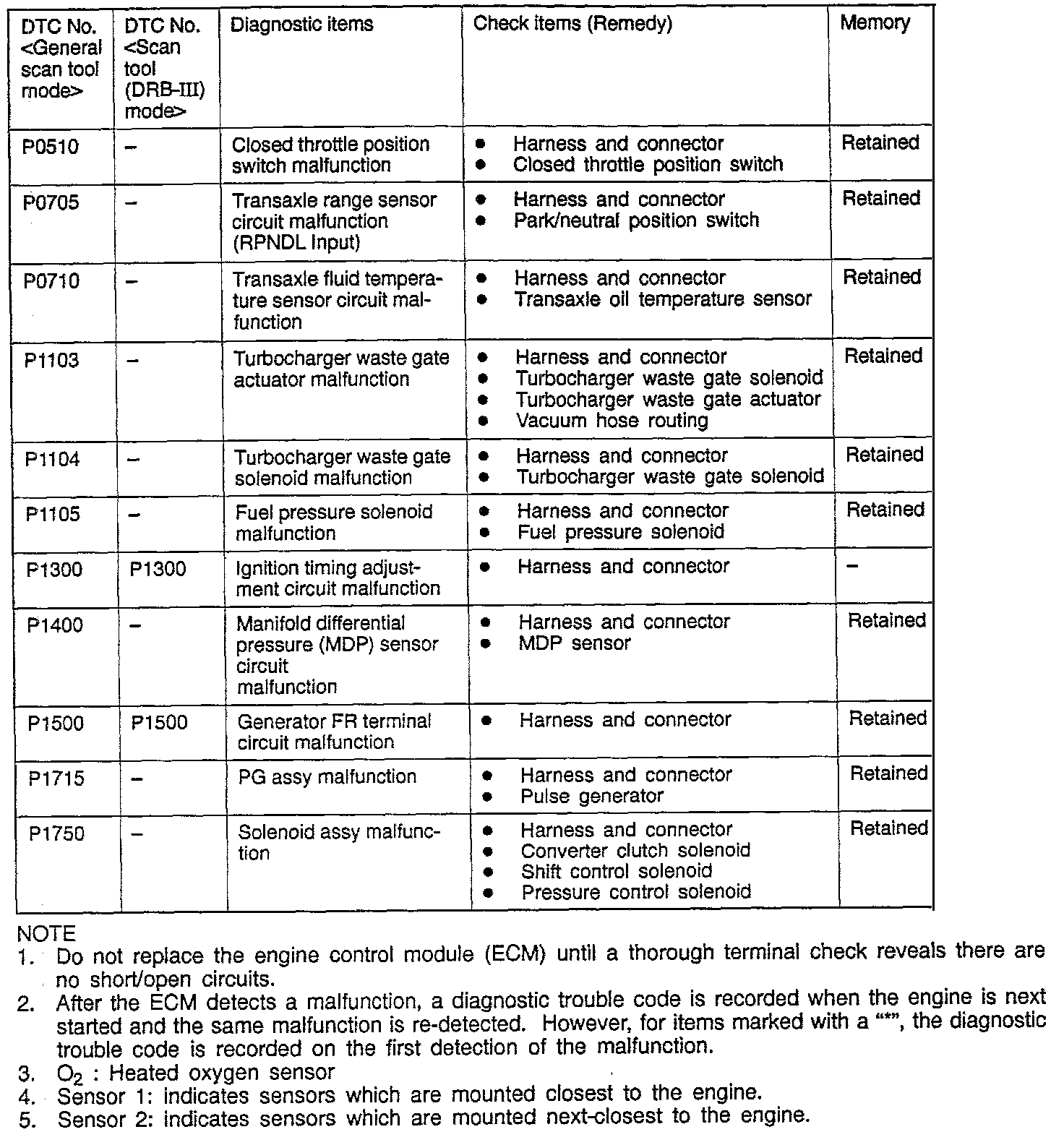

NOTES:

1. Do not replace the engine control module (ECM) until a thorough terminal check reveals there are no short/open circuits
2. After the ECM detects a malfunction, a diagnostic code is recorded when the engine is next started and the same malfunction is re-detected. However, for items marked with an asterisk (*), the diagnostic trouble code is recorded on the first detection of the malfunction.
3. O2: Heated Oxygen Sensor
4. Sensor 1: indicates sensors which are mounted closest to the engine.
5. Sensor 2: indicates sensors which are mounted next-closest to the engine.
