Crankshaft Position Sensor: Service and Repair

Crankshaft Position Sensor:





Pre-Removal
- Timing Belt

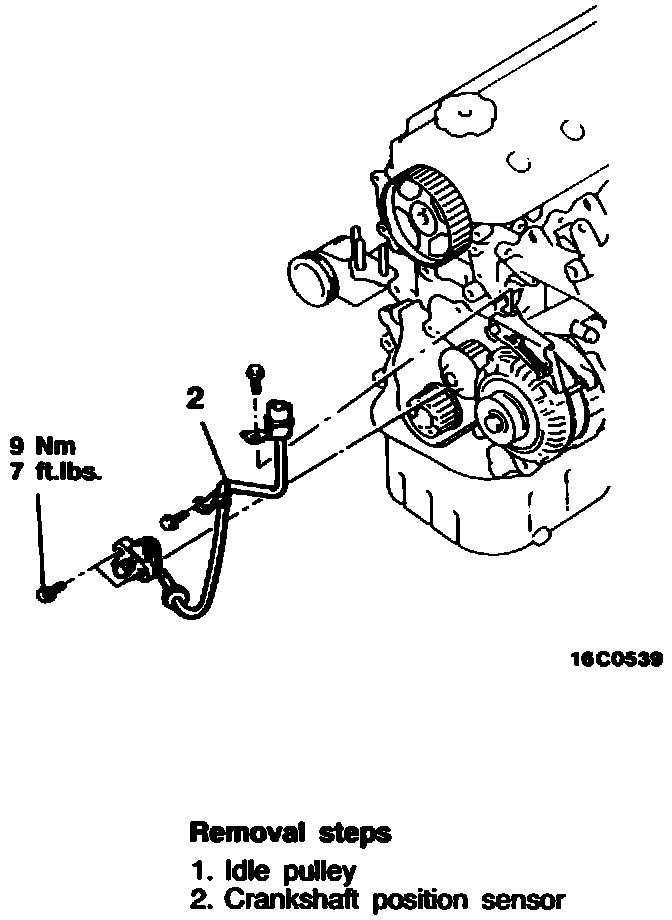

REMOVE
^ Crankshaft position sensor

INSTALL
^ Crankshaft position sensor

Post-Installation
- Timing Belt
