Home >> Eagle >> 1996 >> Summit L4-1795cc 1.8L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations

Computers and Control Systems: Locations

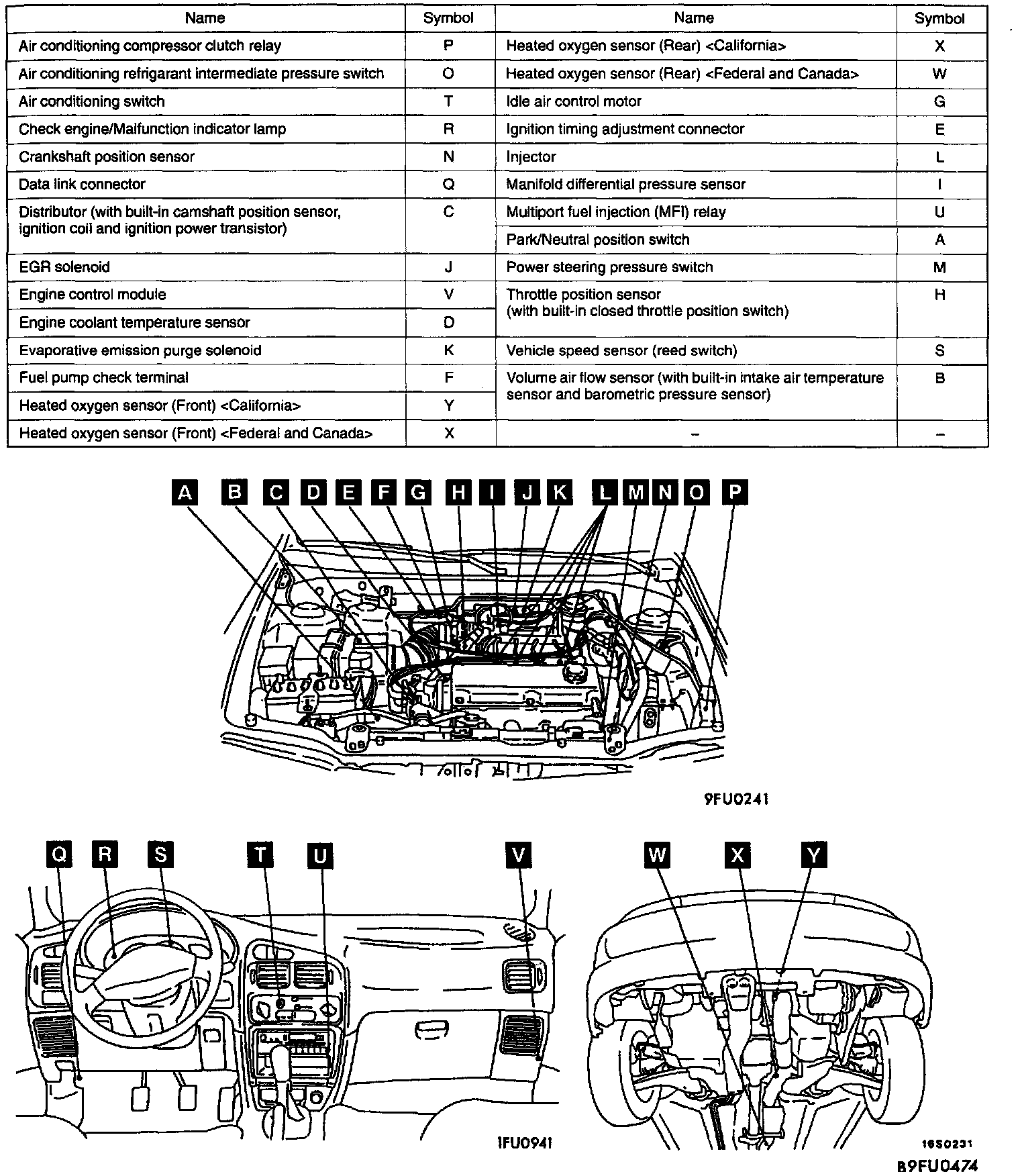

Component Index

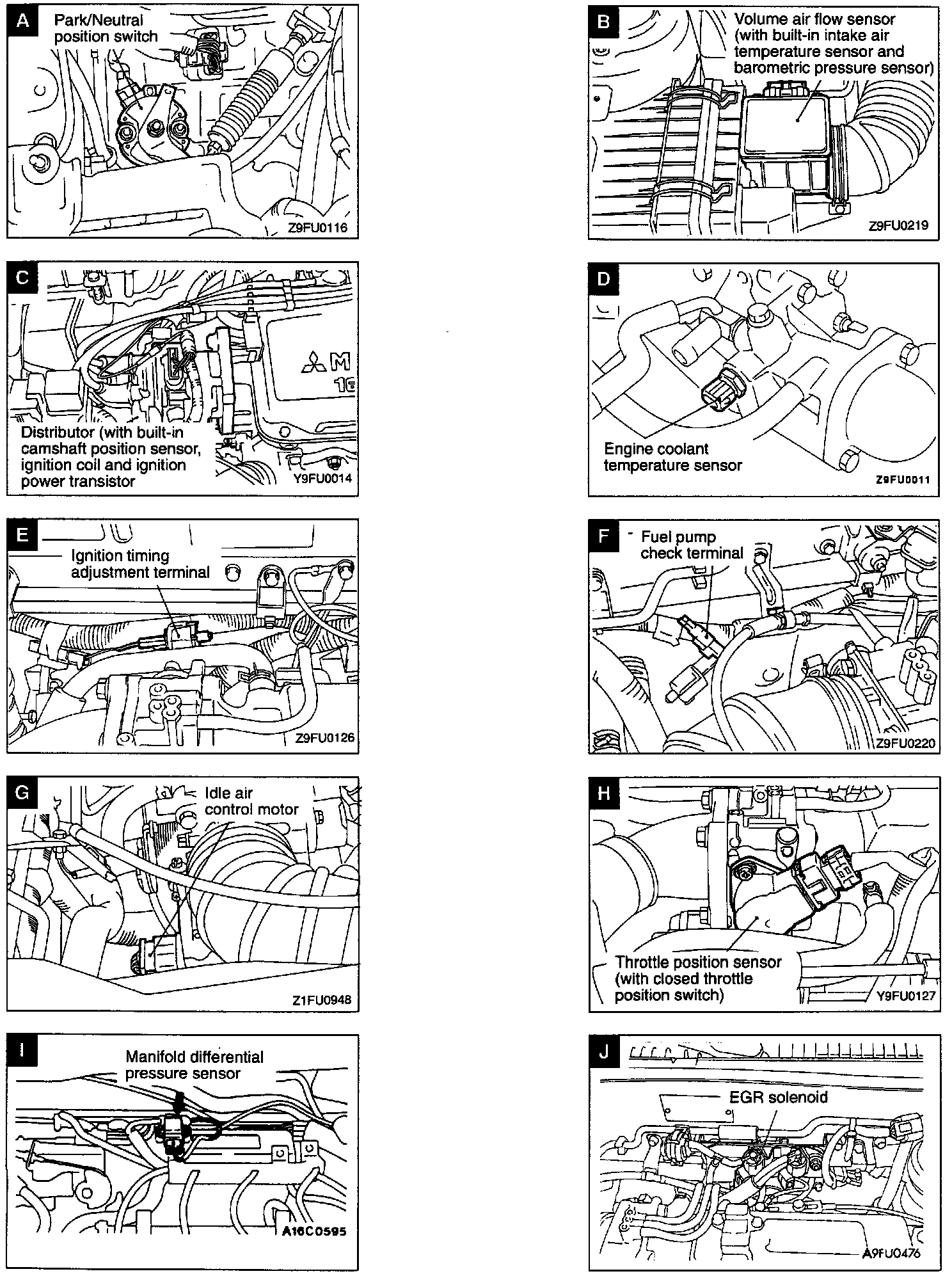

Views A - J

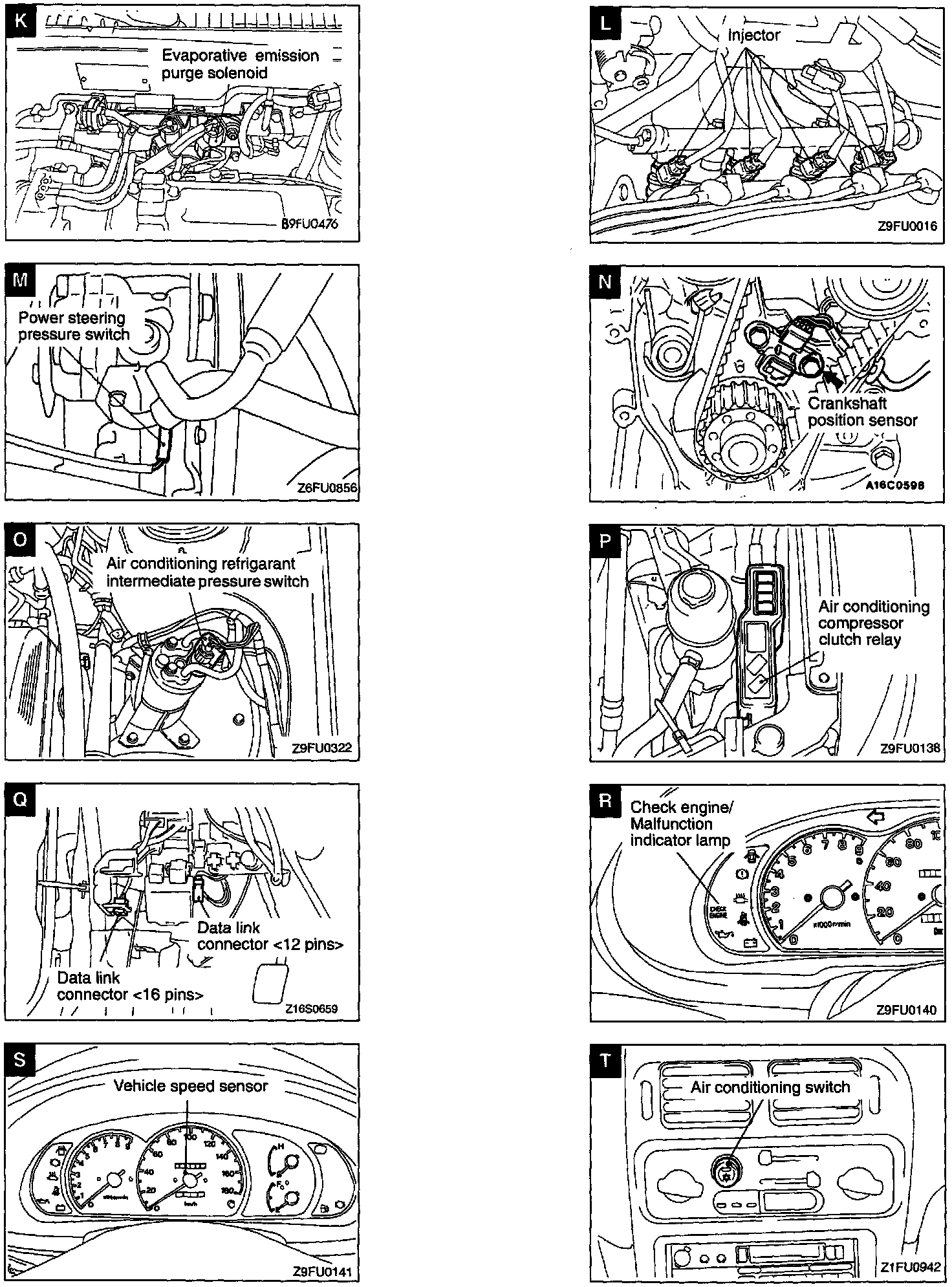

Views K - T

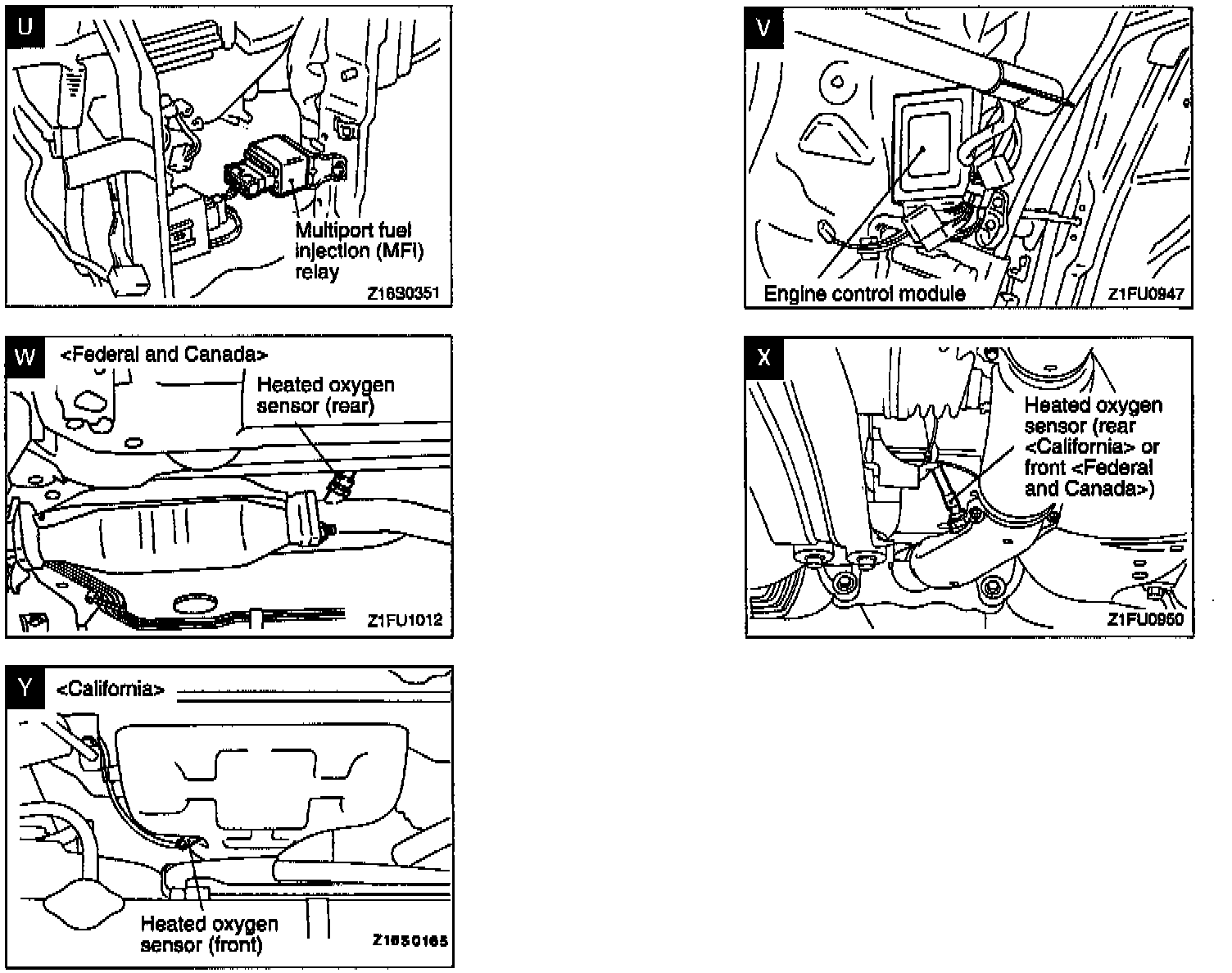

Views U - Y
