Symptom Related Diagnostic Procedures

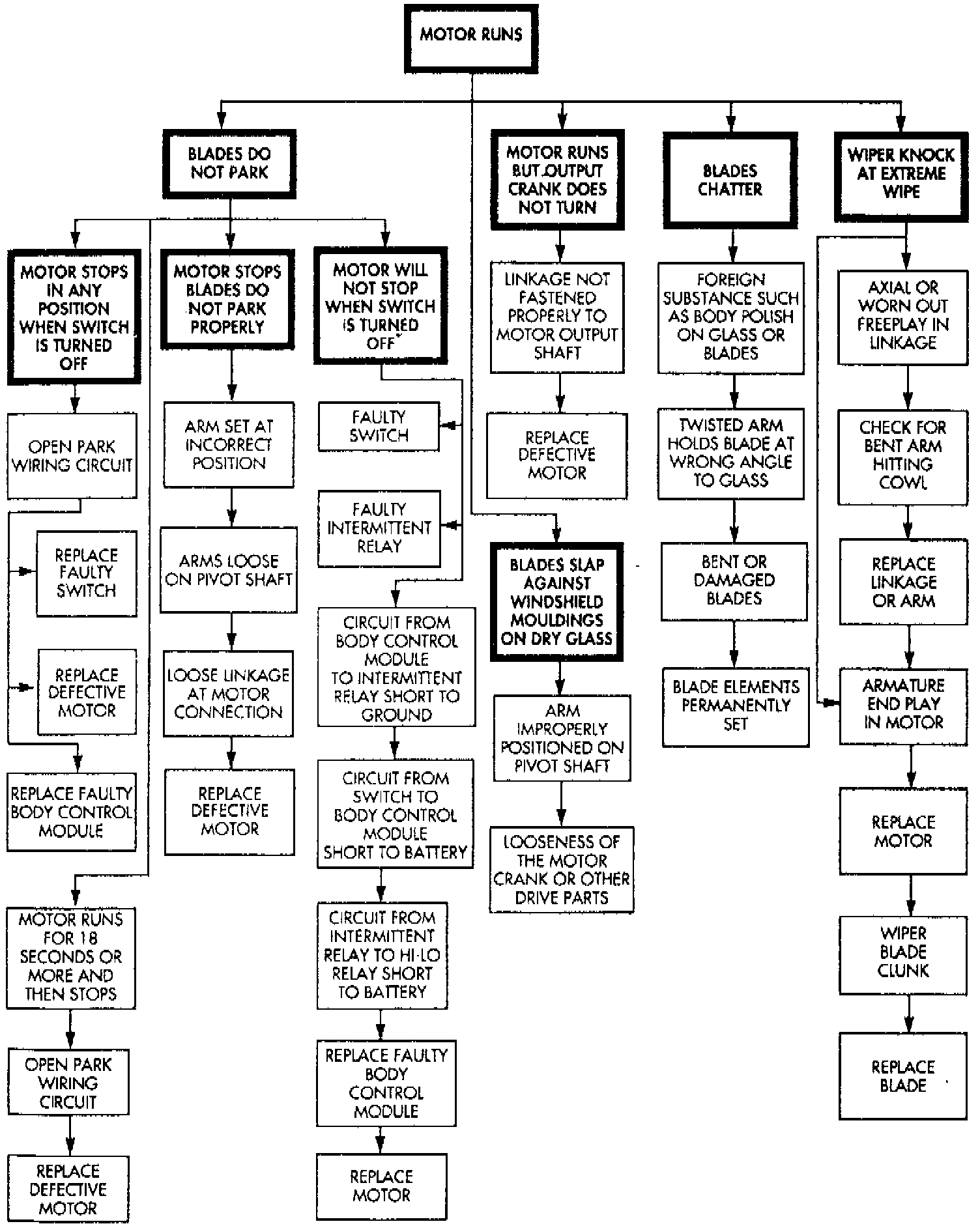

Fig.8 Windshield Wiper and Washer 1/2:

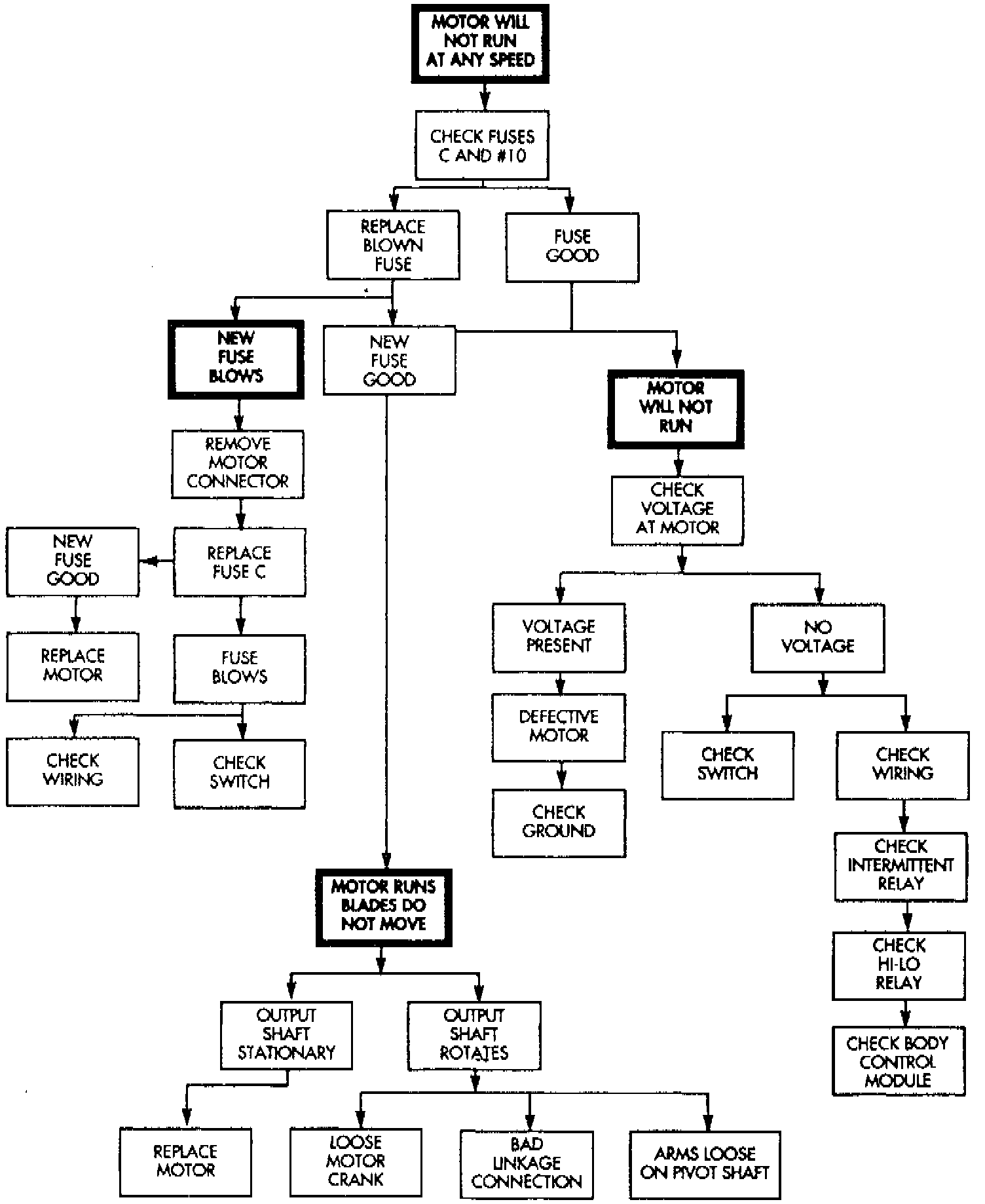

Fig.8 Windshield Wiper and Washer 2/2:
