Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Charts >> Test 107A Wipers Inoperative In Intermittent Mode >> Part 1 of 2

Part 1 of 2

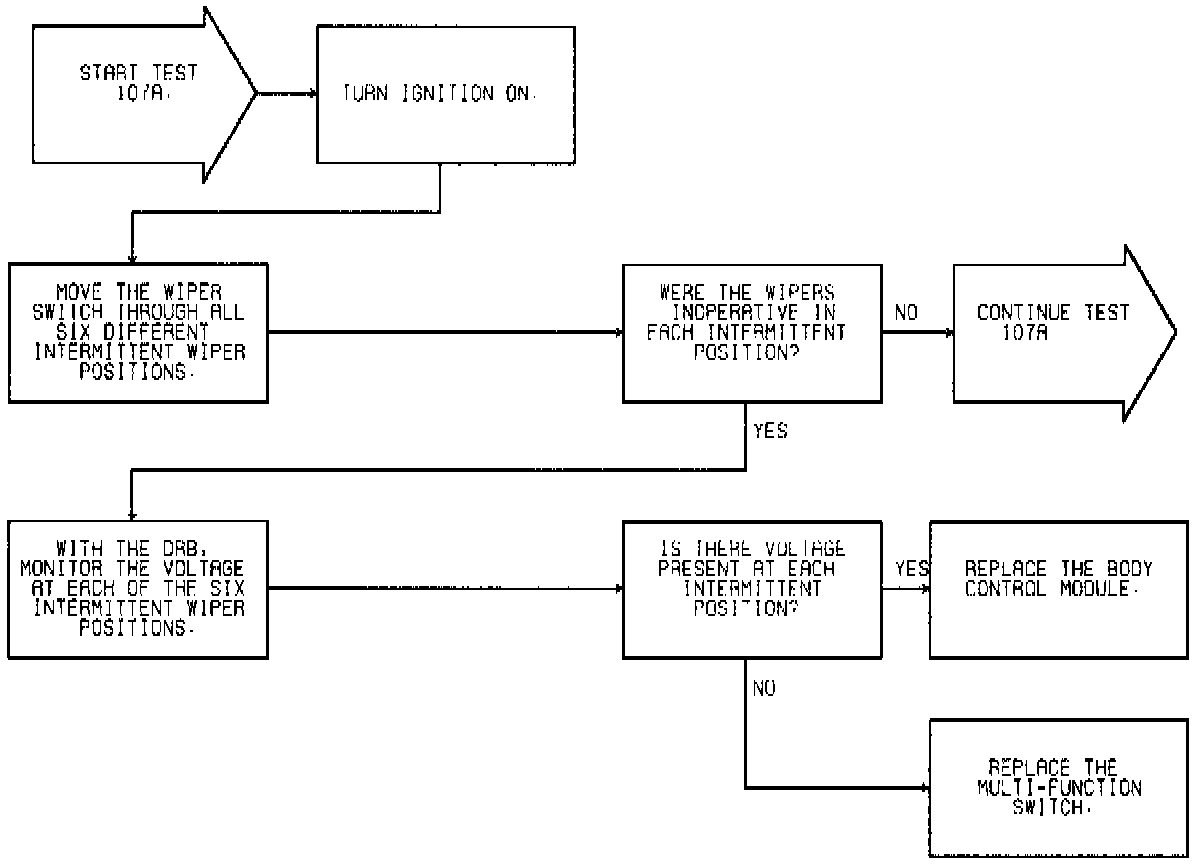

Fig.34 Test 107A: Wipers Inoperative In Intermittent Mode Part 1 of 2:
