Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Diagnostic Charts >> Test 106A Wipers Inoperative In Low Speed Mode >> Part 2 of 2

Part 2 of 2

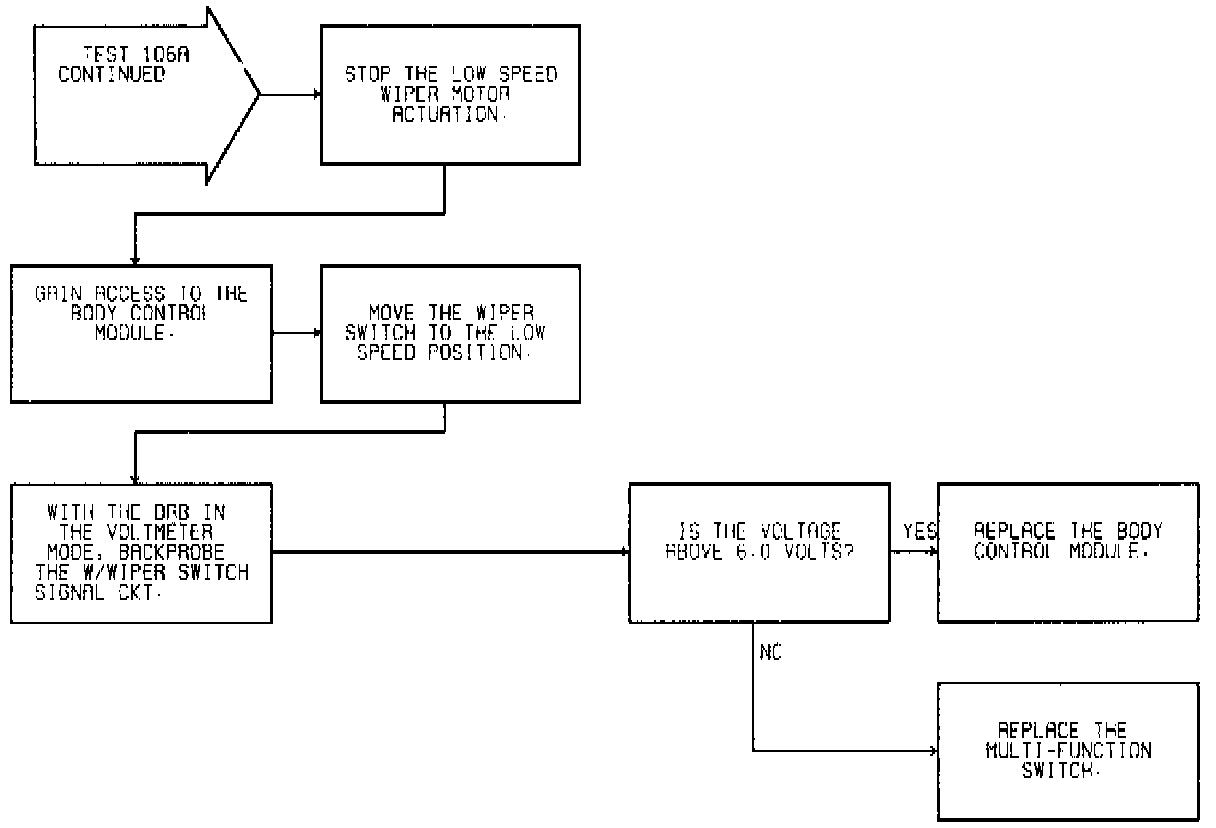

Fig.33 Test 106A: Wipers Inoperative In Low Speed Mode Part 2 of 2:
