Test 104C Wiper Motor Output Circuit, Test For Short
Test 104C Wiper Motor Output Circuit, Test For Short

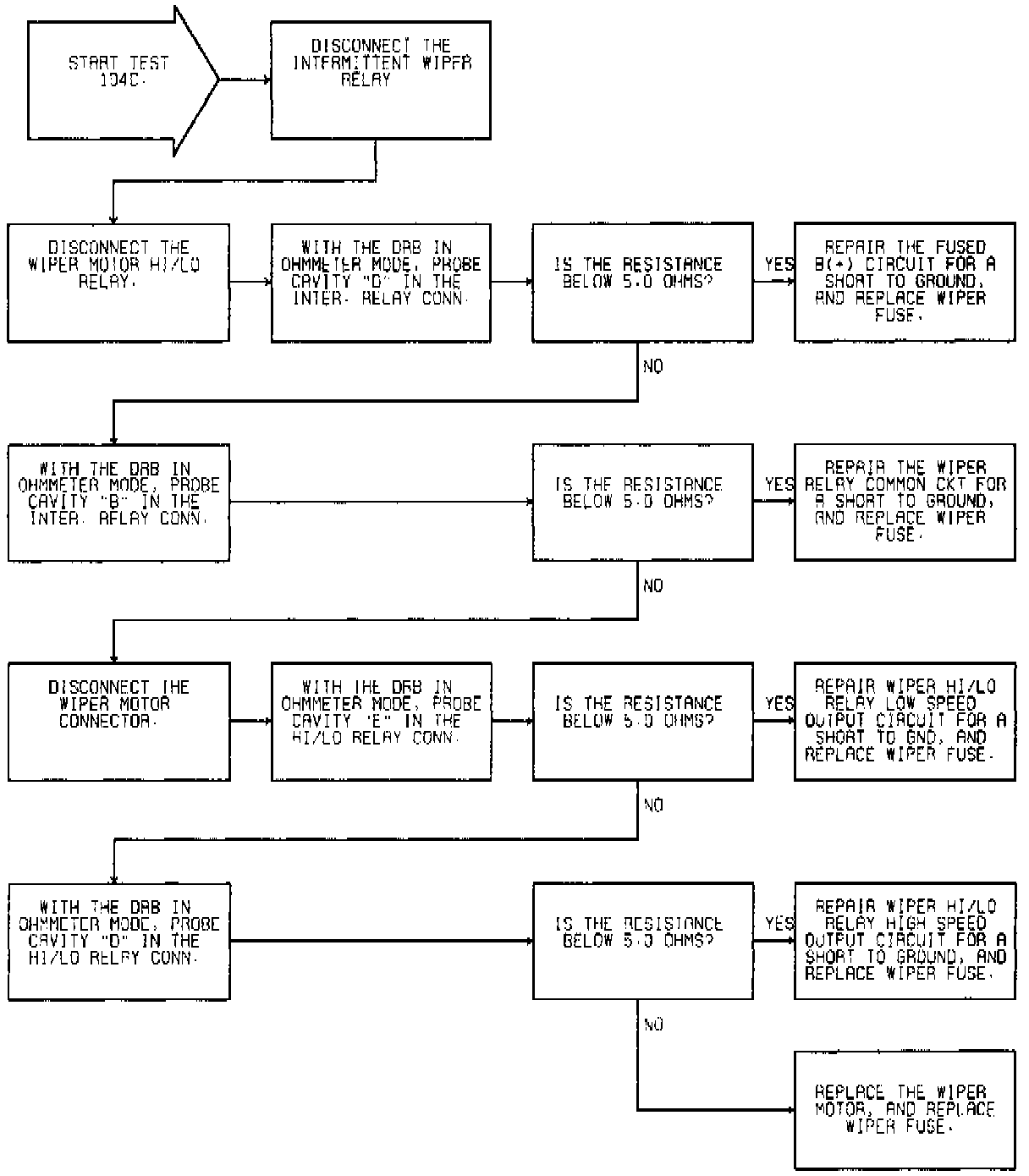

Fig.24 Test 104C: Wiper Motor Output Circuit, Test For Short:
