Windshield Washer Nozzle - Freeze-Up

NO: 08-20-95 Rev. A

GROUP: Electrical

DATE: Jul. 7, 1995

SUBJECT:
Windshield Washer
Nozzle Freeze-Up

THIS BULLETIN SUPERSEDES TECHNICAL SERVICE BULLETIN 08-20-95 DATED MAY 5, 1995 WHICH SHOULD BE REMOVED FROM YOUR FILES. THE PART HAS BEEN CHANGED. ALL REVISIONS ARE MARKED WITH **ASTERISKS**.

MODELS:
1993 - 1995 (LH) Concorde/Intrepid/Vision/LHS/New Yorker

SYMPTOM/CONDITION:

In low ambient temperatures, the washer nozzles may become inoperative due to moisture freezing in the nozzle.

PARTS REQUIRED:

1 **4805010** Valve, Windshield Washer Check

REPAIR PROCEDURE:

This bulletin involves adding a check valve to the windshield washer system.

1. Locate and remove existing windshield washer hose in-line connector located just in front of the left hand shock tower.

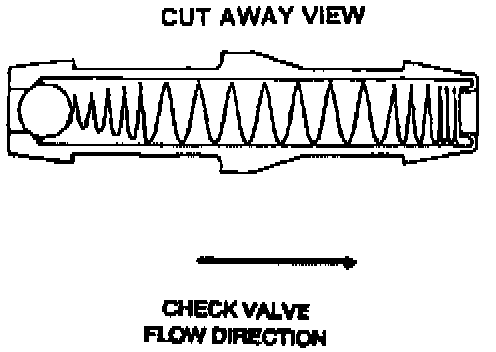

2. Install check valve, **P/N 4805010**, making sure to get the ball end of valve toward the reservoir.

POLICY: Reimbursable within the provisions of the warranty.

TIME ALLOWANCE:
Labor Operation No: 23-43-20-92 0.2 Hrs.

FAILURE CODE: P8 - New Part
