Differential Carrier Recondition

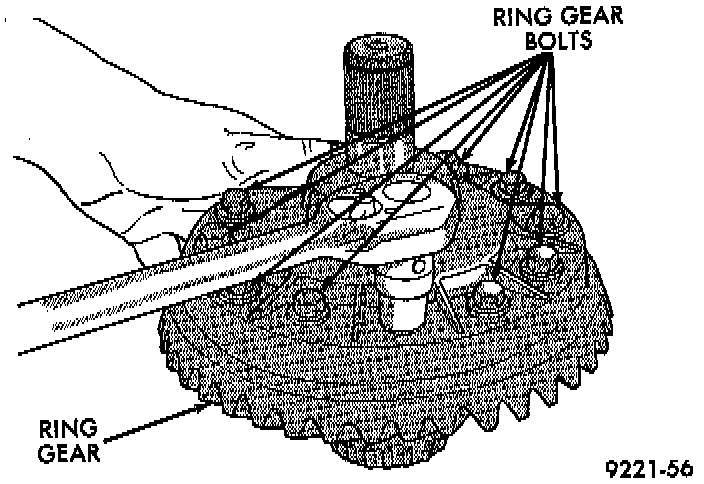

Remove Ring Gear Bolts:

Tap Off Ring Gear:

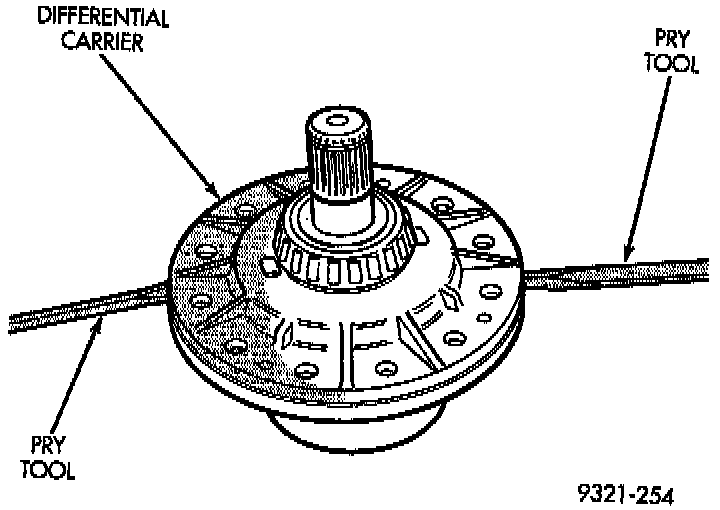

Pry Differential Carrier Apart:

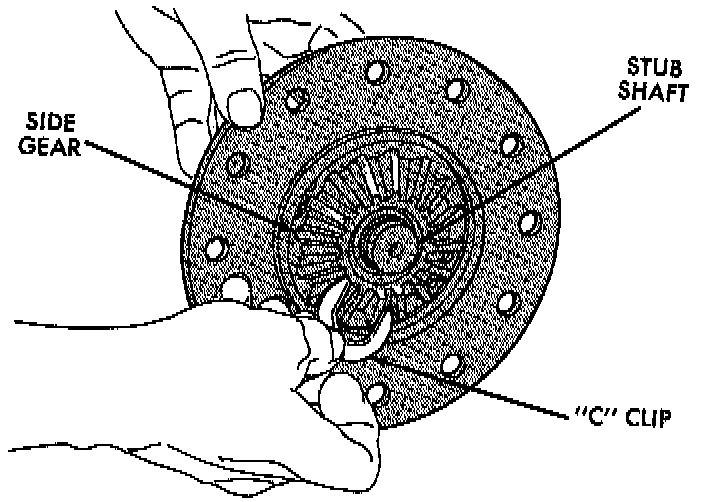

Remove C-Clip:

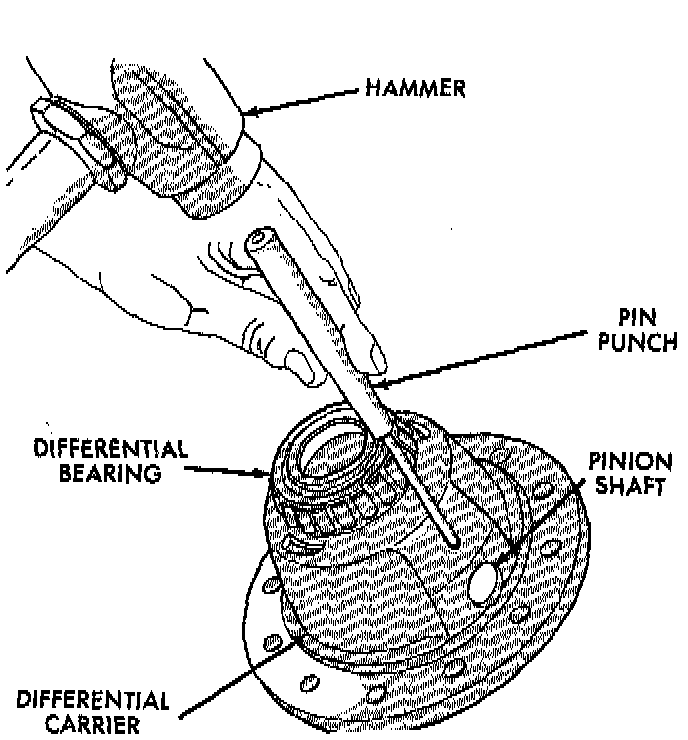

Remove Pinion Shaft Roll Pin:

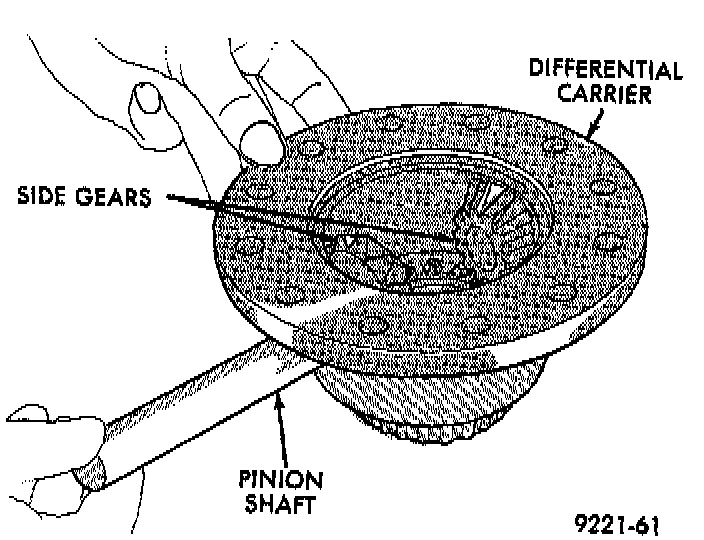

Slide Out Differential Pinion Shaft And Remove Pinion Gears And Side Gears:

CAUTION: Ring gear bolts are not reusable. When reassembling use new bolts.

NOTE: Mark ring gear location, if reusing ring gear.

NOTE: When reassembling differential, line up notches on side of carrier.

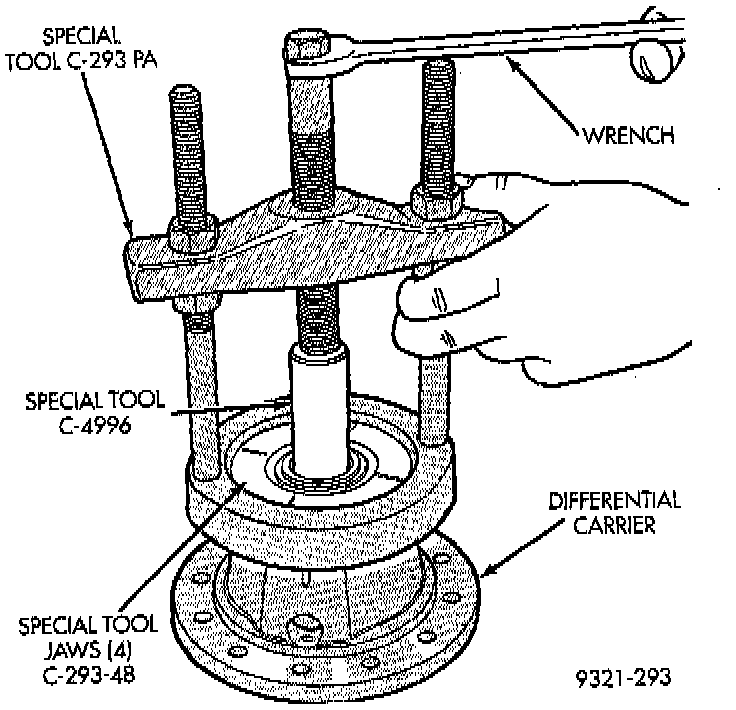

Carrier Bearing Removal:

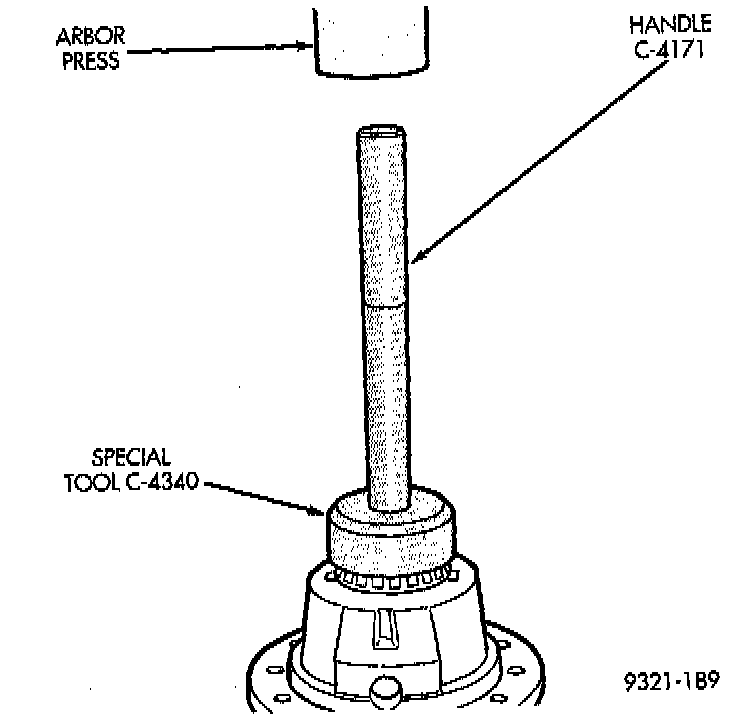

Carrier Bearing Installation:

NOTE: To remove inner and outer adjuster races, use Tool 6062-A, or equivalent. To install inner and outer adjuster races, use Tool 6522 and Tool C-4171, or equivalents.
