Home >> Eagle >> 1995 >> Vision V6-201 3.3L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Relays and Modules - A/T >> Control Module >> Diagrams >> Connector Views

Connector Views

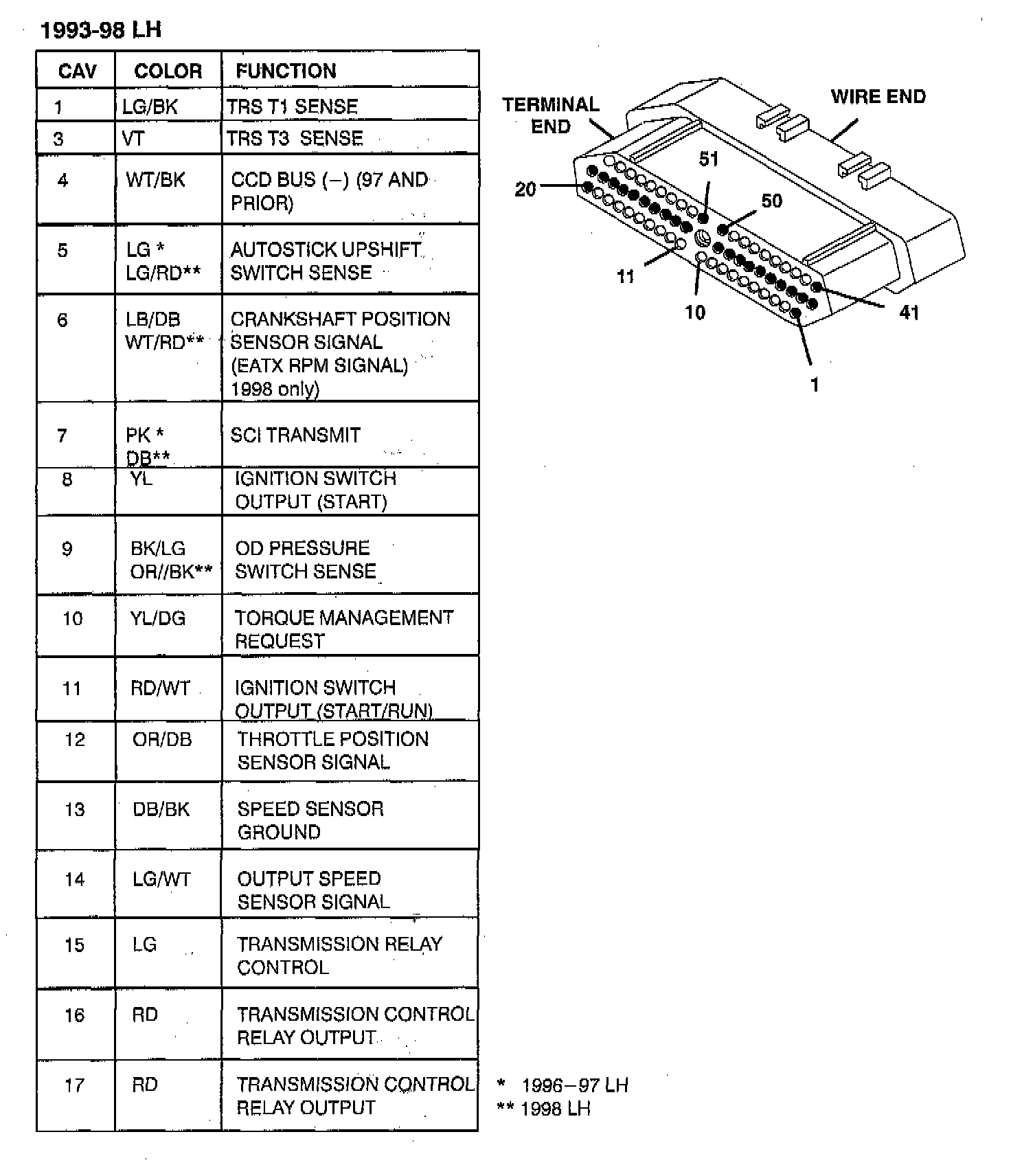

Part 1 Of 2:

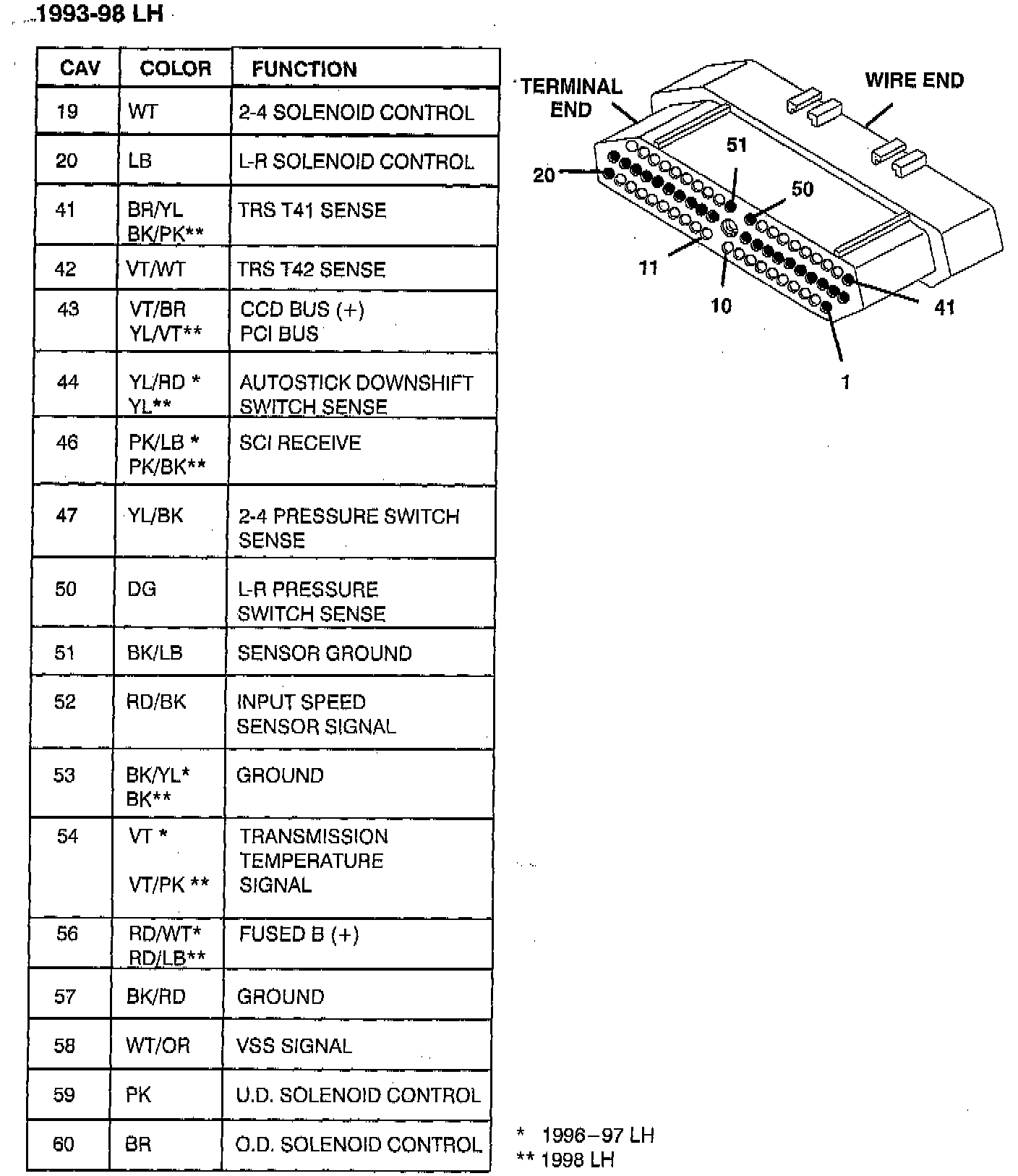

Part 2 Of 2:

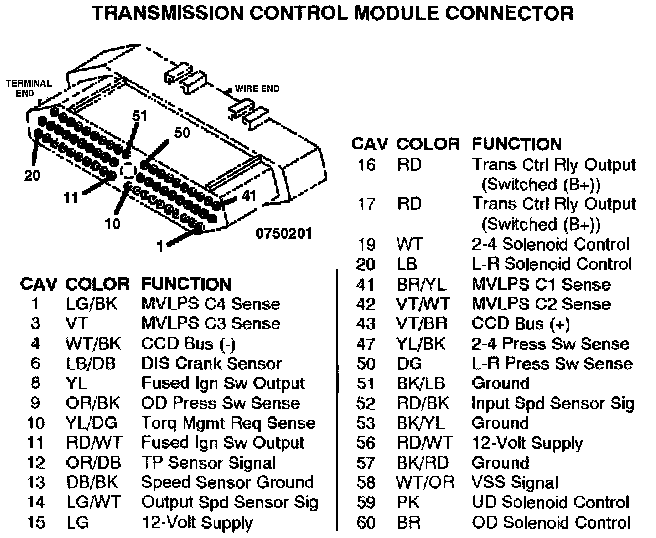

Transmission Control Module Connector:



Driver Front Corner Of Engine Compartment:
