Planetary Geartrain

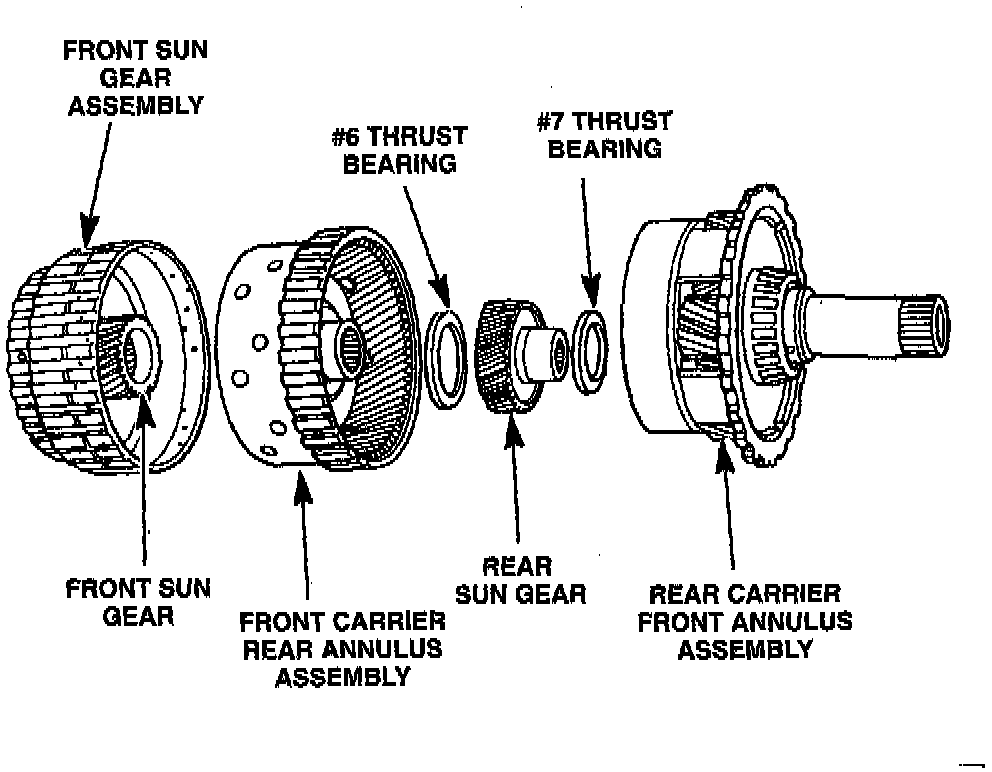

Planetary Geartrain Assemble






The entire planetary gear-train is located behind the input clutch assembly and is inside the 2-4 and L/R clutch assemblies. The planetary gear-train consists of two sun gears, two planetary carriers, two annulus (ring) gears and one output shaft which is part of the rear carrier.
