Differential Vent - Leaks Fluid

NUMBER:
21-10-99

GROUP:
Transmission

Date:
June25, 1999

THIS BULLETIN SUPERSEDES TECHNICAL SERVICE BULLETIN 21-05-98 DATED
MARCH 20, 1998 WHICH SHOULD BE REMOVED FROM YOUR FILES AND NOTED IN
THE BOUND TECHNICAL SERVICE BULLETIN BOOK, PUBLICATION NUMBER 81-
699-99003. ALL REVISIONS ARE HIGHLIGHTED WITH **ASTERISKS** AND
INCLUDE ADDITIONAL MODEL YEARS.

SUBJECT:
Auxiliary Differential Vent

OVERVIEW:
This bulletin involves installing an auxiliary differential vent and changing the differential fluid.

MODELS:
1993 -**2000** (LH) Concorde/Intrepid/LHS/New Yorker/Vision/300M
1997 -**2000** (PR) Prowler

DISCUSSION:
An auxiliary vent tube assembly has been released for service to provide improved differential case venting. In cold climate areas, under certain driving conditions, pressure can build up in the differential case forcing fluid out through the primary vent tube at the top of the differential. Fluid can collect on the top of the differential case and or drip to the ground.

SYMPTOM/CONDITION:
Differential fluid buildup near the differential vent and/or dripping on the ground.

DIAGNOSIS:
Inspect the top of the differential for fluid. Fluid may drip down the side to the ground.

PARTS REQUIRED:
1 05011589AA Vent Tube Assembly Kit
1 04549624 Mopar 75W-90 Gear Lubricant, 32 oz.

REPAIR PROCEDURE:

1. Clean all fluid from the differential case.
2. Drain the differential fluid by removing the differential drain and fill plugs.
3. Install the differential drain plug. Tighten to 7 Nm (60 in. lbs.).
4. Fill the differential with 32 ounces of Mopar 75W-90 Gear Lubricant, p/n 04549624.
5. Install the revised differential fill plug from the vent tube kit. Tighten to 47 Nm (35 ft.lbs.).

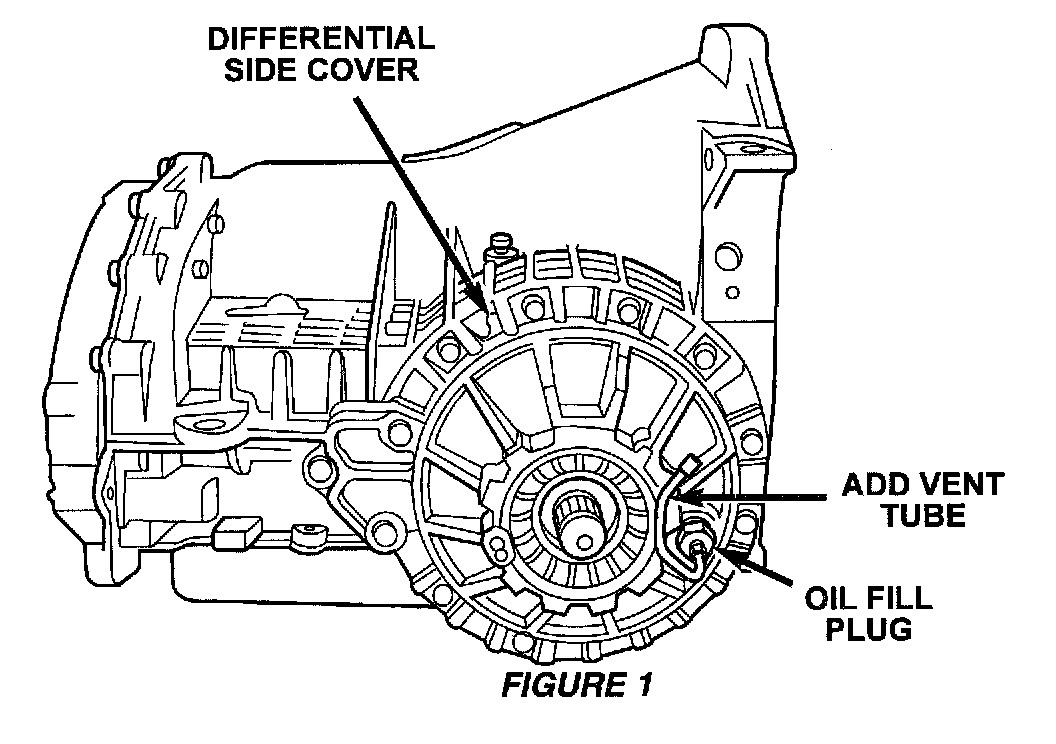

6. Install the new vent tube assembly into fill plug and orient the tube between ribs on the differential cover (Figure 1).

NOTE:
BE SURE VENT TUBE IS NOT CONTACTING ANY METAL SURFACES ON DIFFERENTIAL COVER.

POLICY: Reimbursable within the provisions of the warranty.

TIME ALLOWANCE:
Labor Operation No: 21-10-10-90 0.3 Hrs.

FAILURE CODE: P8 - New Part
