A/C System - Intermittently or Totally Inoperative
NO: 24-14-94GROUP: Air Conditioning
DATE: Oct. 7, 1994
SUBJECT:
Inoperative A/C System
MODELS:
1993 - 1995 (LH) Concorde/Intrepid/Vision/LHS/New Yorker
1995 (JA) Cirrus/Stratus
SYMPTOM/CONDITION:
Intermittent or total loss of air conditioning.
DIAGNOSIS:
Check Engine Diagnostic Trouble Codes (DTC's) with Mopar Diagnostic System (MDS) or Diagnostic Readout Box (DRB) for the presence of a High Pressure Fault or Low Pressure Fault. If the readings are taken during system malfunction and both high and low pressure fault readings are above 439 PSI, verify readings with a gauge set. If the low pressure reading is validated by a gauge set, the system should be checked for a low charge and refrigerant added as necessary. If readings are not validated by a gauge set, perform the repair procedure.
PARTS REQUIRED:
1 4723028 A/C Pressure Transducer Package ("Certified")
REPAIR PROCEDURE:
This bulletin involves replacing the A/C pressure transducer.
1. Disconnect the wire harness connector from the A/C pressure transducer.
NOTE:
A SLIGHT RELEASE OF PRESSURE TRAPPED IN THE FITTING MAY BE EXPERIENCED. IT IS NOT NECESSARY TO DISCHARGE THE REFRIGERANT SYSTEM.
2. Remove the transducer with a counterclockwise rotation using a 3/4" open end wrench.
3. Install "certified" transducer and torque to 6 N-m (50 in.lbs.) using new O-ring provided.
4. Connect wire harness connector.
NOTE:

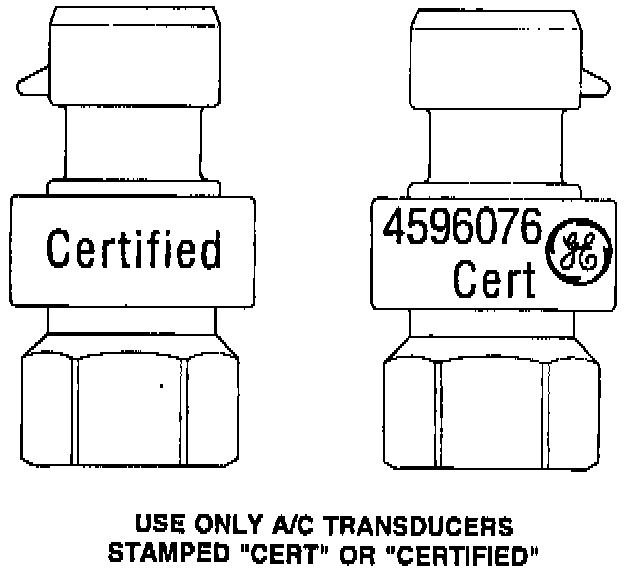

USE ONLY "CERTIFIED" REPLACEMENT PARTS. "CERT" OR "CERTIFIED" WILL BE STAMPED ON THE TRANSDUCER AS ILLUSTRATED.
POLICY:
Reimbursable within the provisions of the warranty.
TIME ALLOWANCE:
Labor Operation No: 24-35-71-93 0.2 Hrs.
FAILURE CODE: P8 - New Part
