ABS - Service Manual Updates

NO: 05-17-94

GROUP: Brakes

DATE: Sep. 16, 1994

SUBJECT:
Diagnostic Manual
Revision - Teves
Brake Diagnostics

1993 - 1995 (LH) Concorde/Intrepid/Vision/LHS/New Yorker
1992 - 1995 (XJ) Cherokee
1992 - 1995 (YJ) wrangler
1993 - 1995 (ZJ) Grand Cherokee/Grand Wagoneer

DISCUSSION:

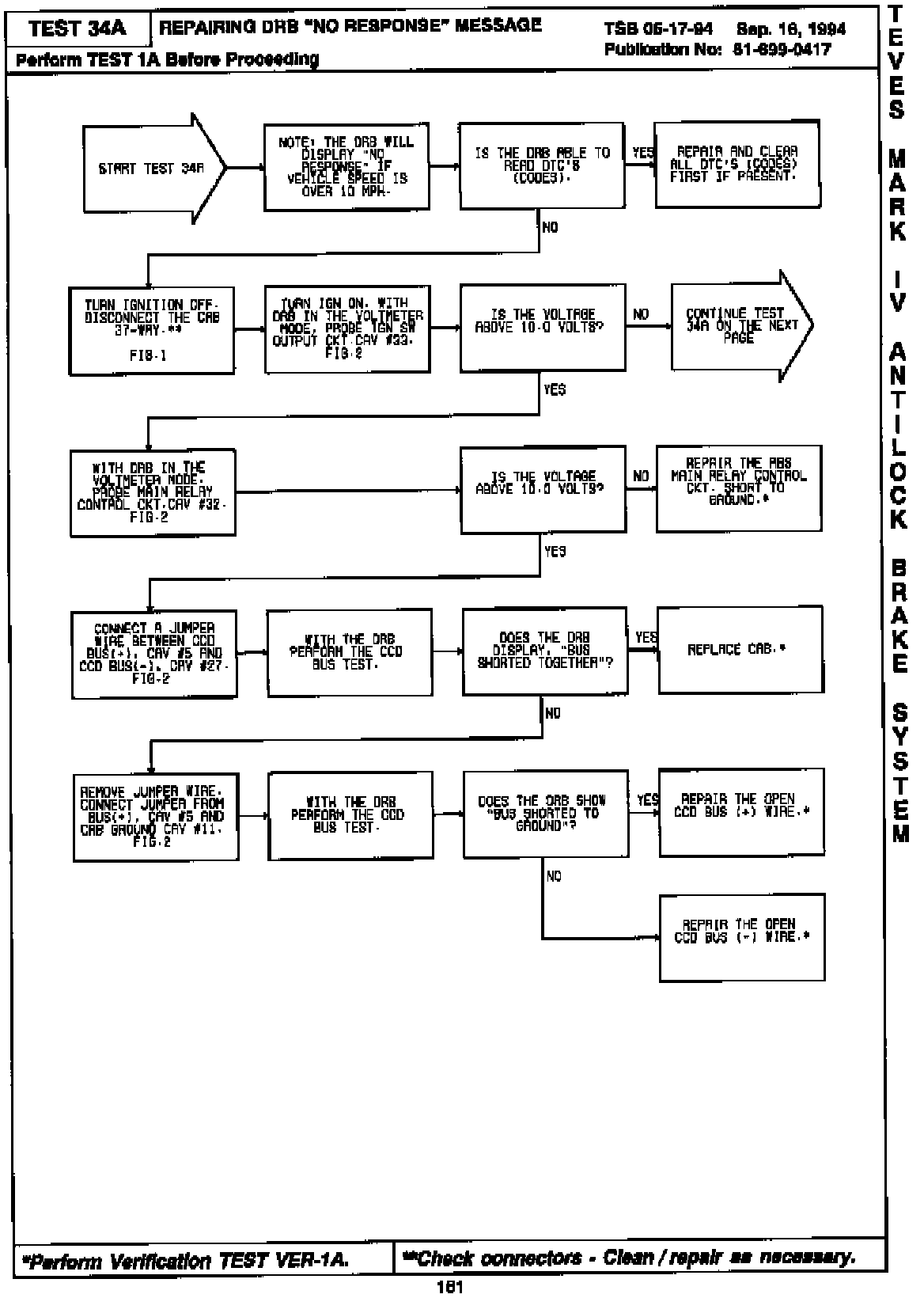

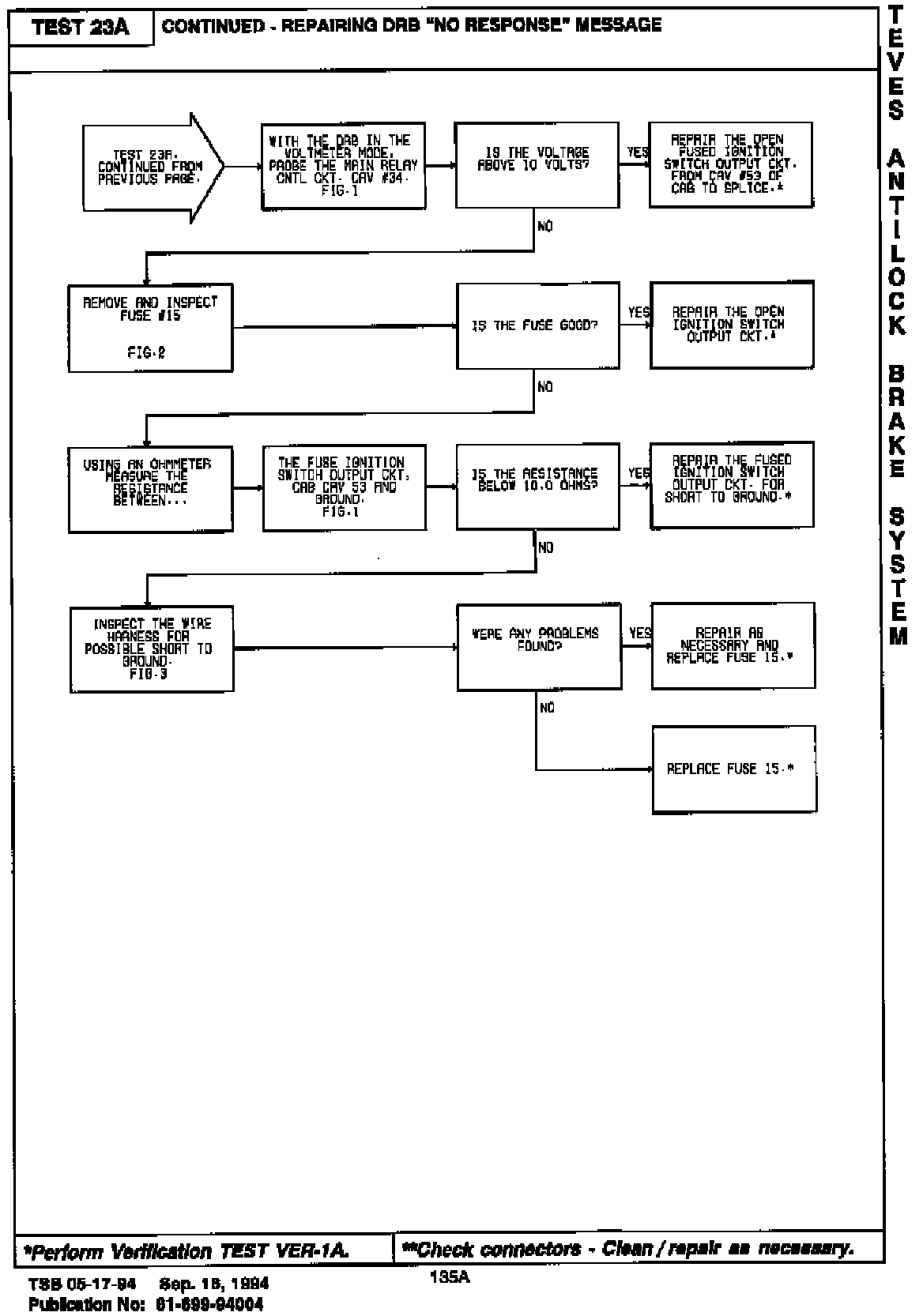

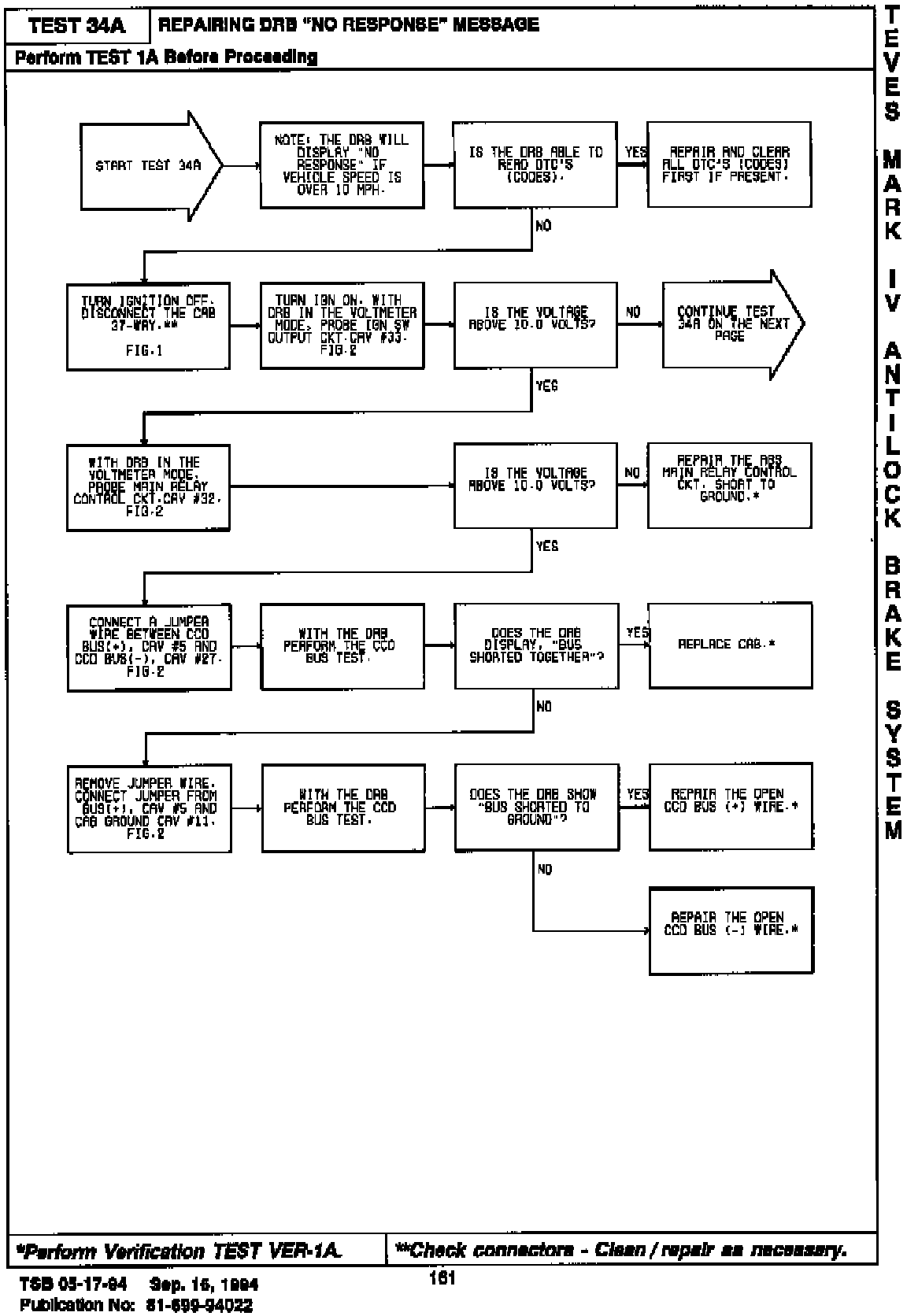

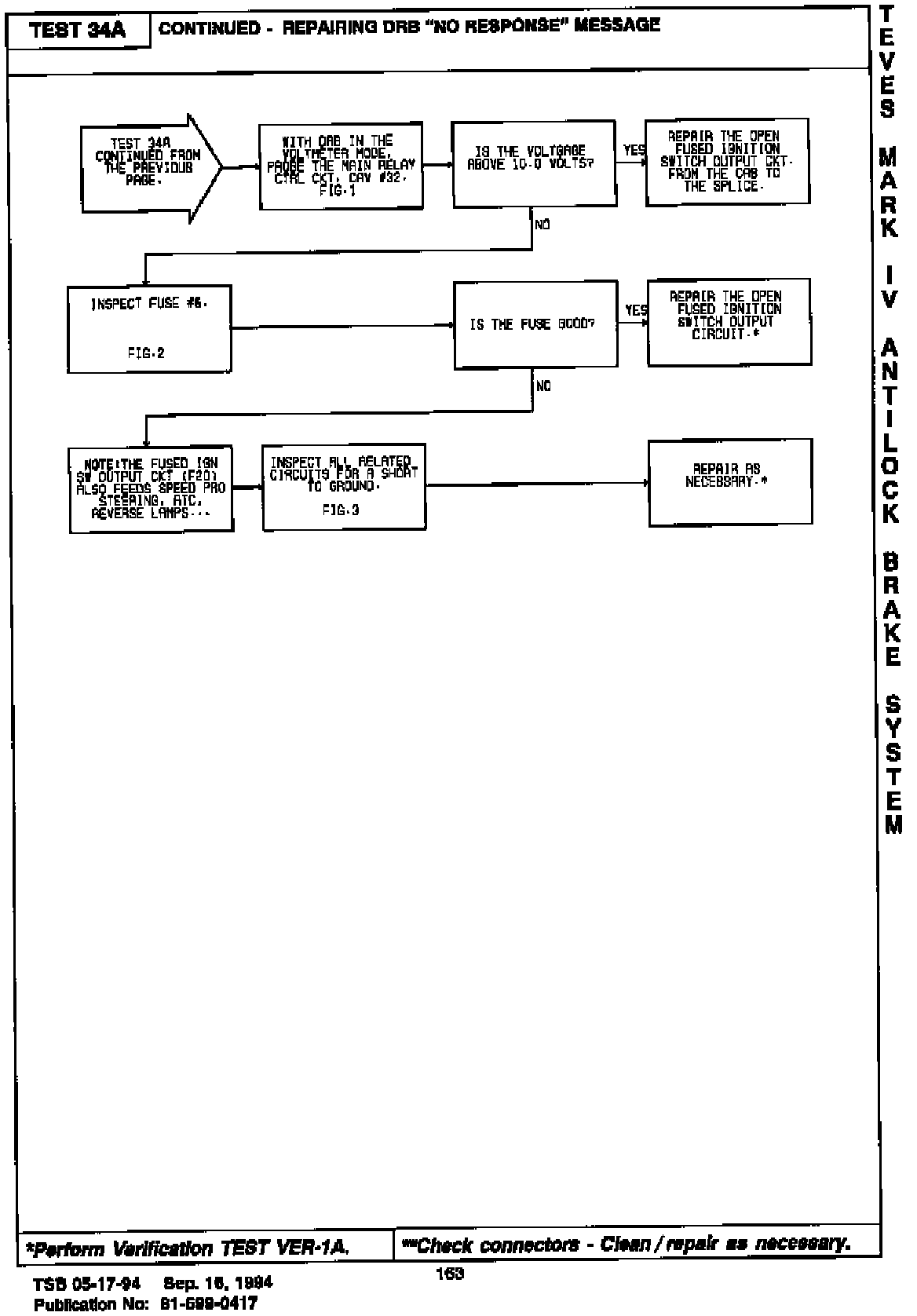

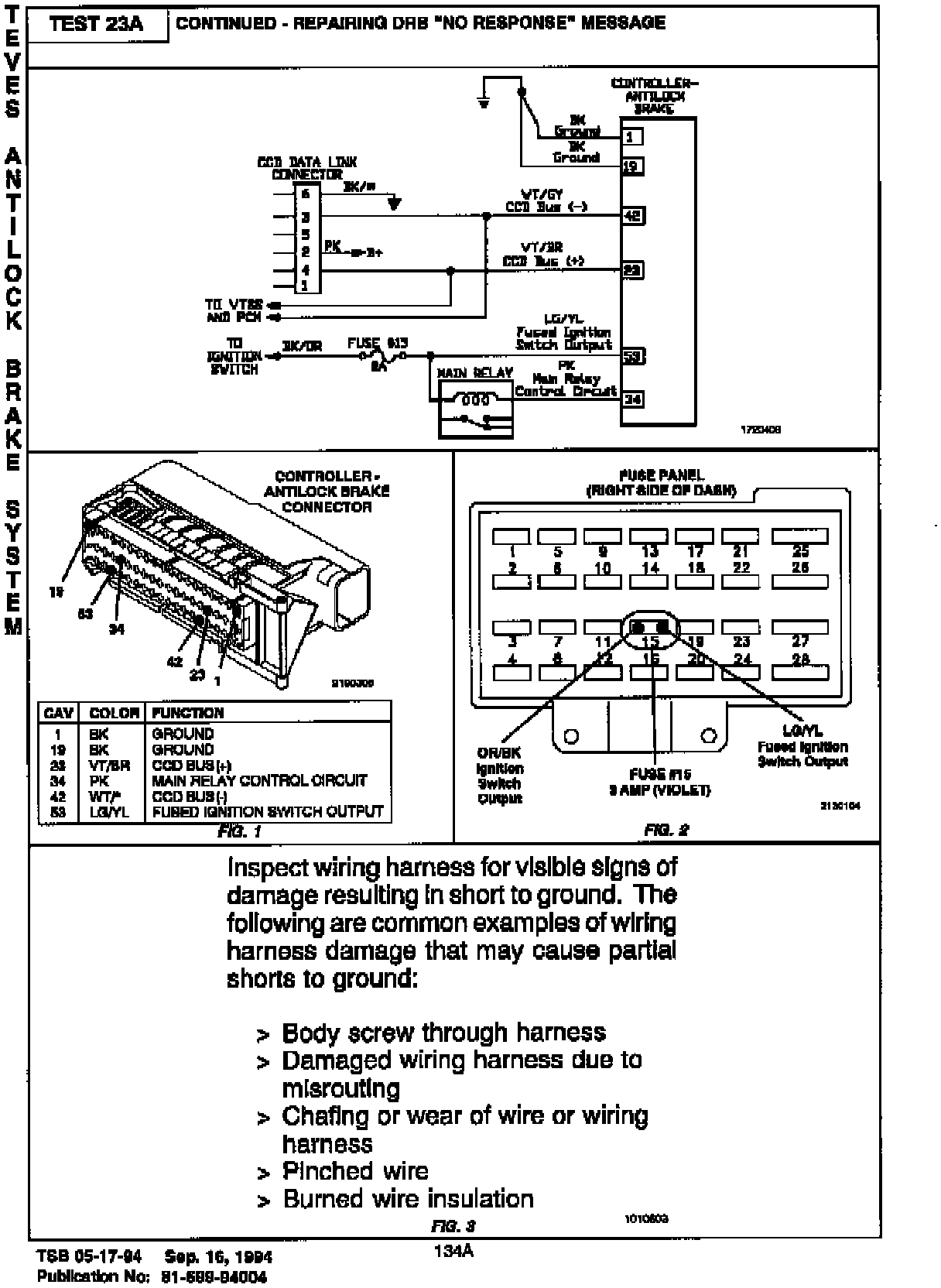

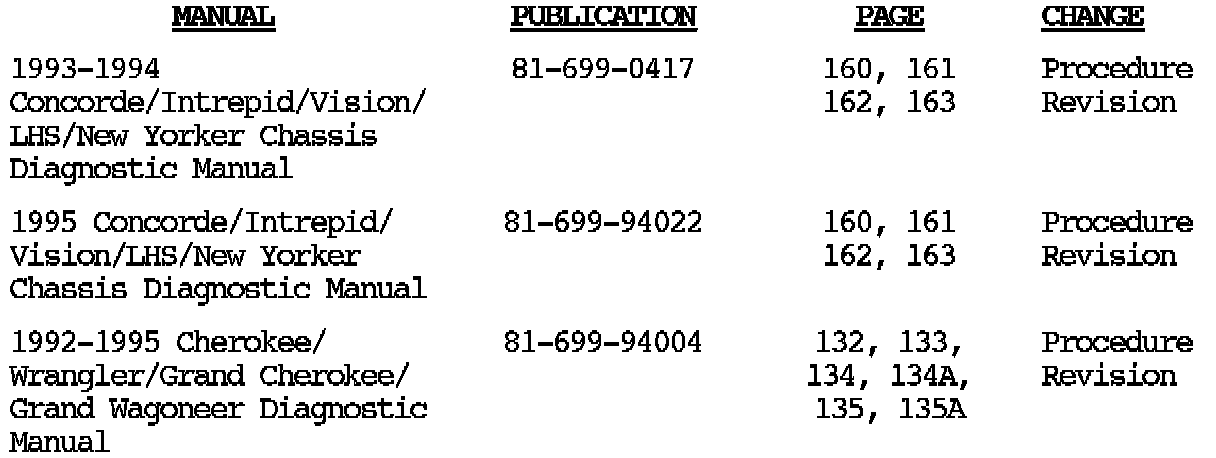

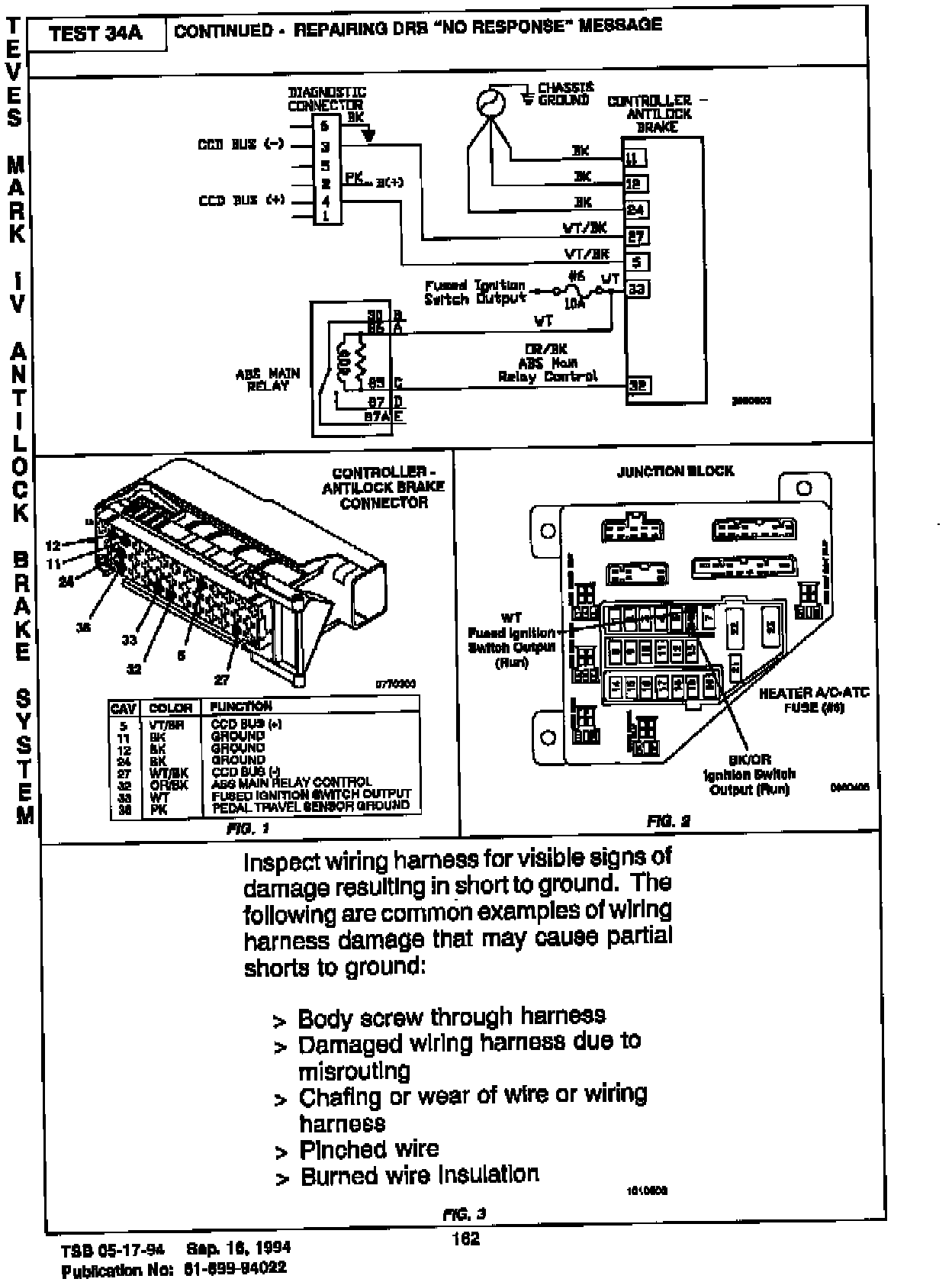

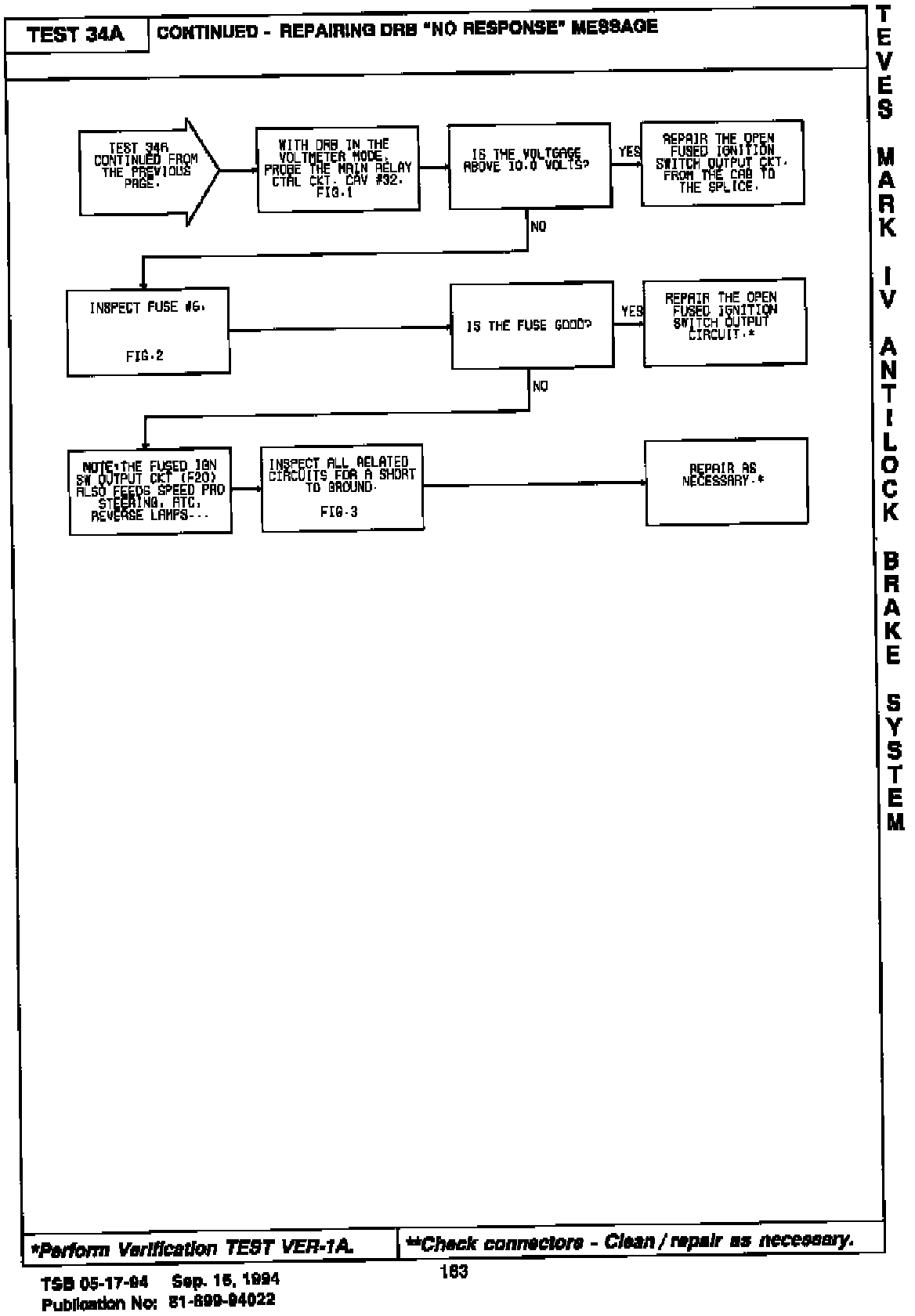

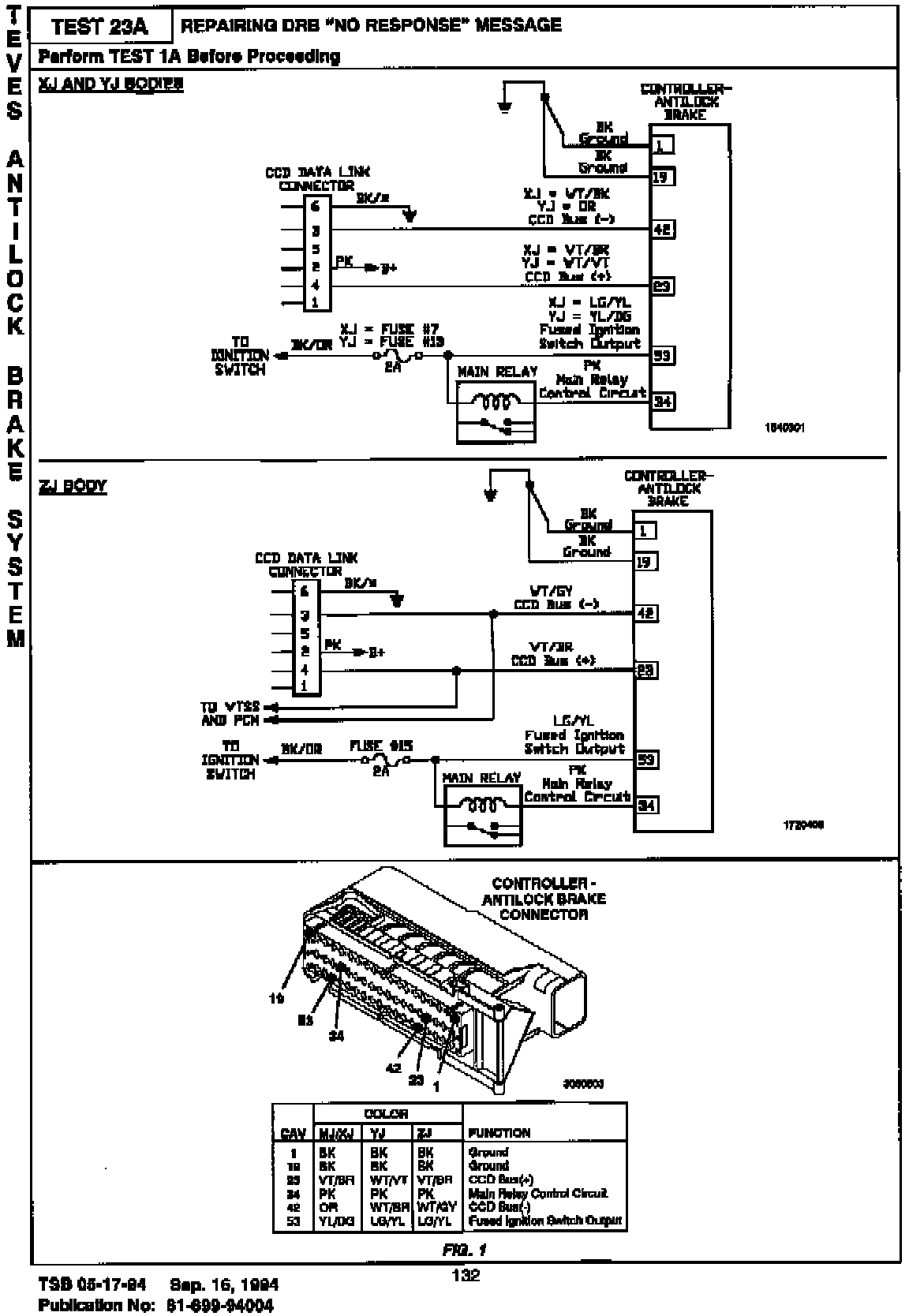

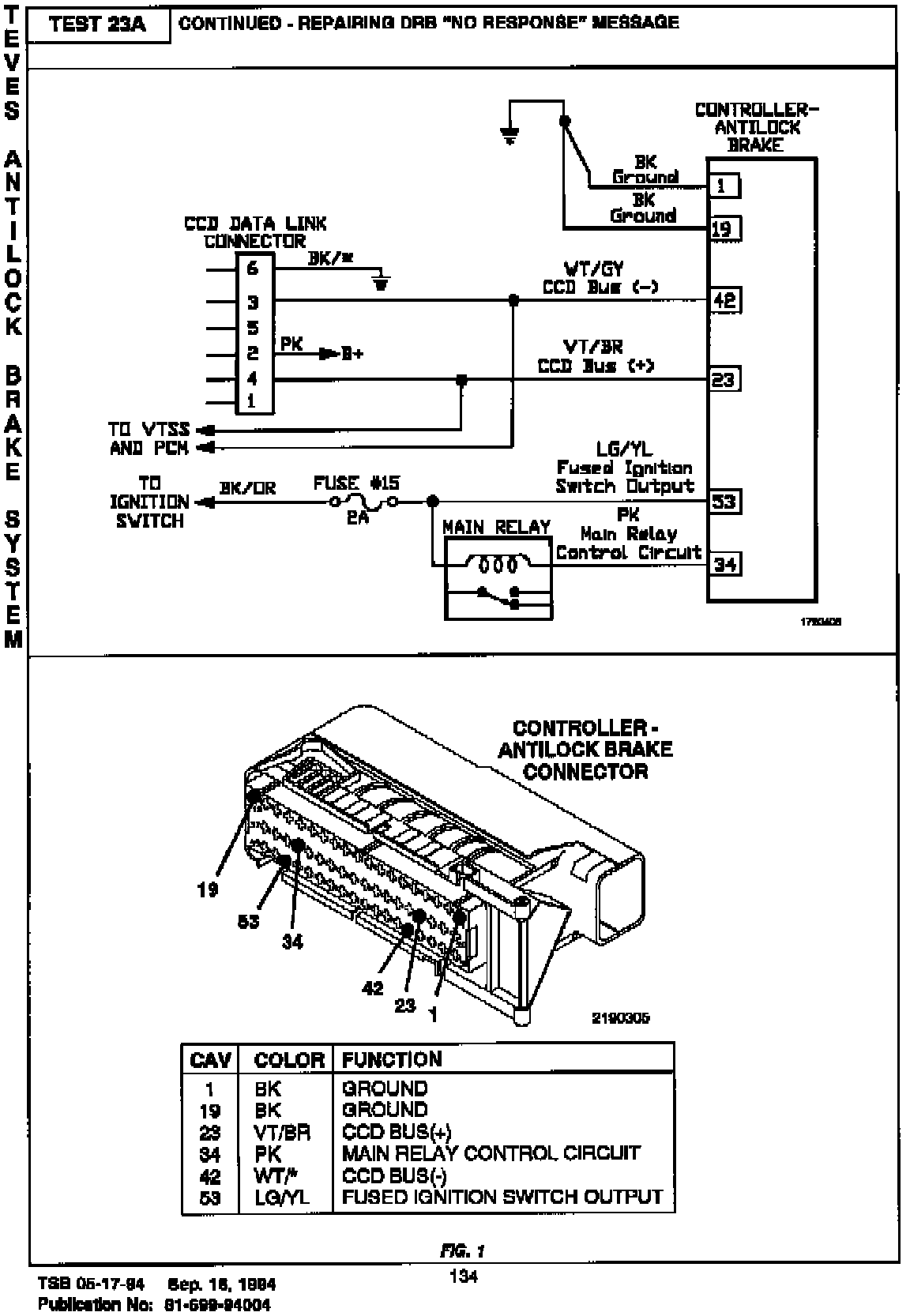

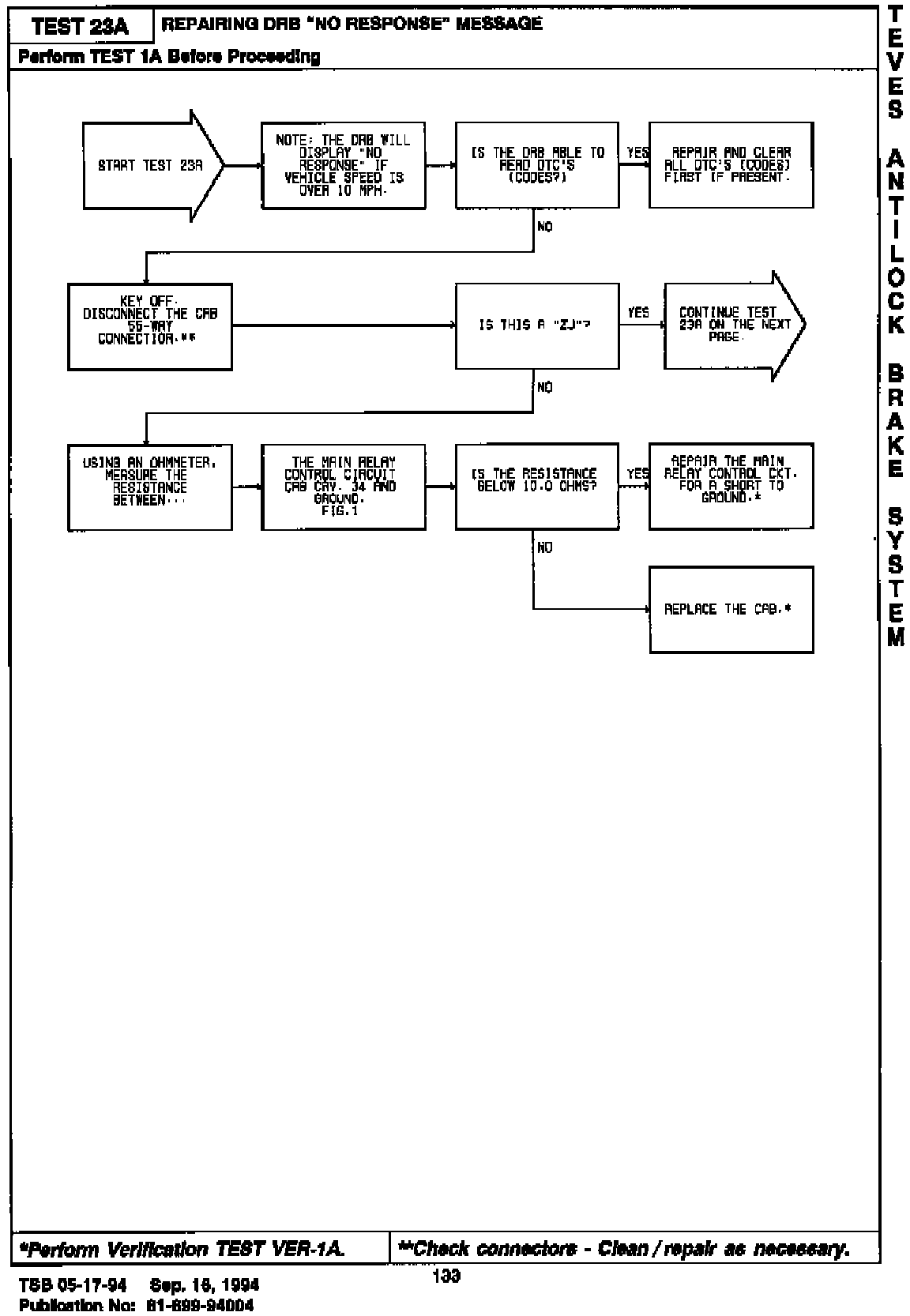

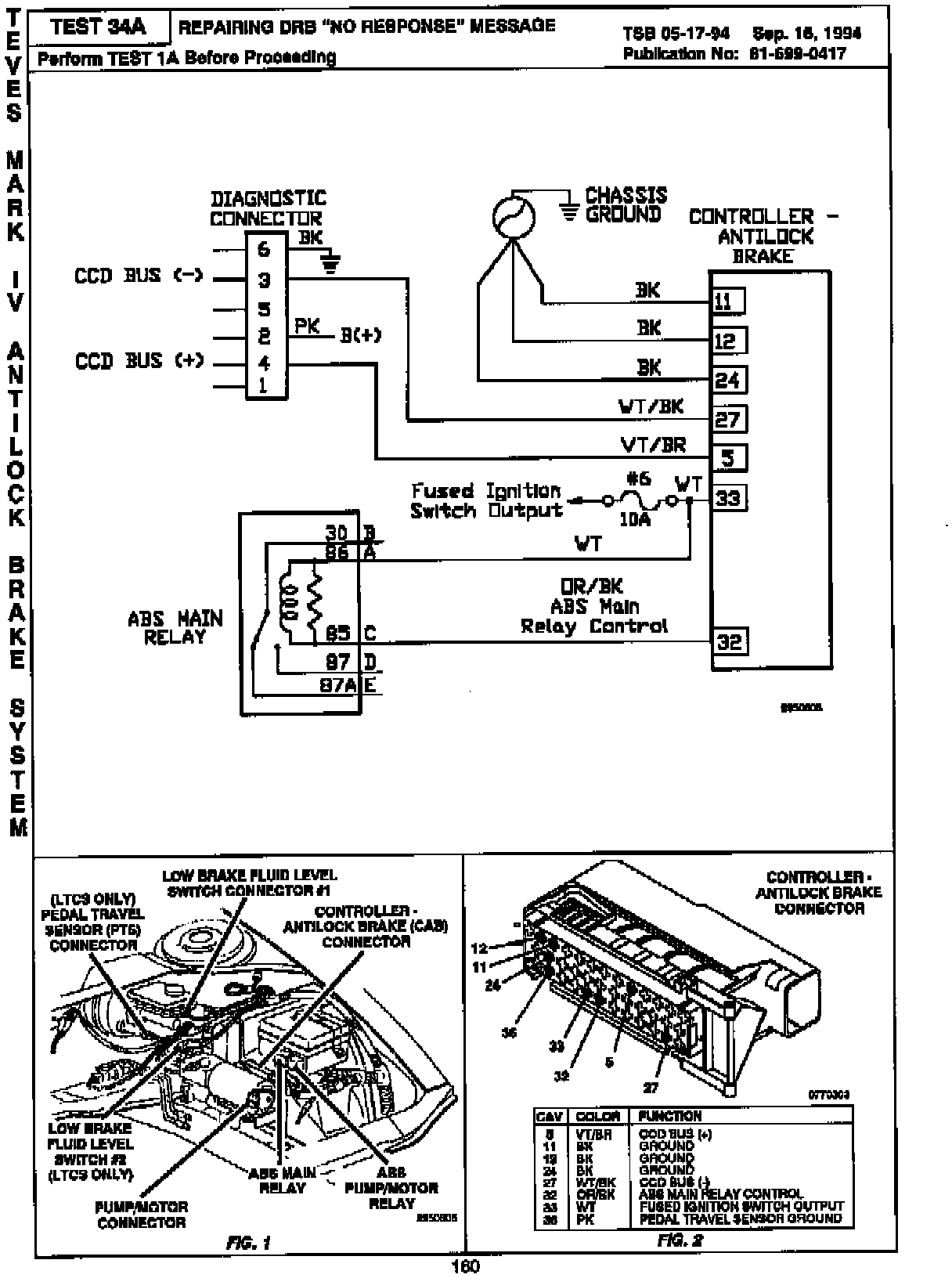

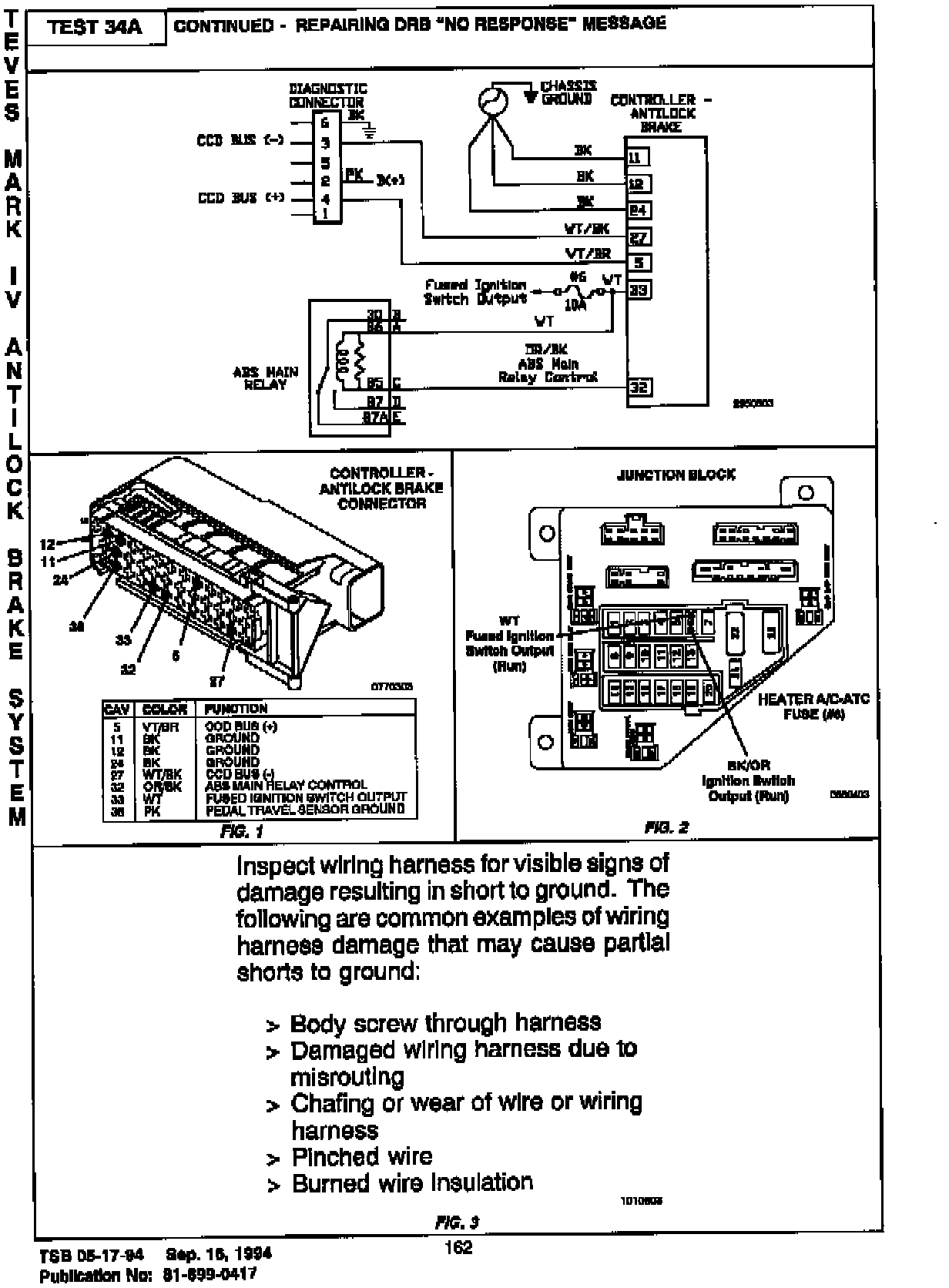

This Technical Service Bulletin contains revised chassis diagnostic manual pages. Please insert the revised diagnostic manual pages in the appropriate Diagnostic Manual.












































NOTE:
THE REVISION PAGES ARE REDUCED IN SIZE TO ACCOMMODATE PLACEMENT OVER THE EXISTING PAGE. TWO SIDED TAPE IS ALSO APPLIED TO MAKE INSERTION INTO THE MANUAL PERMANENT.

POLICY: Information Only
