Seat Belt Height Adjuster: Service and Repair

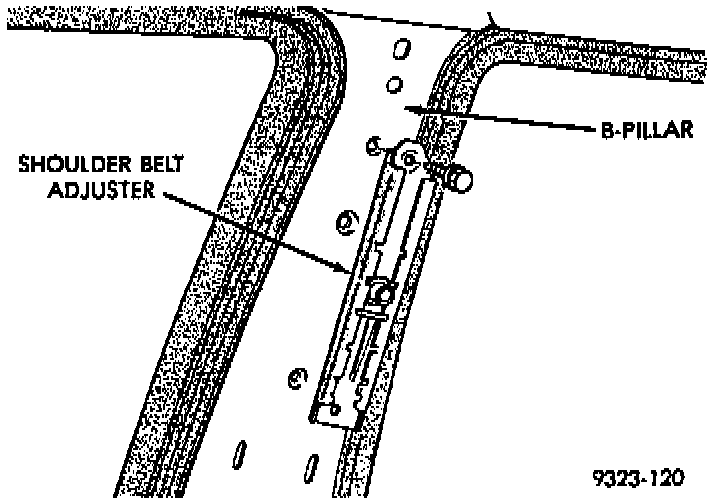

Front Shoulder Belt Adjuster:

FRONT SHOULDER BELT ADJUSTER REMOVAL
1. Remove upper B-pillar trim.
2. Remove bolts holding shoulder belt adjuster to B-pillar.
3. Separate adjuster from B-pillar.

INSTALLATION
1. Place adjuster in position on B-pillar.
2. Install bolts to hold shoulder belt adjuster to B-Pillar.
3. Install upper B-pillar trim.
